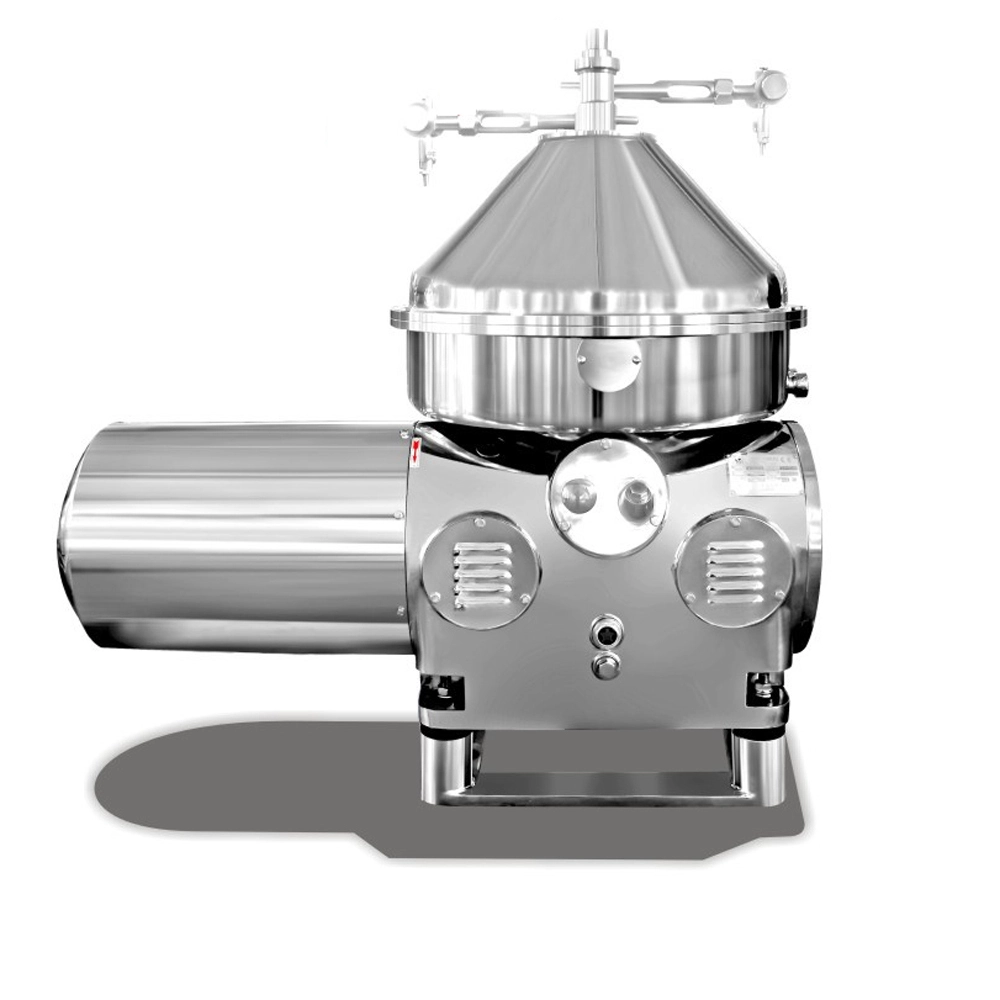

Beverage Fruit Juice Beer Disc Stack Centrifuge
Food Disc Centrifuge Machine For Fruit Juice Beer Beverage Coffee Tea Separation
Product Description
Shenzhou group juice disc centrifuge separator speciallu used for Juices, colorings, beverage separator is mainly used for apples, pears, peaches, sea buckthorns, sweet potatoes, fruits and vegetables processing, also used for beer and malt clarification. It can be used for sparkling wine, wine, juice, beverage and other similar materials concentration, clarification and purification. If processing muddy juice, you can select decanter centrifuge, if processing juice, you need to use the disc centrifuge.
Product features:
1. Machine starts the friction to start off, about six to ten minutes. the machine runs smoothly, low noise
and vibration, the installation path is very easy to operate.
2. The bearings use imported FAG, transducer using Japan brand “ Fuji”, the main strengthen parts of Roller body and Roller cover use 2Cr13,and the other parts of contacted materials such as Disc all use 304L.
3. The Stainless steel cover use SUS304
4. The base use casting steel, coating does the same way as ship bottom.

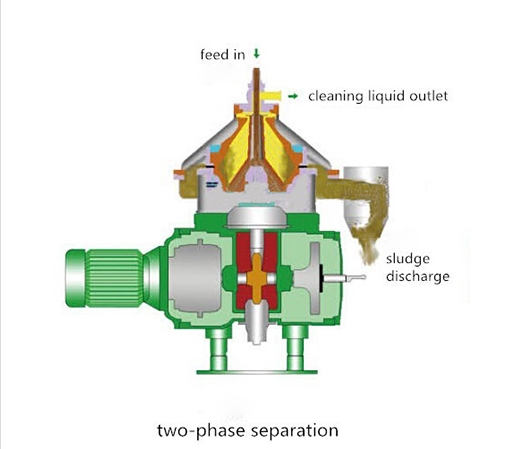

Function:
the disc centrifuge separates solids and one or two liquid phases from each other in one single continuous process, using extremely high
centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less
dense liquid phases form concentric inner layers. The area where these two different liquid phases meet is called the interface position.
This can be easily varied in order to ensure that the separation takes place with maximum efficiency. Inserting special plates (the “disc stack”)
provides additional surface settling area, which contributes to speeding up the separation process dramatically. It is the particular configuration,
shape and design of these plates that make it possible for a disc stack centrifuge to undertake the continuous separation of a wide range of
different solids from either one or two liquids. The concentrated solids phase formed by the particles can be removed continuously,
intermittently or manually, depending on centrifuge type and the amount of solids involved in the specific application.

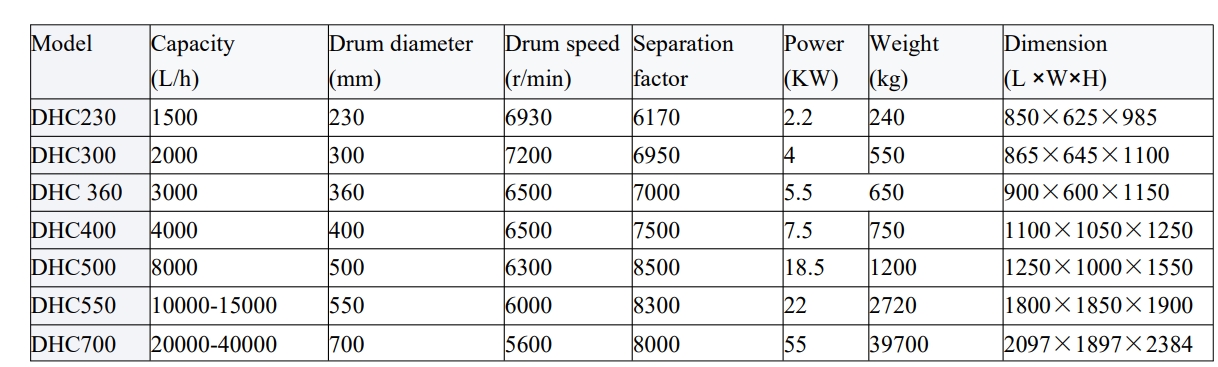

Technical Parameter
