Shenzhou - is09001 centrifuge Tubular centrifuge

The core competitiveness of a product is its features. Our product is made of raw materials that have passed the strict tests carried out by professional staff. The product is made to be of and other superior advantages. Moreover, its appearance design is highly emphasized because it may lead the industry trend.

SEND INQUIRY NOW

Model Number:: GFXY

shipping:: Support Sea freight · Land freight

Customization:: Customized logo (Min. Order: 1 Units) , Customized packaging (Min. Order: 1 Units) , Graphic customization (Min. Order: 1 Units)

SEND INQUIRY NOW

Product Details

Product Description

Main Purposes
The blood separator is one kind of tubular separator. This machine is the improved one on the base of the original separator and through experiment again and again. This kind of machine can be extensively used in separating blood plasma and cell of pig, cow, sheep and chicken etc.

Main Features
The main feature of it is the high yield and the rate of broken blood cell can be reduced to the lowest extent. The contact part between the separator and material is made of stainless steel which can meet the requirement of GMP in medicine making industry.

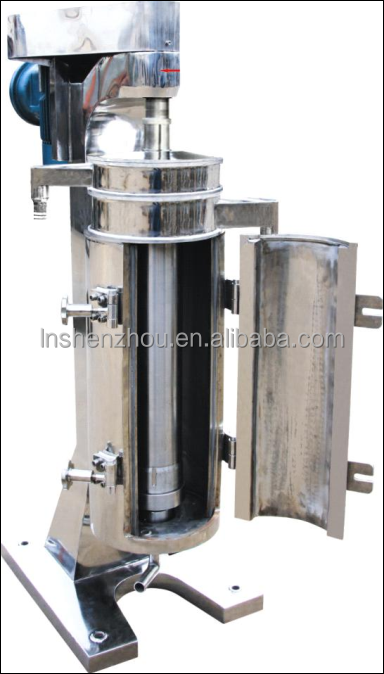

Structure and principle
It is high speed separator. It has better separation. The separator is consisted of main body, driving device, bowl collecting pan and liquid-in bearing seats. The upper of the bowl is flexible main shaft and the lower of it is damp floating. The main shaft is connected with a driven wheel by the coupling seat with the buffer. The power is transmitted to the driven wheel by the motor through the transmission belt and the tensioner to make the bowl rotate around its axis at an over speed and form a strong centrifugal force field. The product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of the bowl and then is separated into different layers according to different density.

GFXY model is a separating equipment where there the liquid phase of large density is formed into outer ring and the liquid phase of small density is shaped into inner ring, to flow to the top of bowl, to be discharged out from their respective liquid outlets.
The micro solids settle on the wall of the bowl and are to be manually dumped after the machine is shut down.

GFXY: It is used for separating various emulsion, especially adaptable for liquid-liquid separation with slight gravity difference and liquid-liquid-solid separation with a little foreign matter, such as separation of various oil and micro powder, extract liquid from plants, separation of plasma and cell.

Specification

Model	GFXY1	GFXY2
Diameter(mm)	105	112
Height (mm)	730	730
Sedimentation volume（L)	6	7
Max speed（r/min)	16800	15800
Max separation factor	15300	16300
Inlet nozzle diameter (mm)	4/6/8	4/6/8
Material inlet pressure (Mpa)	≧0.05	≧0.05
Capacity of fresh blood(L/H)	300-400	400-600
Motor model	3 phase two pole motor	3 phase two pole motor
Motor power (kw)	2.2	3
Machine dimension (mm)	60010001600
Machine weight (kg)	490	510

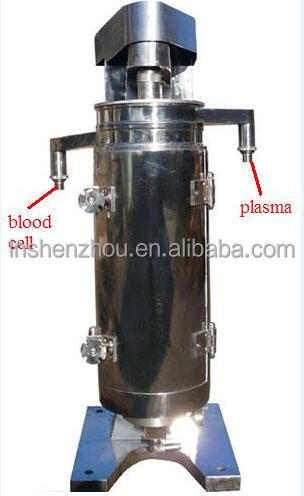

Separation blood show:

Customer’s working Show

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1. What certificates do you have?
We can provide CE, ISO 9001, etc

2. What is the warranty period of the equipment?
Normally 1 year warranty.

3. Can we visit your factory?
Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by
telephone video conference.

4. What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc

5. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.

Basic Information

Year Established

--
Business Type

--
Country / Region

--
Main Industry

--
Main Products

--
Enterprise Legal Person

--
Total Employees

--
Annual Output Value

--
Export Market

--
Cooperated Customers

--

Professional High Speed Liquid-liquid-solid Separation Tubular Bowl Centrifuge Gf45 manufacturers

GF/GQ series tubular bowl centrifugeGF SERIES: used for separating various emulsions, especially for liquid- liquid separation with a small proportion of two-phase and liquid-liquid- solid separation with a small amount of impurities, such as transformer oil, turbine oil,lubricating oil, fuel oil, dye, grease, saponification, all kinds of powder materials, all kinds of oral liquid, all kinds of pharmaceutical liquid, 920 separation; Separation of plasma biological drugs and extraction of plasma from animal blood; Edible oil, CAI pan soak liquid, tea Phenol, soybean concentrated phospholipid refining, oil and water separation and sewagetreatment.GQ SERIES: it is used for separating all kinds of suspension which is difficult to be separated. It is especially suitable forsolid-liquid separation with small concentration, high viscosity, fine solid phase particles and small difference in solid-liquid weight. For example, all kinds of liquid medicine, grapes clarification of sugarwash bitide, malic acid, oral liquid and beancurd root; Coal tar, graphite slag removal; Extraction of various proteins, algal bands and pectin; Refining molasses; Blood separation, vaccine mycelium, each settlement of seed glucose; paint, dye, various resins, rubber solution purification.
GF Tubular Centrifuge – High-Speed Separation Device

GF Tubular Centrifuge – High-Speed Separation DeviceA high-performance GF Tubular Centrifuge designed for efficient separation of various substances, guaranteeing reliable and precise results across diverse applications.Key Aspects:Dynamic performance offering high-speed and efficient separationDurable and reliable stainless steel constructionPresents a compact design aiding space efficiencyPurposeful in biotechnology research, pharmaceutical production, and the chemical industry.Improve your separation processes with the superior functioning GF Tubular Centrifuge, tailored to meet your unique requirements.
Best High Speed GQ Biological Enzyme Tubular Centrifuge with CE Certification Supplier

High Speed GQ Biological Enzyme Tubular Centrifuge with CE CertificationTubular centrifuges have GF, GQ two series, the typical such as GQ series clarify type Tubular centrifuges, GF series liquidand liquid separation type Tubular centrifuges.It is high speed separator. It has better separation. Strong in separation, simple in structure, convenient in operation and maintenance, low in consuming power, small in ground, high in speed ,strong in separation factor, small in noise, adaptive in material with high or low temperature.
Intro to GQ High Speed Yeast Bacteria Centrifuge Separator Tubular Centrifuge Shenzhou

Tubular centrifuge has high performance of separate factor, high capacity, and account for small area and easy to handle, it has been widely used in pharmaceutical, health food, drinks, chemical industriesto separate the liquid-solid or liquid-liquid-solid materials. It is an ideal centrifuge take advantage of centrifugal methods, the minimum granules is 1 um, which is suitable for distill, condense and clarify the material has small gravity difference, small and few solid granules and high erosion products.There is two types, for GQ tubular centrifuge which is used for the clarification.
