Product Description of Whey Industry centrifuge separator

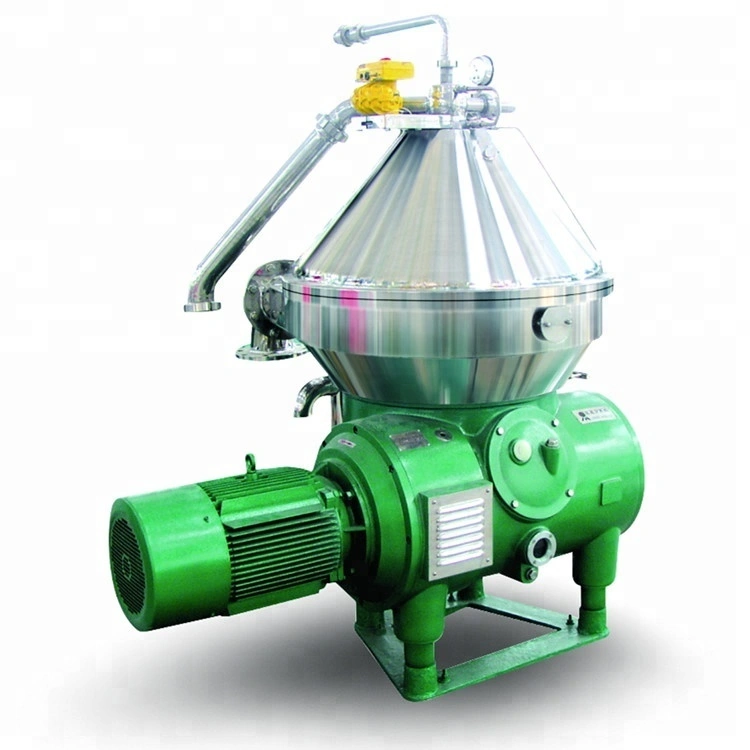

Whey Industry centrifuge separator

Whey is a liquid which is obtained through straining process upon clotting of cheese in cheese production process. It contains lactose, minerals, vitamins, proteins and low quantities of milk fat. Whey powder: It is a product in form of powder obtained from whey through several processes that whey undergoes. It is used in many different fields in the food industry.

Whey: It is used as raw material in many sectors such as food, medicine and pharmaceuticals, agriculture and livestock breeding, sports nutrition, cosmetics.

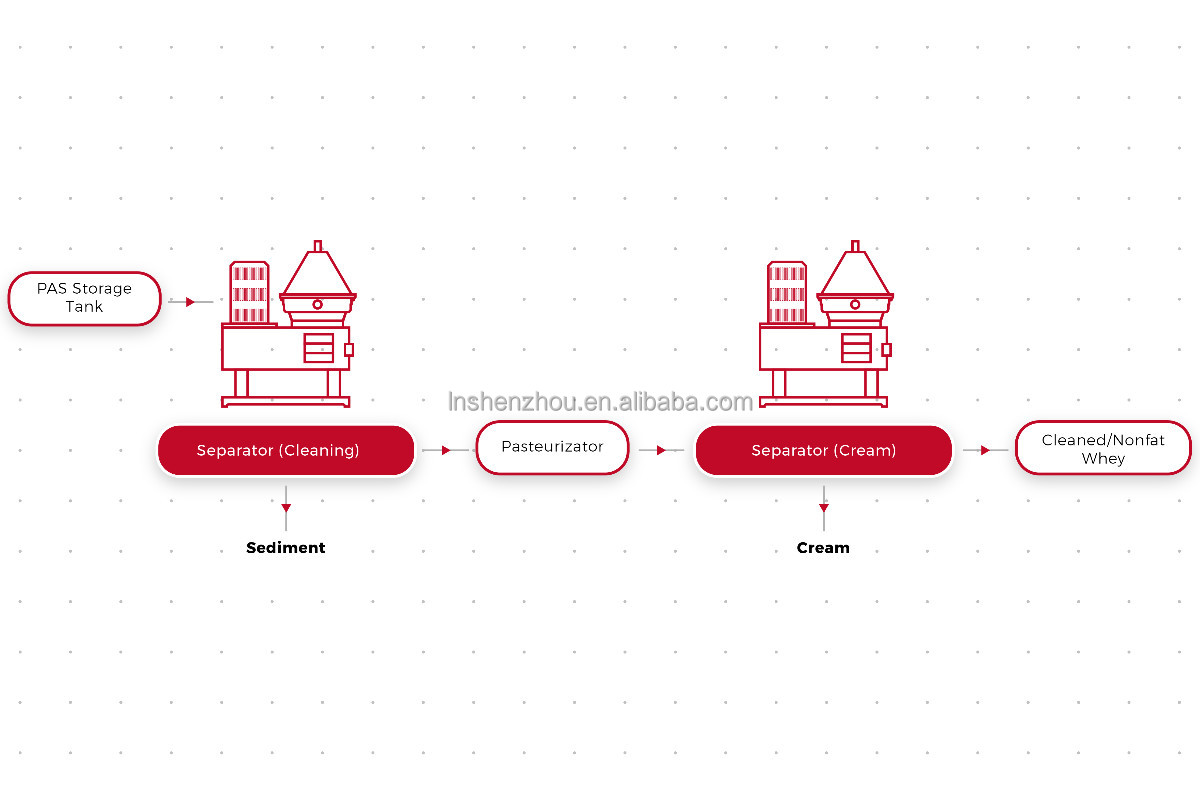

Procss of Whey Industry centrifuge separator

Cleaning Of Whey

Purpose: Removal of foreign matters, cheese and curd sediments from the whey. An efficient cleaning process also increases the fat separation performance. Process: They whey is cleared from impurities upon delivery to the plant using DHSZ series separator.
Whey which is ready for processing is taken to storage tanks.

Purpose: It is the process of separating fat from whey. Low-fat whey is further processed for separation of mineral, lactose and other constituents. Efficiency of the cream separator is highly important for problem free operation of the filtration systems located at the downstream of the process. Process: Heated to the temperature of 45-55°C during pasteurization, the whey is ran through CREAM separator and separated into cream and low-fat whey powder. SHENZHOU Centrifuge Technologies can reduce the fat rate of the whey down to < 0.05% at the separator outlet. Separator's cream output fat ratio is adjustable in the range of 40-65%.
Low-fat whey is transferred to the following process for further processing.

Shenzhou - Whey Industry centrifuge separator Centrifuge & Separator 2

Main Structure

Shenzhou - Whey Industry centrifuge separator Centrifuge & Separator 3

Powerful Motor provide power through the thermal coupling to drive drum in high-speed rotating around the main axis. And the liquid material is carried by feeding pipe located in the upper center into the bottom of the drum, and then led in the porthole below the disc and driven to the drum wall. Under centrifugal force, solid- liquid-liquid do the below motion to complete thorough separation:solid phrase, which is heavier than liquid, would sink into the inner wall of the drum for sediment formation; light liquid flow in centripetal pump, and be discharged by liquid outlet; The heavy liquid tends to the drum wall along the cone inside the disc, and then flows upward through through the heavy liquid concentric pump to be discharge from the outlet.

Due to the double-conical design of the inner cavity of the drum, it can compress the slag and increase its concentration.
Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.
In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.
The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).

This special design separator has the full automatic control box which used for safety protection and equips and also been equipped with advanced automatic vibration tester which can view vibrating value at any time. We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.

1. Continuous feeding

2. High separation factor

3. Automatic residue discharging

4. Concise bowl design without frequent washing

5. Hydraulic coupling driving with longer service

6. PLC system automatic control

Specification

Model	Treatment capacity (L/H)	Inlet Pressure (Mpa)	Outlet pressure (Mpa)	Motor power (Kw)	Weight (Kg)	Outline dimension (mm)
DHSZ360	1200-2500	0.05	0.1-0.25	7.5	1280	150011501500
DHSZ470	2500-7000	0.05	0.1-0.25	15	1880	180012001800
DHSZ550A	5000-10000	0.05	0.1-0.25	18.5	2200	185015502050
DHSZ550E	6000-15000	0.05	0.1-0.25	22	2200	185015502050
DHSZ700	15000-30000	0.1	0.2	30	3300	210016502300

Advantage

1. Operating stability

2. Completely sealed up of the inlet and outlet system

3. Perfect separating affection

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!

Packing & Delivery

wooden case

Our philosophies of development
* Based on continuous strengthen oursleves with full of innovative ideas
* 5% of sales revenue is allocated into intensive research
* 8% of workforce is allocated into development activity
* Plenty of patent and good quality new products

FAQ

1. who are we?
We are based in Liaoning, China, start from 1980 sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine

4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian

Our service

1. Professional Engineer wil recommend you the most suitable model according to your requirement.

2. Supply reference process flow chart .

3. Supply on-site installation and operation test

4. Integration for control system and process

5. Customized size and structure

6. 12Months guarantee period from machine arriving date.

7. Sufficient spare parts in stock are available .

8. Technicians are availabled for overseas service.

9. 24 hours technical consultation .

10. The customer could get trained by our experienced tecnician.

11. Routine tracing will be done timely.

12. Guide you do the normal maintenance.

13. Suggestions and any comments &reflection from customer would be treated in priority.

14. Markting team will visiting if you need.
