What are the application areas of tubular centrifuges?

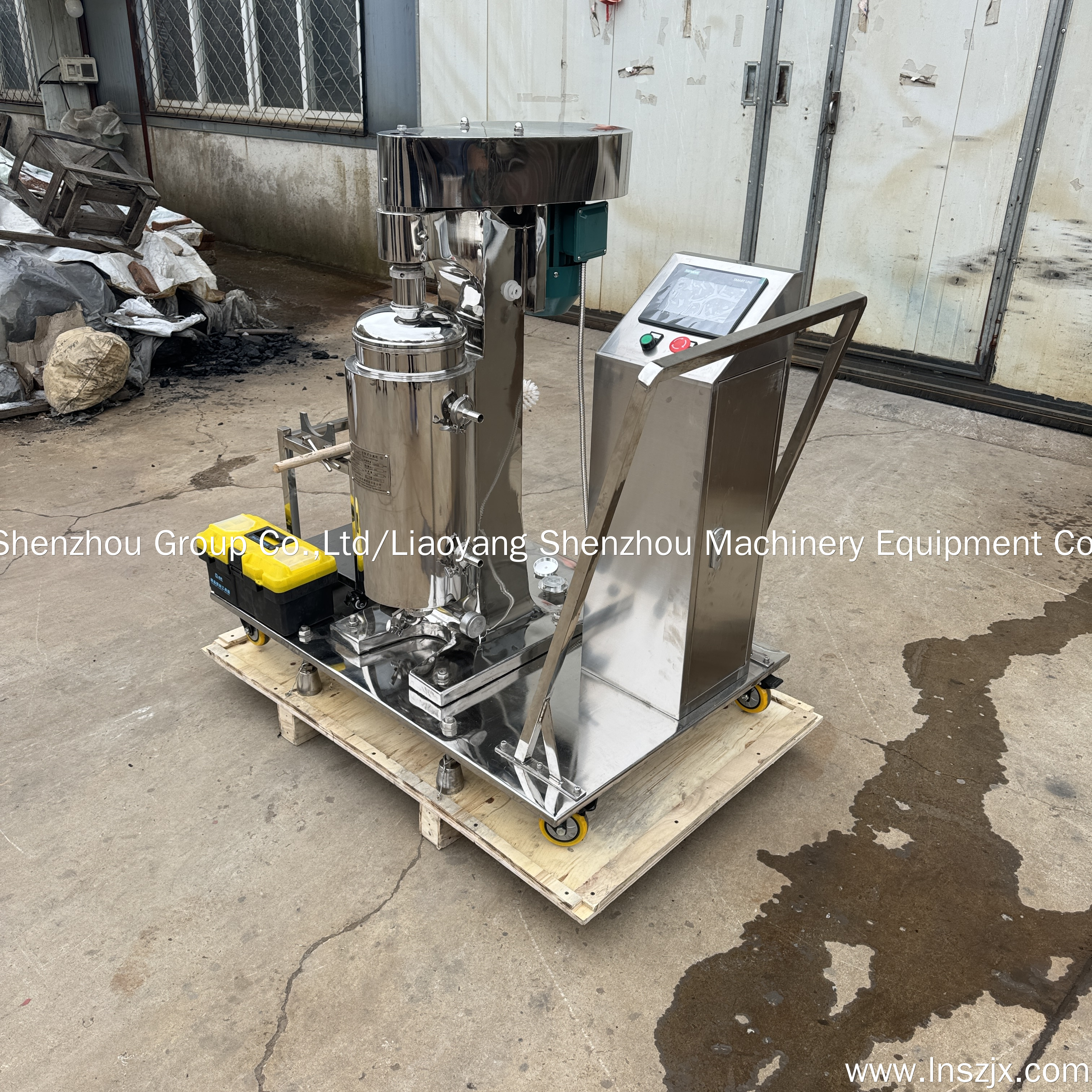

A tube centrifuge consists of a body, transmission device, drum, collection plate, and inlet bearing seat. The upper part of the drum is a flexible spindle, and the lower part is a damping floating bearing. The main shaft is connected to the passive wheels through a connecting seat buffer. The motor transmits power to the driven wheel through a conveyor belt and tension wheel, causing the drum to rotate at high speed around its own axis, forming a strong centrifugal force field. The material is injected from the bottom inlet, and centrifugal force forces the liquid to flow upward along the inner wall of the drum, resulting in layering due to the density differences of different components of the liquid. Tube centrifuge is currently an ideal centrifugal separation equipment. Tube centrifuge is mainly used for liquid-solid, liquid-liquid or liquid-liquid solid three-phase separation. Its smallest separation particle size is 1 micron, which is particularly suitable for extraction, concentration, and clarification of liquid-solid phase differences, small solid phase particle size, low content, and strong corrosiveness of the medium.
Extraction and Separation in the Animal and Plant Industry: The separation process directly affects the quality of the final products of traditional Chinese medicine (including plant extraction and animal extraction). Some polysaccharides, proteins, pectin, saponins, and insoluble liquid impurities cannot be removed by filtration, and fine particles remaining during the extraction process can be separated using a tubular separator.
Food industry: vinegar, seasoning, oil refining, fruit juice beverage fiber, pectin, insoluble protein, residual fruit pulp and other impurities removal, chicken essence separation, crystal salt dehalogenation, sugar honey removal, health wine impurity removal, yeast separation, etc.
Blood products: can be used for plasma and blood cell separation in humans, chickens, pigs, cows, sheep, and other animals. Can be used to prepare plasma (blood cell) protein powder, albumin, hemoglobin, thrombin, superoxide dismutase (SOD), etc.
Biopharmaceuticals: Tube centrifuges are used for vaccine preparation and bacterial isolation. For example, rabies vaccine, 100 strain fragmented vaccine, pneumonia vaccine, Escherichia coli, Bacillus subtilis, lactic acid bacteria, etc.
