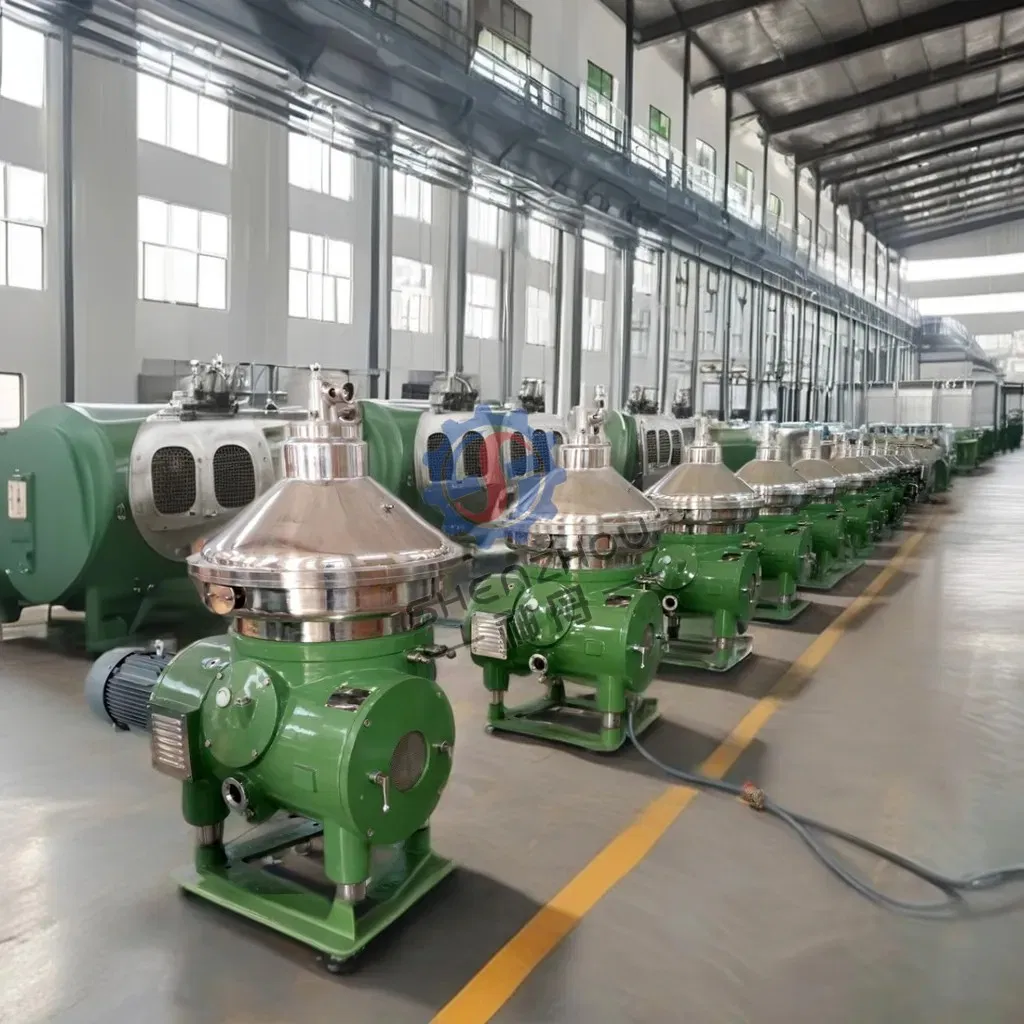

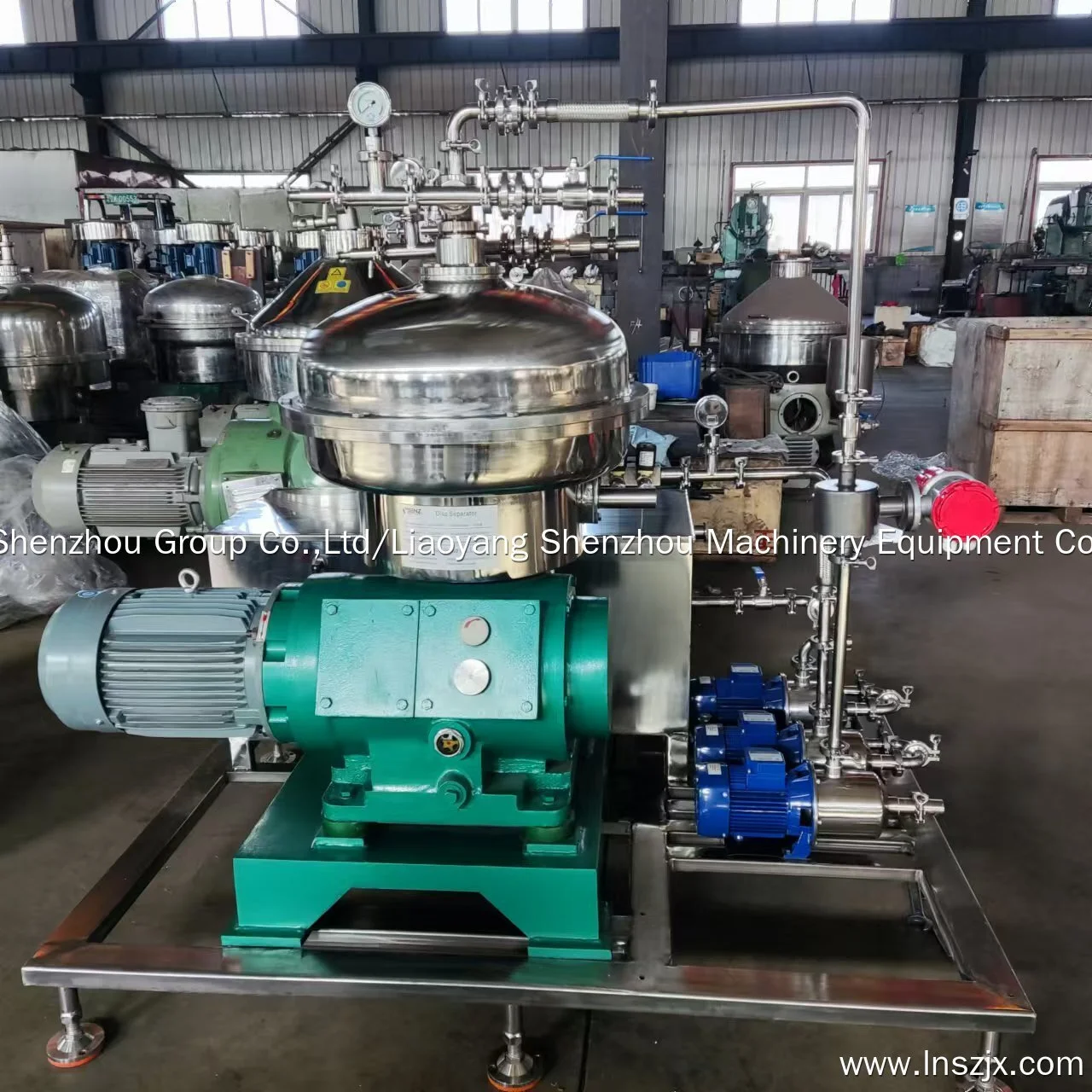

Automatic Separating Disc Centrifuge for Marine Algae/Seaweed Extraction1
Algae Industry
With the fast growth of the population and industrialization demand for food and various raw materials is increasing constantly. R&D studies on production of a number of raw materials is gaining speed for the sake of satisfying the demand as a result of its continuous increase. In the result of the studies that are carried out "Microalgae" have become a significant raw material source for a number of industries.
Algae are marine creatures which can survive and grow in many other environments. It is a very important raw material used in feeding of marine animals such as shrimp, fish larvae, rotifer. It is extensively used for production of marine animal feed production and as soil enriching fertilizer in agriculture. It is also used in energy, chemistry, cosmetics, pharmaceutical chemistry, waste treatment, tooth care and alcohol industry.
Due to fast development of agriculture and fast increase in production demand, yield of agricultural areas is desired to be at utmost level. Microalgae improve the soil quality and fertility significantly.
Customer Benefits

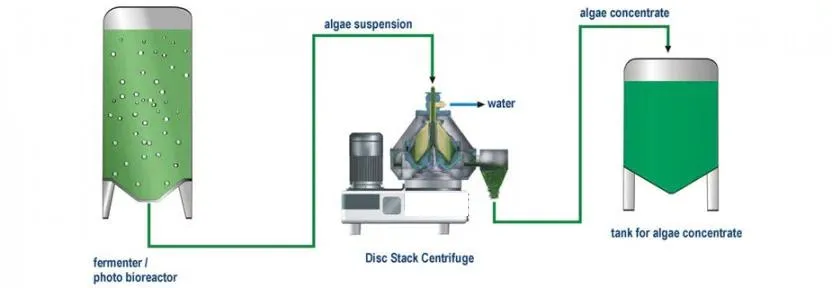

Algae harvesting with the Shenzhou Separator
The algae suspension flows from the photobioreactor directly into the Shenzhou Separator. Then the distributor gently accelerates the suspension to full speed. Due to the high centrifugal force of up to 12,000 g, the separator dewaters the algae suspension producing an algae concentrate with creamy consistency. Thus making the algae concentrate ideal for further processing. Small to medium-sized plant benefit in particular from the low investment and low operating costs of the single-stage process.
up to 25 percent lower investment costs
lower costs for further processing or drying due to a very high-quality algae concentrate
suitable for medium and small businesses
Algae concentrate after processing with the separator
Centrifuge machine Main Parameter:
Model | Bowl Speed(rpm) | Capacity(Per Hour) | Running Load(Watts) | Dimensions, Overall (mm) | ||
Width | Front-to-Back | Height | ||||
250 | 8500 | 500-800 | 4.0 | 850 | 850 | 1200 |
270 | 7300 | 1000 | 4.0 | 950 | 950 | 1200 |
300 | 7150 | 1500 | 5.5 | 1025 | 1300 | 1300 |
360 | 7056 | 2000-3000 | 7.5 | 1500 | 1100 | 1500 |
400 | 7038 | 3000 | 7.5 | 1500 | 1100 | 1550 |
500 | 6600 | 5000-8000 | 15.5 | 1772 | 1500 | 1855 |
550 | 6200 | 8000-15000 | 18.5 | 1970 | 1560 | 1970 |
730 | 4900 | 50000-80000 | 55.0 | 2580 | 1980 | 2340 |

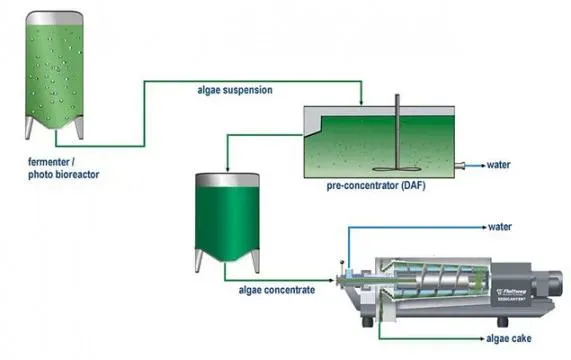

Algae harvesting with the Decanter centrifuge
Algae harvesting with the decanter centrifuge is a two-stage process that is ideal for larger operations: The algae suspension from the photobioreactor is initially pre-concentrated. The algae concentrate then flows on into the Shenzhou decanter centrifuge, where the cell harvesting takes place. The decanter centrifuge dewaters the algae concentrate to a compact cake with 22 to 25 percent dry substance content. Only this special decanter centrifuge is capable of thickening the fine and soft algae cells in such an efficient way.
The pre-concentration in the two-stage process saves energy when compared with single-stage processes. The more water that is separated beforehand, the less the centrifuge has to separate.
up to 60 percent lower operating costs (e.g. energy)
up to 25 percent lower investment costs
22 to 25 percent high dry solids content for optimum further processing
