Commercial Automatic Onion Peeling Machine with Skin Peeler and Root Cutting

Introduction of Onion Peeling Machine

Onion Root Cutting -- Elevating -- Onion peeling -- Onion slicing-- Washing-- Drying-- Freezing
The onion peeling machine used to peel onion,it has high quality,high capacity,very easy to use, and clean. Onions peeling
machine is easy to operate with high output. it adopts to pneumatic principle which is dry and automatic digital control.Onion surface is without injury. Onions and onion skin separated automatically. The machine is safe and health which is domestic most advanced onion peeling equipment. The Onion peeling machine adopts pneumatic principle, it can remove automatically the shell of the onion, and there is no damage at all. The peeling rate can reached 95%. It is equipped with automatic control device and automatic feeding device. The onion clove can separate automatically without any damage,superior quality. It is very popular in the market. This machine can wash and peel onion. It is suitable for starch factory, dehydrated vegetable factory, big refectory, restaurant etc. Low breaking rate, no pollution, easy operation, low failure rate and high efficiency assures that it is an ideal specialized equipment.

Inquiry

Write a Review

Equipment Introduction

Commercial Automatic Onion Peeling Machine with Skin Peeler and Root Cutting 2

Storage Hopper

This equipment can feed 800 kg of raw materials at one time without damaging the raw materials. The raw materials will be accurately and continuously delivered to the rising trough, which can reduce the fatigue of workers during operation, effectively utilize the labor time, and ensure the stability of production output.

Skin Incision Machine

1. This equipment is suitable for making incisions on the skin of onions before peeling. With a user-friendly design, under

different requirements, the equipment can adjust the incision depth on the skin to meet various production needs.

2. After being processed by this equipment, the subsequent peeling effect can be effectively improved, and it can assist in increasing the success rate of peeling.

Peeling Machine

1. This equipment is suitable for peeling onions from different seasons, regions and varieties.

2. The intensity of the high-pressure airflow can be adjusted, and it simulates the manual peeling mode. This not only saves labor but also significantly increases the production capacity within a unit of time.

3. The special air rotation structure of the equipment can effectively concentrate the gas, which saves more airflow compared with the peeling method using a manual air gun.

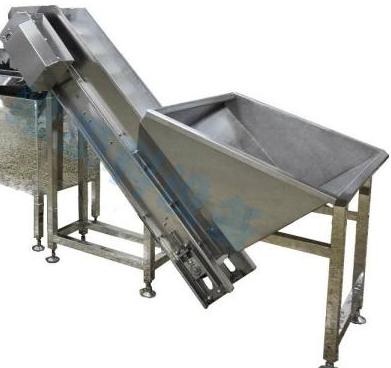

Elevator

Through the design of the baffle, the non-damaging and average feeding amount is increased to 1-2 tons per hour and sent to the

end-cutting machine. The speed is variable frequency adjustable (0-50Hz).

Commercial Automatic Onion Peeling Machine with Skin Peeler and Root Cutting 5

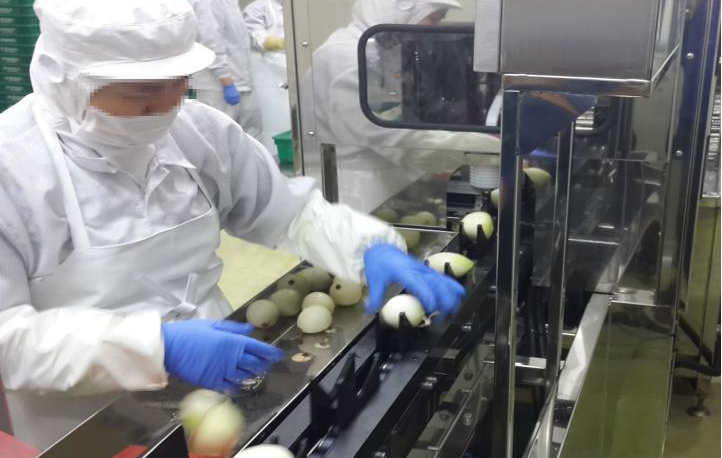

Commercial Automatic Onion Peeling Machine with Skin Peeler and Root Cutting 6

Onion Head and Tail Cutting Machine

It adopts a high-speed disc cutting system and an ergonomic frame design. The self-adaptive left-right symmetrical positioning
device will not deviate. Onions of different sizes (45-150mm) can be continuously cut at both ends. The cutting size of the head
and tail can be adjusted from 0 to 20mm. The production capacity is 1-1.5 tons per hour, and there is a separate design for the
waste discharge channel.

Product Paramenters

Model	WYLD-400	WYLD-600	WYLD-800
Power	1.5kw, 380V/415V	1.5kw, 380V/415V	380V, 50HZ
Feeding Method	Single Conveyor Feeding	Double Conveyor Feeding Method	\
Peeling Rate	70-80pcs/minute	70-80pcs/minute	70-80pcs/min
Capacity	700-1000kg/h	1500-2000kg/h	1500-2000kg
Peeling Method	High Press Gas Peeling Method	High Press Gas Peeling Method	Knife
Dimension	23008001800mm	230010001800mm	17008051220mm
Weight	240kg	280kg	156kg

Details Pictures:

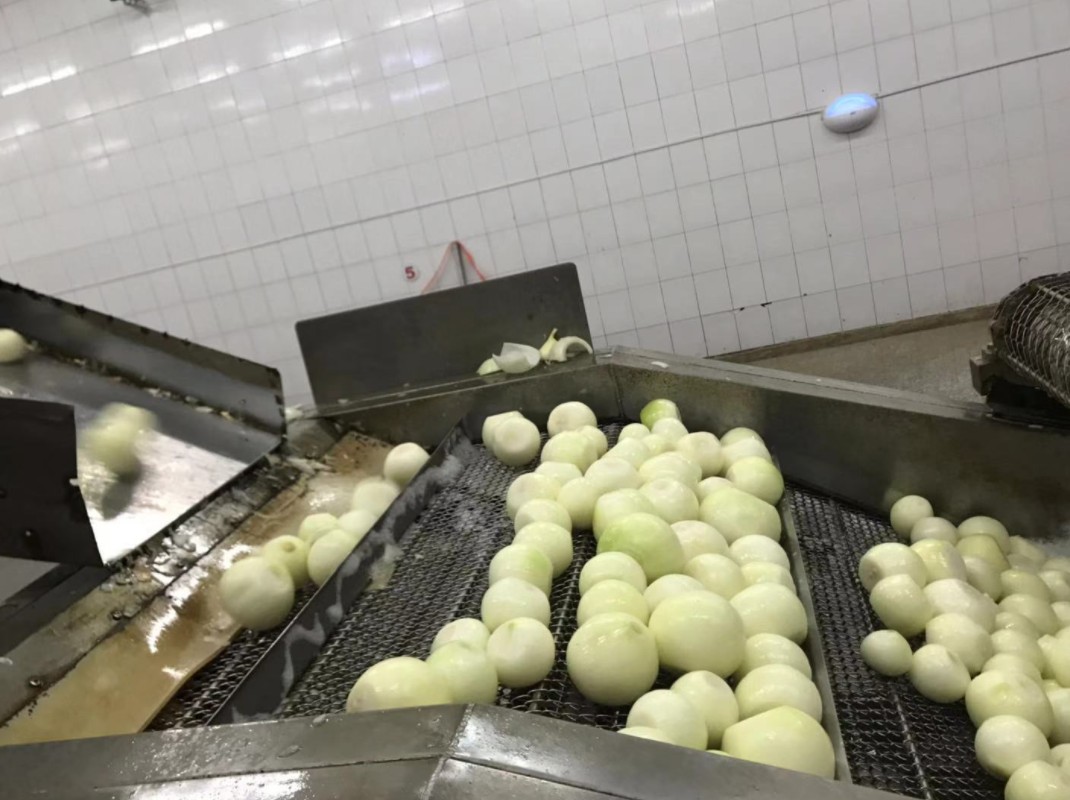

Commercial Automatic Onion Peeling Machine with Skin Peeler and Root Cutting 7

Commercial Automatic Onion Peeling Machine with Skin Peeler and Root Cutting 8

Commercial Automatic Onion Peeling Machine with Skin Peeler and Root Cutting 9

Onion Peeling Machine Line Features:

1. Line is divided into three levels which the output is 1T/h,2T/h.3T/h and so on.

2. Automatic assembly line : from classification, peeling, onion root cutting, cleaning, slicing, drying the whole process of water operation, smooth operation work continuously uninterrupted.

3. According to the customer's requirements,research and customize assembly line equipment.
