Extra Virgin Avocado Oil Production Line

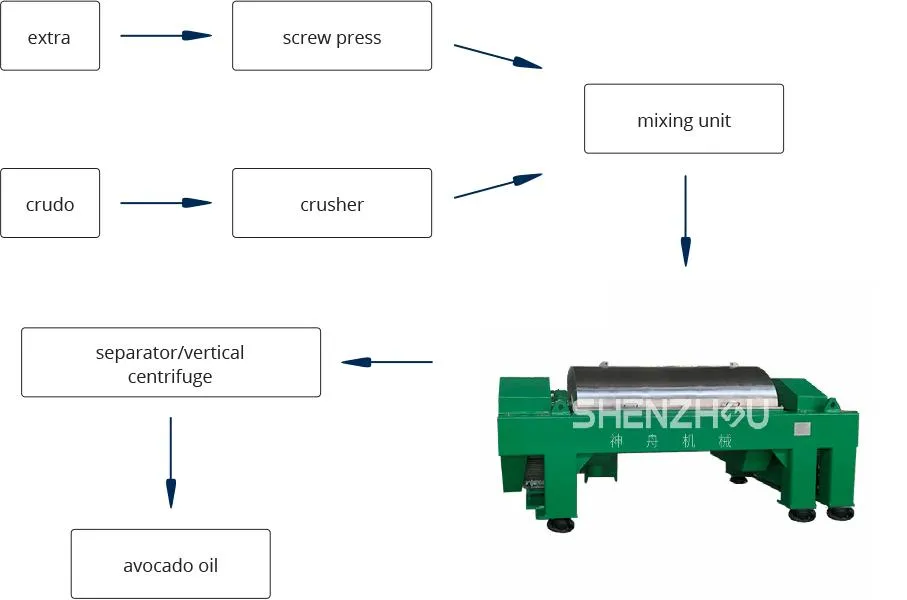

Extra Virgin Avocado Oil Production Line is designed specially for avocado oil extraction from the ready paste by 2-phase or 3-phase separation. Together with our polishing separator,customer can produce the extra virgin avocado oil. Generally,the whole system consists of the following 6 steps 1.- avocado fruits sorting system 2.- avocado fruits washing and seed/skin removal system 3.- avocado paste malaxing system 4.- avocado oil extraction system 5.- avocado oil purification system 6.- avocado oil storage and bottling system.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

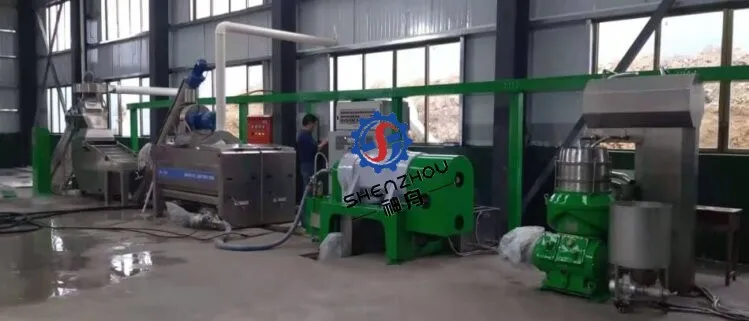

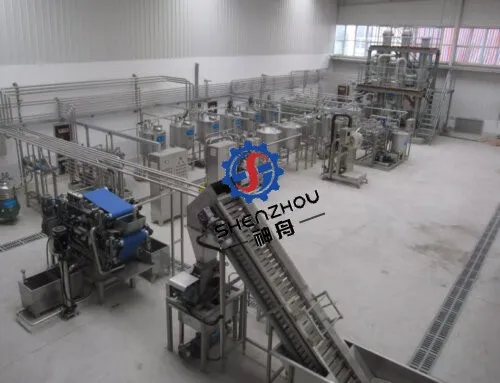

Extra Virgin Avocado Oil Production Line
1.Washing Process
Water jet washing and water showering system can fulfill 2 times washing to remove the dust from the avocado fruit. The belt conveyor also work as a water drain system to collect the water.
2.Seed Removing Process
2.Seed Removing Process
After washing,the avocado fruits will be processed by destoner where the seeds & skin will be separated from the pulp. The destoner is equipped with water adding function and screw pump.
3.Pulp Malaxing Process
After destoner,the avocado pulp will be pumped into the malaxer for further process. The oil drops will be released and merge into large drops which can be separated easily by centrifuge.
4.Centrifuge Extraction Process
After malaxing,the decanter centrifuge will be followd to separate the oil from pomace and water.During this process, 2 phase and 3 phase decanter avaible.
5.Oil Purification Process
After decanter,the oil still contains little moisure and impurities. Here a vertical disc separator is used to saparate the impurities for final purified avocado oil.
6.Control system
The control cabinet is used to control all the equipment of the whole line.The main point is speed,temperature,time, electric current,alarm and ON/OFF etc.
![Avocado Cooking Oil Extractor Decanter Centrifuge / Avocado Oil Production Line]()
![Avocado Cooking Oil Extractor Decanter Centrifuge / Avocado Oil Production Line]()
![Avocado Cooking Oil Extractor Decanter Centrifuge / Avocado Oil Production Line]()
![Avocado Cooking Oil Extractor Decanter Centrifuge / Avocado Oil Production Line]()
Different Models for Choice
(The following capacity is based on the Olive fruits input)
SENZ---500 | SENZ---1000 | SENZ---2000 | SENZ---3000 | SENZ---5000 | SENZ---8000 |
500KG/H | 1000KG/H | 2000KG/H | 3000KG/H | 5000KG/H | 8000KG/H |
