Shenzhou DDGS Dewatering decanter Centrifuge for Use in DDGS Separation Process DDGS Dewatering decanter Centrifuge
With the introduction of mandatory measures on the time limit of sewage companies, the management of DDGS in the brewing industry has become a top priority for many manufacturers. At present, the advantages and disadvantages of solid-liquid separation of wine granules play a very important role in the Cray treatment mode. Adopt backward methods such as natural sedimentation filtration and manual bag-making extrusion, which covers a large area, large labor, low efficiency, poor working environment, and difficult to stabilize quality. The application of the Shenzhou DDGS dewatering centrifuge in the brewery will effectively solve this problem.
Product Description
DDGS Dewatering decanter Centrifuge
Corn, wood, rice, wheat starch, etc. are the most widely used raw materials in the alcohol industry. More and more alcohol producers after fermentation and distillation use a centrifuge to remove water, which solves the issues in large-scale conventional filtration equipment, ranging from large land occupation to high labor intensity, and high later-stage maintenance cost. At the same time, by virtue of high efficiency, stability and environmental protection, it provides guarantee for efficient dehydration, DDGS quality, and subsequent process energy conservation. When corn and cassava are used as raw materials, the high sand content in the acid solution is an important factor affecting the stability and service life of the decanter. The whole ZK ddgs dewatering decanter is equipped with high-performance wear-resistant protective materials to greatly extends the maintenance cycle and ensure annual normal running time.

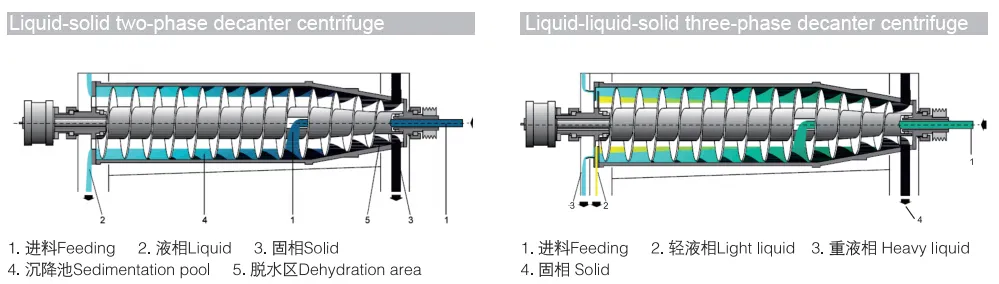

How the Decanter Process Works:
* 1: The slurry is brought into the centrifuge through an intake pipe and onto a conveyor.
* 2: Utilizing an internal feed compartment, the conveyor moves the slurry through a nozzle into the bowl.
* 3: The bowl rotates at high speeds to induce centrifugal forces.
* 4: High speed rotation separates the solid material from the liquid in a matter of seconds.
* 5: The conveyor delivers the solid material upwards where it is discharged through a nozzle.
* 6: The solid material removed, the purified liquid is released from a separate output. The ability to purify a liquid makes
decanter centrifuges ideal for waste water treatment facilities. However, there are variety of industries for which such centrifuges play an important role. Similar to other decanter equipment, centrifuges are simple to install and do not require a foundation to build upon. Their efficiency saves time and materials and is an essential component for many blue collar industries.

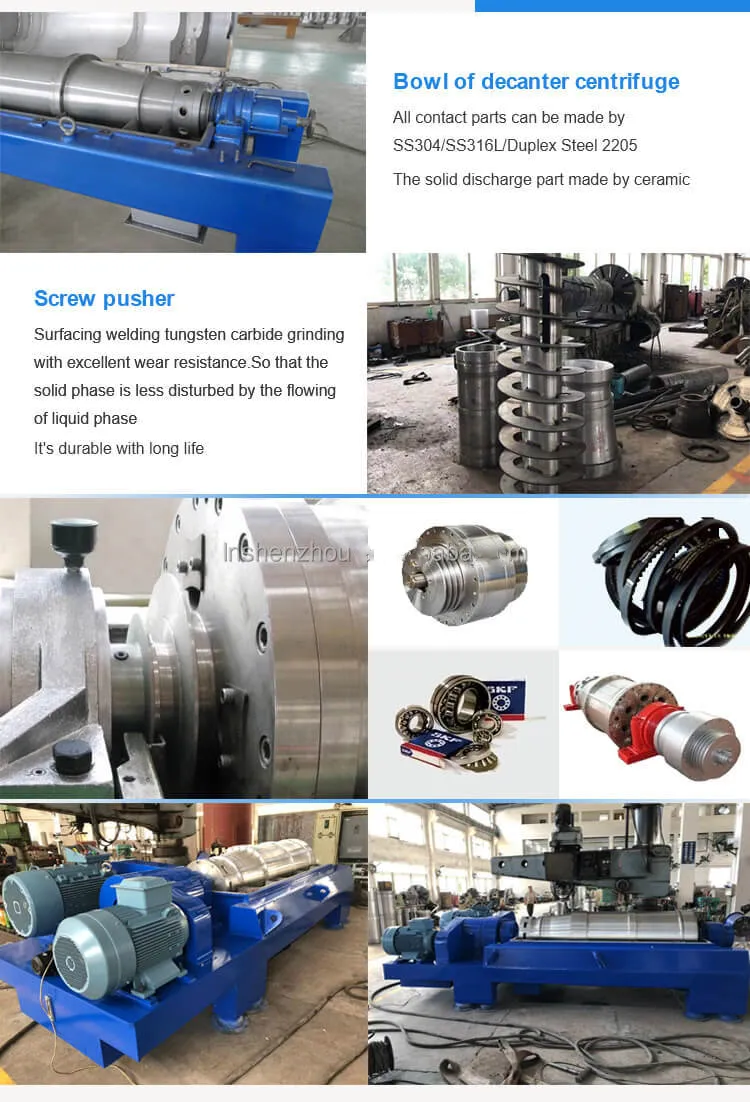

Details
Reference standard
DDGS Separation Centrifuge Parameters
Model | Diameter(mm) | Lenght(mm) | Max speed | L/D ratio | G-force | Capacity(m3/h) | Main motor power(Kw) | Weight(kg) | Dimension(mm) |
LW250*1000 | 250 | 1000 | 5000 | 4 | 2722 | 0.5-5 | 7.5 | 950 | 2120*1250*680 |
LW300*900 | 300 | 900 | 4200 | 3 | 2964 | 1-6 | 11 | 1160 | 2150*1300*900 |
LW300*1200 | 300 | 1200 | 4000 | 4 | 2784 | 2-6 | 11 | 1350 | 2450*1300*900 |
LW355*1160 | 355 | 1160 | 3600 | 3.3 | 2576 | 2-8 | 15 | 1400 | 2470*1350*830 |
LW355*1460 | 355 | 1460 | 3600 | 4 | 2576 | 2-10 | 15 | 1800 | 2750*1350*830 |
LW400*1200 | 400 | 1200 | 3200 | 3 | 2294 | 3-12 | 18.5 | 1800 | 2730*1600*1080 |
LW400*1600 | 400 | 1600 | 3000 | 4 | 2016 | 3-15 | 22 | 2000 | 3130*1600*1080 |
LW450*1800 | 450 | 1800 | 2800 | 4 | 1976 | 4-25 | 37 | 2500 | 3320*1700*1130 |
LW500*2000 | 500 | 2000 | 2800 | 4 | 1750 | 5-35 | 45 | 4000 | 3520*1800*1170 |
LW530*1855 | 530 | 1855 | 2600 | 3.5 | 2006 | 5-38 | 55 | 4680 | 3885*1350*1600 |
LW530*2120 | 530 | 2120 | 2400 | 4 | 1709 | 5-40 | 55 | 4800 | 4150*1350*1600 |
LW550*2000 | 550 | 2200 | 2800 | 4 | 2414 | 6-40 | 55 | 5700 | 4570*1380*1600 |
LW650*1950 | 650 | 1950 | 2200 | 3 | 1761 | 6-45 | 75 | 5000 | 4840*1510*1720 |
LW650*2600 | 650 | 2600 | 2000 | 4 | 1456 | 6-65 | 90 | 6000 | 5490-1510*1720 |
LW720*2160 | 720 | 2160 | 2000 | 3 | 1612 | 7-80 | 120 | 6000 | 5200*1600*1800 |
LW720*2880 | 720 | 2880 | 2000 | 4 | 1306 | 7-90 | 120 | 8000 | 3100*1600*1800 |
LW800*2400 | 800 | 2400 | 1800 | 3 | 1451 | 20-100 | 150 | 12000 | 5820*2000*1300 |
LW800*3200 | 800 | 3200 | 1800 | 4 | 1451 | 20-120 | 150 | 13000 | 7100*2000*1300 |
