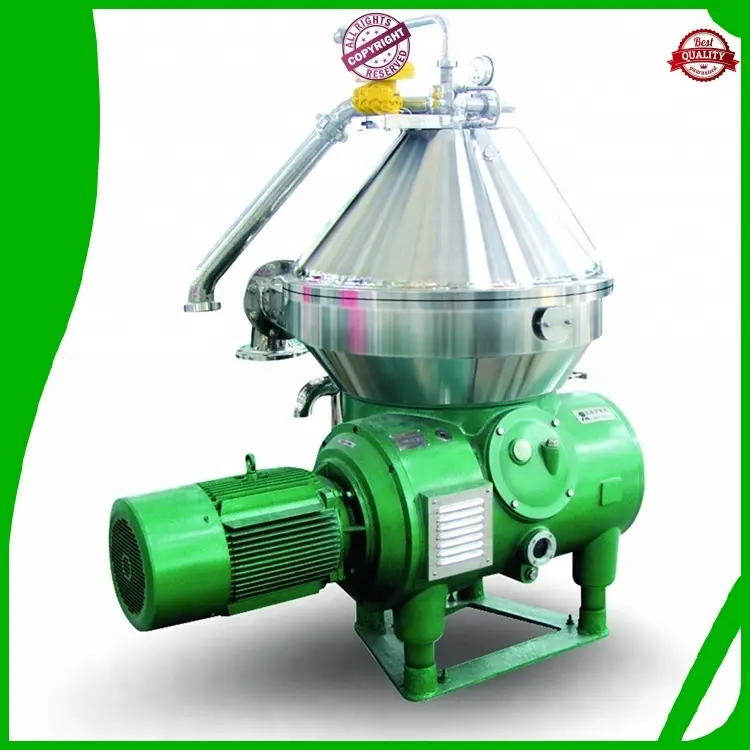

2 Phase Centrifuge: High Performance Separator
Product features
This 2 Phase Centrifuge offers high performance separation capabilities, with a powerful motor driving a drum at high speeds to efficiently separate solid and liquid components. The double-conical design of the drum's inner cavity allows for increased slag concentration and recovery, making it suitable for suspensions with solid particles in the range of 0.1-100 microns. Additionally, with features like continuous feeding, automatic residue discharging, and a concise bowl design, this centrifuge ensures optimal separation efficiency and ease of operation for various industries such as the whey industry.
We serve
At High Performance Separator, we serve industries in need of efficient and reliable separation technology. Our 2 Phase Centrifuge is designed to provide high performance separation of liquids and solids, ensuring superior results in various applications. With a focus on quality and innovation, we aim to serve our customers by delivering cutting-edge solutions that optimize processes and enhance productivity. Our commitment to excellence drives us to continually improve and tailor our products to meet the unique needs of each industry we serve. Trust us to provide you with the high-performance separator you need to elevate your operations.
Why choose us
At High Performance Separator, we serve our customers with cutting-edge technology and unmatched efficiency. Our 2 Phase Centrifuge is designed to meet the demanding needs of various industries with precision and reliability. With a focus on superior separation capabilities, our product ensures optimal performance and maximum output. We are committed to providing top-notch customer service and technical support, guaranteeing a seamless experience from purchase to operation. Trust in us to deliver exceptional quality and performance, setting new standards in centrifuge technology. Choose High Performance Separator and let us serve you with excellence.
Product Description of Whey Industry centrifuge separator
Whey: It is used as raw material in many sectors such as food, medicine and pharmaceuticals, agriculture and livestock breeding, sports nutrition, cosmetics.
Procss of Whey Industry centrifuge separator
Cleaning Of WheyPurpose: Removal of foreign matters, cheese and curd sediments from the whey. An efficient cleaning process also increases the fat separation performance. Process: They whey is cleared from impurities upon delivery to the plant using DHSZ series separator.
Whey which is ready for processing is taken to storage tanks.
Low-fat whey is transferred to the following process for further processing.
Main Structure
Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.
In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.
The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).
1. Continuous feeding
2. High separation factor
3. Automatic residue discharging
4. Concise bowl design without frequent washing
5. Hydraulic coupling driving with longer service
6. PLC system automatic control
Specification
Model | Treatment capacity (L/H) | Inlet Pressure (Mpa) | Outlet pressure (Mpa) | Motor power (Kw) | Weight (Kg) | Outline dimension (mm) |
DHSZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 7.5 | 1280 | 1500*1150*1500 |
DHSZ470 | 2500-7000 | 0.05 | 0.1-0.25 | 15 | 1880 | 1800*1200*1800 |
DHSZ550A | 5000-10000 | 0.05 | 0.1-0.25 | 18.5 | 2200 | 1850*1550*2050 |
DHSZ550E | 6000-15000 | 0.05 | 0.1-0.25 | 22 | 2200 | 1850*1550*2050 |
DHSZ700 | 15000-30000 | 0.1 | 0.2 | 30 | 3300 | 2100*1650*2300 |
Advantage
1. Operating stability2. Completely sealed up of the inlet and outlet system
3. Perfect separating affection
* Based on continuous strengthen oursleves with full of innovative ideas
* 5% of sales revenue is allocated into intensive research
* 8% of workforce is allocated into development activity
* Plenty of patent and good quality new products
We are based in Liaoning, China, start from 1980 sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
Our service
1. Professional Engineer wil recommend you the most suitable model according to your requirement.
2. Supply reference process flow chart .
3. Supply on-site installation and operation test
4. Integration for control system and process
5. Customized size and structure
6. 12Months guarantee period from machine arriving date.
7. Sufficient spare parts in stock are available .
8. Technicians are availabled for overseas service.
9. 24 hours technical consultation .
10. The customer could get trained by our experienced tecnician.
11. Routine tracing will be done timely.
12. Guide you do the normal maintenance.
13. Suggestions and any comments &reflection from customer would be treated in priority.
14. Markting team will visiting if you need.
