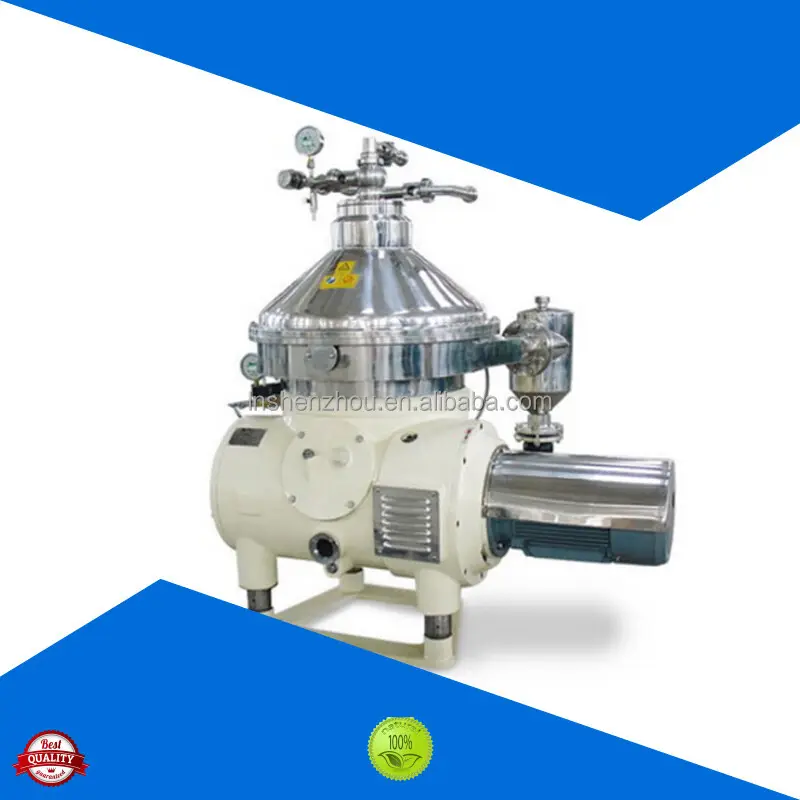

    Microalgae Fatty Acid Disc Centrifuge - Powerful 3 Phase Separator

    The Microalgae Fatty Acid Disc Centrifuge is a powerful 3-phase separator designed for extracting fatty acids from microalgae. Its advanced technology allows for efficient separation of oil, water, and solids, resulting in high purity fatty acid extracts. Users can benefit from increased productivity, reduced energy consumption, and higher quality output when using this innovative centrifuge.
    SEND INQUIRY NOW
    Products Details

    Product advantages

    The Microalgae Fatty Acid Disc Centrifuge is a powerful 3 phase separator designed to efficiently extract fatty acids from microalgae. Its advanced technology allows for high capacity processing, ensuring maximum output and cost-effectiveness. The disc centrifuge's innovative design and precise separation capabilities make it a top choice for businesses looking to streamline their production processes and achieve superior results.

    Team strength

    At the core of our Microalgae Fatty Acid Disc Centrifuge is a team of dedicated experts who have spent years honing their skills to create this powerful 3 Phase Separator. Our team's strength lies in their collective knowledge of microalgae and fatty acid extraction, ensuring that our product delivers exceptional results every time. Our commitment to innovation and quality is exemplified by the rigorous testing and research conducted by our team, resulting in a centrifuge that is efficient, reliable, and designed to meet the unique needs of our customers. Trust in our team's expertise to revolutionize your extraction process.

    Enterprise core strength

    Team strength is at the core of our Microalgae Fatty Acid Disc Centrifuge. Our dedicated team of engineers and researchers have collaborated to develop a powerful 3 phase separator that efficiently extracts fatty acids from microalgae. With a deep understanding of centrifuge technology and sustainable practices, our team brings expertise and innovation to every aspect of product design and manufacturing. By prioritizing teamwork and communication, we ensure seamless integration of components and superior performance. Trust in our team's strength to deliver a centrifuge that meets your needs for high-quality fatty acid extraction.

    Product Description

    Microalgae Fatty Acid Separation and Extraction Centrifuge Disc Centrifuge
    automatic discharging separator is special equipment for oil and fat refining, it has the traits as high rotating speed, operating stability, completely sealed up of the inlet and outlet system, lower noist and fine separating affection. Centripetal pump system designed by our professional designer has the traits as stability outlet pressure, large regulating sphere and operating easily.
    Also this series separator has professional automatic domination case with safety protection device, advanced automatic vibrating testing instrument can view vibrating testing instrument can view vibrating number at any time. We can make separating and discharing to the best affection from regulate separting parameter directly at the screen.
    Feature:
    Features
    Centrifuge Disc Centrifuge
    * High speed centrifugation to remove oil grease and sludge impurities
    * Strong emulsification ability
    * Low energy consumption,saves money
    * Full automation possible with PLC automatic control panel.
    * Centrifugal separation requiring no filter media.
    * High reliability drive train system backed by delivery of over 1,000 units a year.
    * Bowl design with superior separation performance and with good response to discharge loads.
    * Pilot valve regulates total/partial discharge of solids.
    * Super partial discharger (option) minimizes liquid loss and maximizes thickening of solid
    * Fraction for discharge.
    * Vibration-proof design realizes long working life.
    Working Principle
    How does Disc Separator work?
    Microalgae Fatty Acid Separation and Extraction Centrifuge Disc Centrifuge
    The disc separator is in vertical structure. The drum is mounted on the upper end of the vertical axis, which is driven by a motor and rotates at a high speed. There is a set of disc - shaped parts that are stacked together in the drum, with a small gap among them. When the suspension (or emulsion), which is pumped into the drum by feeding tube located in the center of the drum, pass through the gap between the discs, solid particles (or droplets) would settle down to form sediment (or liquid layer) on the disc by centrifuge force, and then the sediment slid along the surface of the disc and separated from the disc to accumulate in the largest diameter of the drum. At last, the separated liquid discharged from the outlet. The disc is utilized to shorten the settling distance of solid particles or droplets, enlarge the settlement area of the drum, and improve the production capacity of the separator. The solids accumulated in the drum are removed from the drum by manual after the machine stop, or out of the drum in the case of a dregs machine without stopping.
    Main Structure
    Fatty Acid Separation Centrifuge
    Powerful Motor provide power through the thermal coupling to drive drum in high-speed rotating around the main axis. And the liquid material is carried by feeding pipe located in the upper center into the bottom of the drum, and then led in the porthole below the disc and driven to the drum wall. Under centrifugal force, solid- liquid-liquid do the below motion to complete thorough separation:solid phrase, which is heavier than liquid, would sink into the inner wall of the drum for sediment formation; light liquid flow in centripetal pump, and be discharged by liquid outlet; The heavy liquid tends to the drum wall along the cone inside the disc, and then flows upward through through the heavy liquid concentric pump to be discharge from the outlet.
    Due to the double-conical design of the inner cavity of the drum, it can compress the slag and increase its concentration.
    Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.
    In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.
    The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).
    Disc Oil Separator Application:
    Treatment of lube
    Treatment of oil, water and solid substances
    Treatment of drilling slurry
    Water removal of crude oil
    Treatment of cooling lubricant
    Treatment and water removal of lubricant and hydraulic oil
    Treatment of waste emulsion and waste oil
    Treatment of aging oil
    Specification
    Model
    Treatment capacity (L/H)
    Inlet Pressure (Mpa)
    Outlet pressure (Mpa)
    Motor power (Kw)
    Weight (Kg)
    Outline dimension (mm)
    DHZ360
    1200-2500
    0.05
    0.1-0.25
    7.5
    1280
    1500*1150*1500
    DHZ470
    2500-7000
    0.05
    0.1-0.25
    15
    1880
    1800*1200*1800
    DHZ550A
    5000-10000
    0.05
    0.1-0.25
    18.5
    2200
    1850*1550*2050
    DHZ550E
    6000-15000
    0.05
    0.1-0.25
    22
    2200
    1850*1550*2050
    DHZ700
    15000-30000
    0.1
    0.2
    30
    3300
    2100*1650*2300
    DRZ360
    1200-2500
    0.05
    0.1-0.25
    5.5
    750
    1250*1050*1500
    DRZ400A
    2000-6000
    0.05
    0.1-0.3
    7.5
    1150
    1300*900*1450
    DRZ400E
    4000-7500
    0.05
    0.1-0.3
    7.5
    1300
    1300*900*1500
    DRZ550
    6000-18000
    0.05
    0.1-0.3
    22
    2200
    1620*1300*2200
