The strong productivity growth has been crucial for maintaining the competitiveness of Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd in centrifuge machine field.
Products Details
  • Feedback
  • Relying on advanced technology, excellent production capabilities, and perfect service, Shenzhou takes the lead in the industry now and spreads our Shenzhou all over the world. Together with our products, our services are also supplied to be the highest-level. centrifuge machine Having devoted a lot to product development and service quality improvement, we have established a high reputation in the markets. We promise to provide every customer throughout the world with prompt and professional service covering the pre-sales, sales, and after-sales services. No matter where you are or what business you are engaged in, we'd love to help you deal with any issue. If you want to know more details about our new product centrifuge machine or our company, feel free to contact us.There is a zero-compromise approach when it comes to design and material selection for Shenzhou .

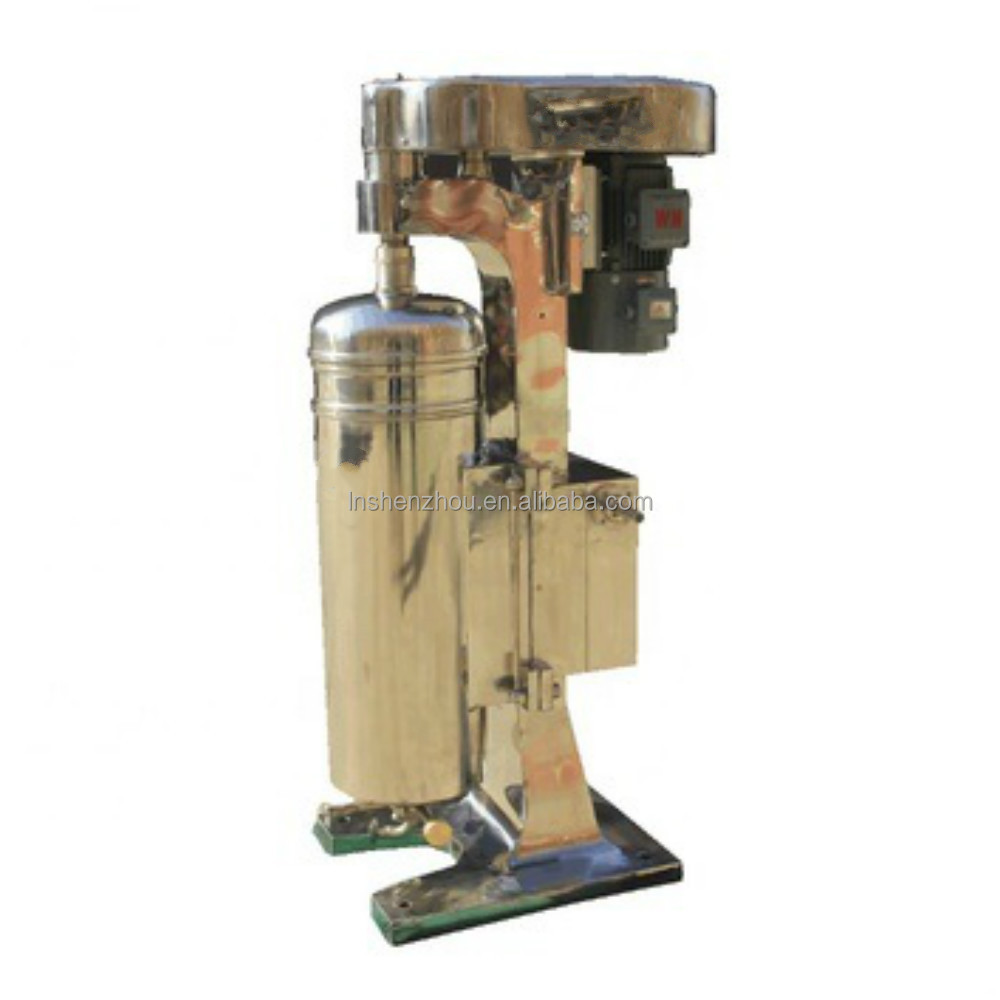

    Thanks to the efforts of our employees including technicians and designers, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd is able to introduce our .124mm 7L High Speed Bowl VCO Virgin Coconut Dirty Oil Water Liquid-liquid-solid Tubular Centrifuge $6,530.00-$7,836.00 to the public. High-end technologies are used to manufacture 124mm 7L High Speed Bowl VCO Virgin Coconut Dirty Oil Water Liquid-liquid-solid Tubular Centrifuge $6,530.00-$7,836.00.The product can play out its greatest effect in the field(s) of Separation Equipment. In aspect of the product design, our design team always pays close attention to the customers' taste and industry trends. Thanks to this, our 124mm 7L High Speed Bowl VCO Virgin Coconut Dirty Oil Water Liquid-liquid-solid Tubular Centrifuge $6,530.00-$7,836.00 can fully attract people's attention with its unique appearance. Moreover, it is excellent performance, making it worth the investment.

    Place of Origin:Liaoning, ChinaType:Centrifuge
    Product Type:SoapCondition:New
    Video outgoing-inspection:ProvidedMachinery Test Report:Provided
    Marketing Type:Hot Product 2021Warranty of core components:2 years
    Core Components:BearingBrand Name:LYSZ
    Voltage:CustomizedWeight:220
    Dimension(L*W*H):580*650*750 mmWarranty:2 years
    Key Selling Points:High ProductivityApplicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
    Showroom Location:None

    Product Description

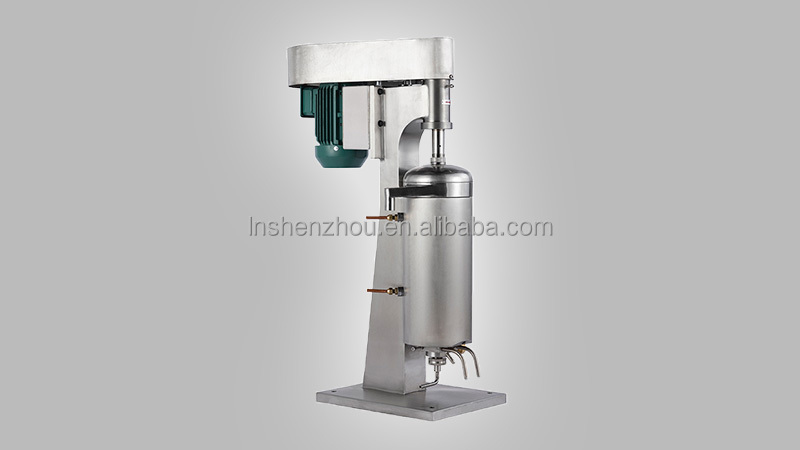

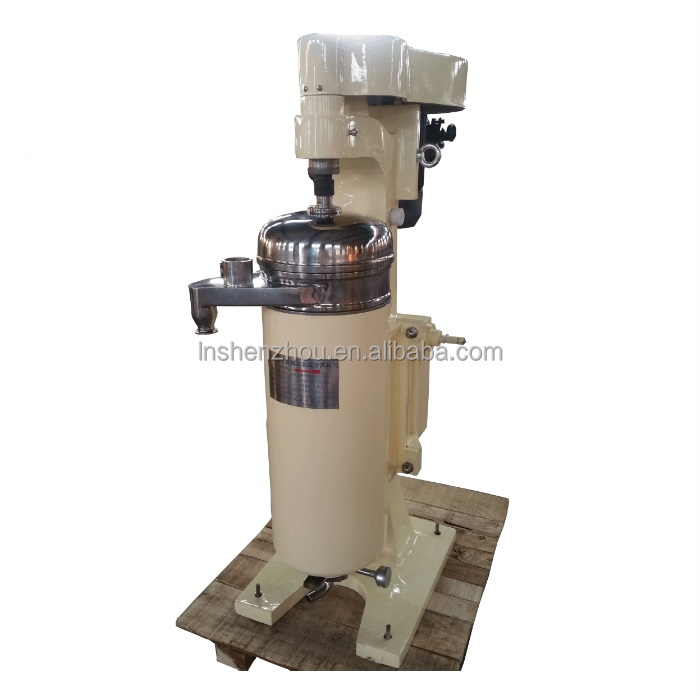

    Tubular Centrifuge, also called Tubular Separator, is a kind of fine separation equipment suitable for suspensions with thin
    concentration, fine particles, and small density difference solid-liquid separation, or liquid-liquid-solid separation. It is
    indispensable equipment for pharmaceutical, food, chemical, biological product, fermentation broth, beverages, blood products and other industries. Its working principle is that materials with different specific gravity are subject to different centrifugal forces when rotating at high speed, so as to achieve the purpose of separation.
    Specification
    Item
    GQ/GF45
    GQ/GF75
    GQ/GF105
    GQ/GF125
    Bowl
    Inner diameter/mm
    45
    75
    105
    124
    Effective height/mm
    280
    430
    730
    735
    Lsediment capacity/L
    0.45
    2
    5.5
    7.4
    Rotating speed r/min
    28000
    20000
    16000
    15000
    Max.Separatingfactor
    19800
    16770
    15025
    15500
    Material inle pressure Mpa
    >0.05
    >0.05
    >0.05
    >0.05
    Production capacity/Kg/h
    ~100
    ~500
    ~1000
    ~20000
    Motor
    Item
    Universal motor
    Y90S-2
    Y90L-2
    Y(B)112M-2-B5
    Power/Kw
    0.6
    1.5
    2.2
    4.0
    Rotating speed r/min
    4500
    2840
    2880
    2890
    Dimension(L*W*H)/mm
    580*650*7508
    950*1230*1600
    800*1200*1600
    1010*510*1715
    Weight/Kg
    120
    300
    400
    565
    Cooling tube
    Heat dissipation area/m2
    0.5
    0.5
    1.3
    Pressure/Mpa
    1
    1
    1
    TUBULAR CENTRIFUGE CLASSIFICATION

    SZGF Separation Tubular Centrifuge
    (Light liquid-heavy liquid-solid phase)

    The GQ type is mainly used for a variety of difficult-to-separate suspensions in the separation industry, and is especially suitable for the separation of solid-liquid two-phase separations with thin concentration, fine particles and small specific gravity differences.

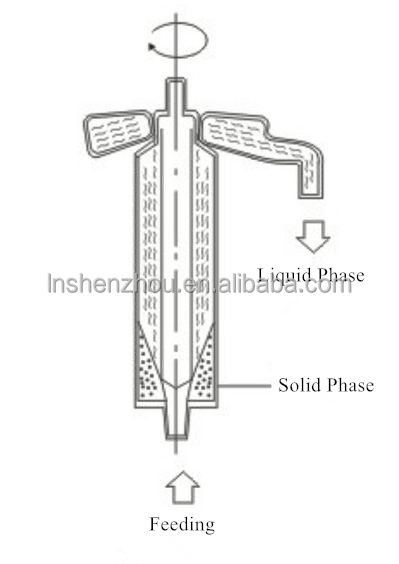

    SZGQ Working Principle:
    1. The centrifuge rotates at a high speed to reach a suitable working speed (the speed can be adjusted via the control panel), and the mixed suspension is continuously fed from the bottom, and the suspension are layered under the action of centrifugal force;
    2. The density of the liquid in the suspension is relatively small, and it spirally rises gradually from bottom to top and then continuously discharges from the clear liquid outlet on the upper part of the rotor;
    3.The solid phase is relatively heavier, and it will settle inside the bowl. After the solid is collected, turn off the
    centrifuge, and manually remove the rotor for slag cleaning;
    4. After cleaning the slag, you need to reset the rotor installation, and then start the next separation process.

    SZGQ Clarification Tubular Centrifuge
    (Liquid phase-solid phase)

    The GF type is mainly used for various difficult-to-separate suspensions in the separation industry, and is especially suitable for liquid-liquid separation with small specific gravity differences and liquid-liquid-solid three-phase separation with a small amount of impurities.

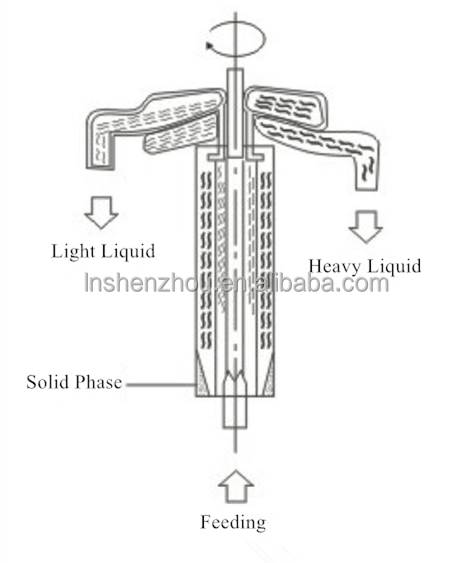

    SZGF Working Principle
    1.The centrifuge rotates at a high speed to reach a suitable working speed (the speed can be adjusted control panel), and the mixed suspension is continuously fed from the bottom, and the suspension are layered under the action of centrifugal force;
    2.The two liquids in the suspension have a difference in density and are incompatible with each other. The liquid phase spirally rises gradually from bottom to top to the upper part of the rotor. The liquid phase with a smaller density is discharged from the light liquid outlet, and the liquid phase with a larger density is discharged from the heavy liquid outlet;
    3.The solid phase density is the largest, and it will settle inside the bowl. After the solids are collected, turn off the
    centrifuge, and manually remove the rotor for slag cleaning;
    4. After cleaning the slag, need to re-install the rotor, and then start the next separation process.

    Machine Features
    FEATURES OF TUBULAR CENTRIFUGE

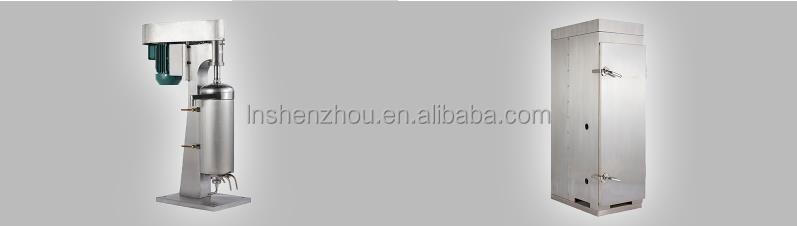

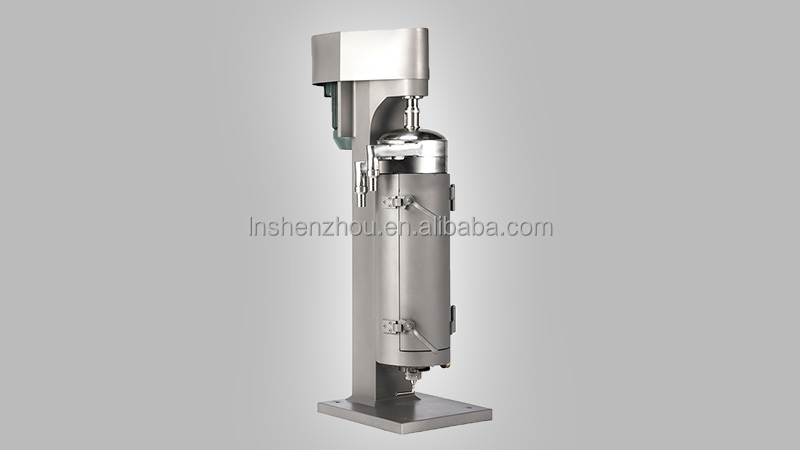

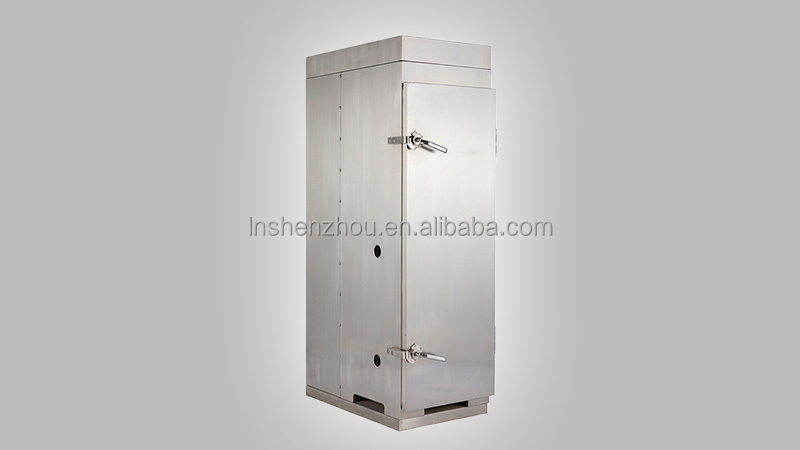

    * The enclosure shape is of square shape and round shape.
    * Stainless steel 304 is used for the surface wrapping of the enclosure.
    * Stainless steel 316L for the parts in contact with the suspension.

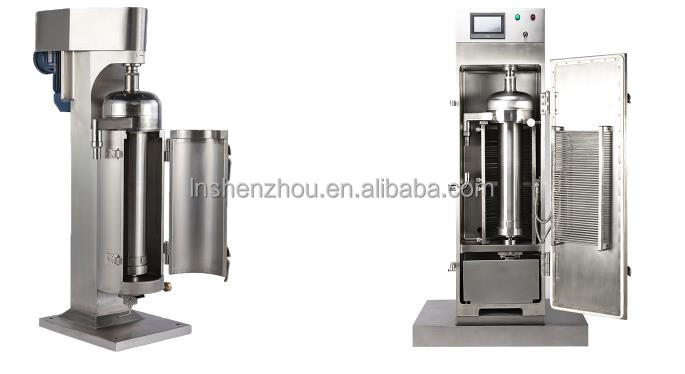

    * The enclosure body with door-opening design is convenient for disassembly and assembly of the bowl, reduces labor intensity and the separation effect is not affected.
    * Optional VFD control cabinet, start by inverter, adjustable speed, reduce the starting current and the degree of damage to the transmission components and wear parts, and improve the service life of the equipment and the motor.
    * The control cabinet is optionally equipped with PLC and touch screen to display the speed and temperature.
    * According to the field of use, explosion-proof type and cooling type with cooling coil are available.
    * Mobile integrated base is available.

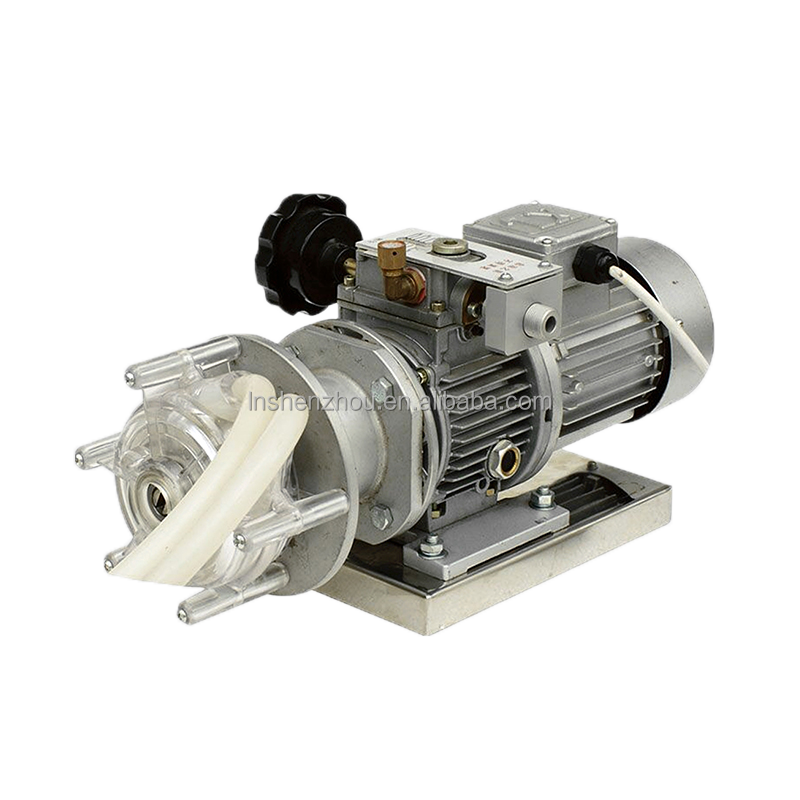

    TUBULAR CENTRIFUGE FEEDING PUMP
    FEEDING PUMP
    Peristaltic pump is used to transfer liquid by peristaltic rubber hose caused by rotating roller. The conveyed liquid only flows
    in the rubber hose, does not contact with other parts of the pump, and has no cleaning dead angle, so as to avoid possible pollution. The material of the hose is strictly selected and made of non-toxic silicone rubber or polychloroene material, which meets the hygienic standards in biochemical and medical fields. This kind of pump is with novel design, simple structure, step-less speed change to adjust the flow, suitable for working in humid environment, easy to operate, and easy to clean and disinfect.
    Peristaltic pump is widely used in hospitals, biochemistry and other industries to pump blood and other liquids. It can also be
    used for transporting liquids in other industries. It is suitable to be used as a feed pump for high-speed tubular centrifuges.
    Model
    SZRB-10
    Speed (RPM)
    200-700
    Flow (L/min)
    4-10
    Pressure (kg)
    1.5
    Motor Power (w)
    220
    Hose inner/outer Dia. (mm)
    Φ10x16.5
    Weight (kg)
    12
    Dimension (mm)
    460x200x210
    Packing & Delivery
    wooden case
    Company Profile
    Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
    FAQ
    1. who are we?
    We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine

    4. why should you buy from us not from other suppliers?
    We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery;
    Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
    Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
    Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
