Horizontal Decanter Centrifuge Machine - LW Series for Separating Soybean Protein, Wheat Starch Slurry, Fish, and Meat
Horizontal Decanter Centrifuge Machine - LW Series for Separating Soybean Protein, Wheat Starch Slurry, Fish, and Meat
Horizontal screw decanter centrifuge
Horizontal screw decanter centrifuge is a kind of spiral discharge settling centrifuge, which is pushes the slag to discharge port at the small end of the drum through the blades on the spiral pusher, and the liquid phase overflows through the overflow hole at the large end of the drum. In order to achieve the purpose of continuous separation.
1. Two motor, two frequency inverter drive system, realize differential speed stepless regulation and energy return
2. Spiral stoker blades: Surfacing welding tungsten carbide grinding
3. Drum cone cylinder material outlet: Replaceable wear resistant, corrosion resistant ceramic alloy bushing.
4. Main bearing: Sweden NSK
5. Main sealing parts: Taiwan SOG, material is Nitrile butadiene rubber
6. Electrical protection: overload, phase loss, torque protection
7. Main and vice inverter use common DC bus, vice motor’s function is generating electricity ( save electricity)
8. PLC remote control(Customer selection)
Structures and properties

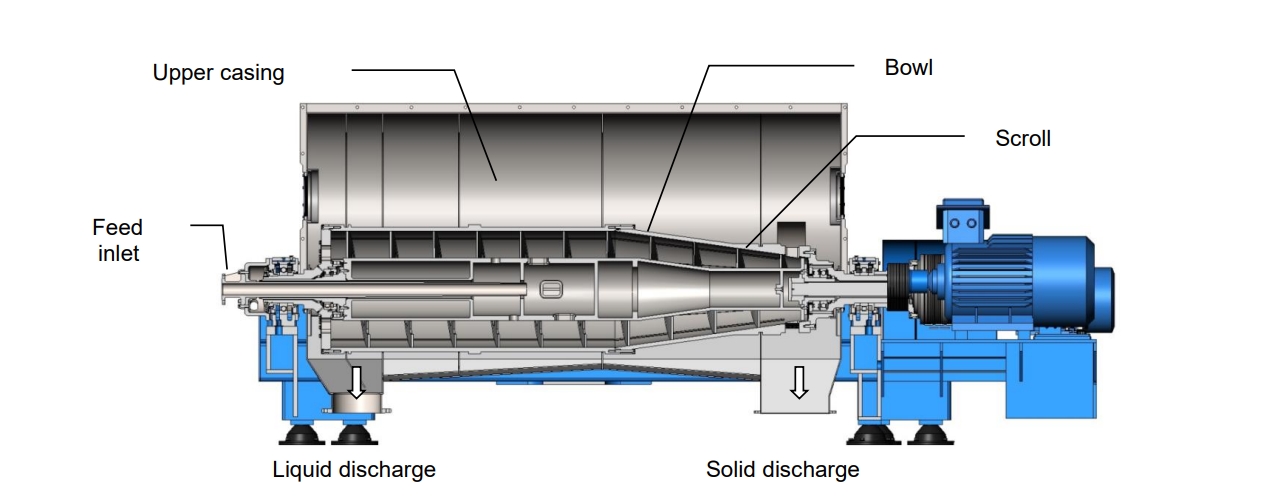

This machine is horizontal spiral discharging settling centrifuge, the main machine has a column-cone bowl, spiral stoker,
differential system, bearing seat, base, cover, main motor,vice motor, and electric control chamber. With the high speed rotating of bowl, form strong centrifugal force, making the sludge dehydrate continuously in 24 hours a day.
The main motor through the triangle belt make the bowl rotating, through the planetary gear differential, make the vice motor and spiral differential speed different, realize sludge dewatering and pushing material function, That means differential rotating speed control and torque control. because containing solid rate of sludge may have wave motion, by differential speed control system is the guarantee for speed stability, achieve solid content in sludge is constant, the constant torque control make decanter load in a stable state, the separation effect and flocculation is the best state, so as to ensure the safe operation of the centrifuge.
It has good seal performance (guarantee without material leak in the process of operation), sludge dewatering work in full seal state, makes the environment clean.
This machine adopts the most advanced international special structural design, especially the spiral stoker, make the sludge concentration dehydration integration characteristics. It has better performance than ordinary centrifuge, more high capacity, better separation effect, save energy and manual work.

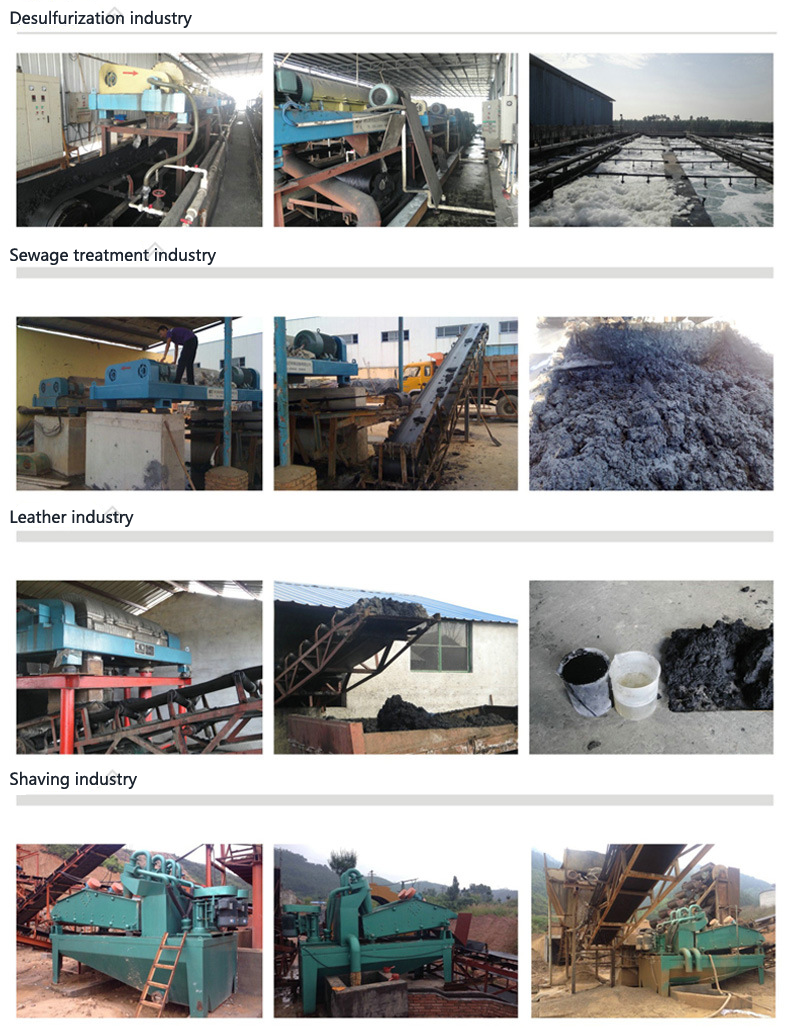

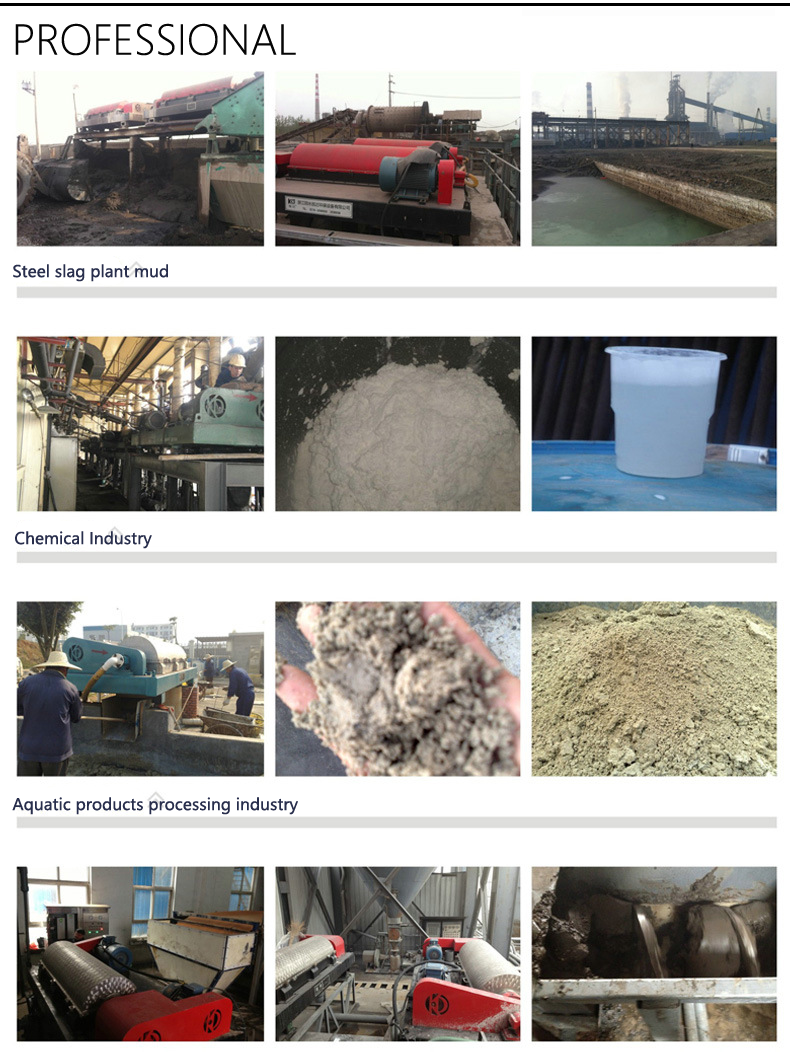

It is widely used in the production of chemical, printing, metallurgical coal mine, oil production, metallurgy,iron and steel, fabric, food, drink, dyes and so on, and it can also solve industrial and municipal wastewater. By use it, solid can be dehydrated, liquid can be clarified. The application of horizontal screw decanter centrifuge in environmental protection mainly refers to the dehydration of sludge produced in the process of industrial and civil sewage treatment. Nowadays, environmental problems have become the focus of the world. In this context, the value of horizontal screw decanter centrifuge has been reflected. Because of its inherent characteristics of large processing capacity, automatic operation and good dehydration effect, horizontal screw decanter centrifuge has been widely used and promoted in the field of environmental protection. Horizontal screw decanter centrifuge is the preferred equipment for sludge dewatering.
1.We will provide one-year warrantee to make sure your machine runs consistently.We always keep certain inventory level of spare parts,which means the replacements can be shipped to you right away.
2. Consultant services for whole machine life,24 hours technical support by email and telephone.
3. Send technicians to the jobsite for guiding the installation and adjustment,training operators and finishing the check and accept together with you.
