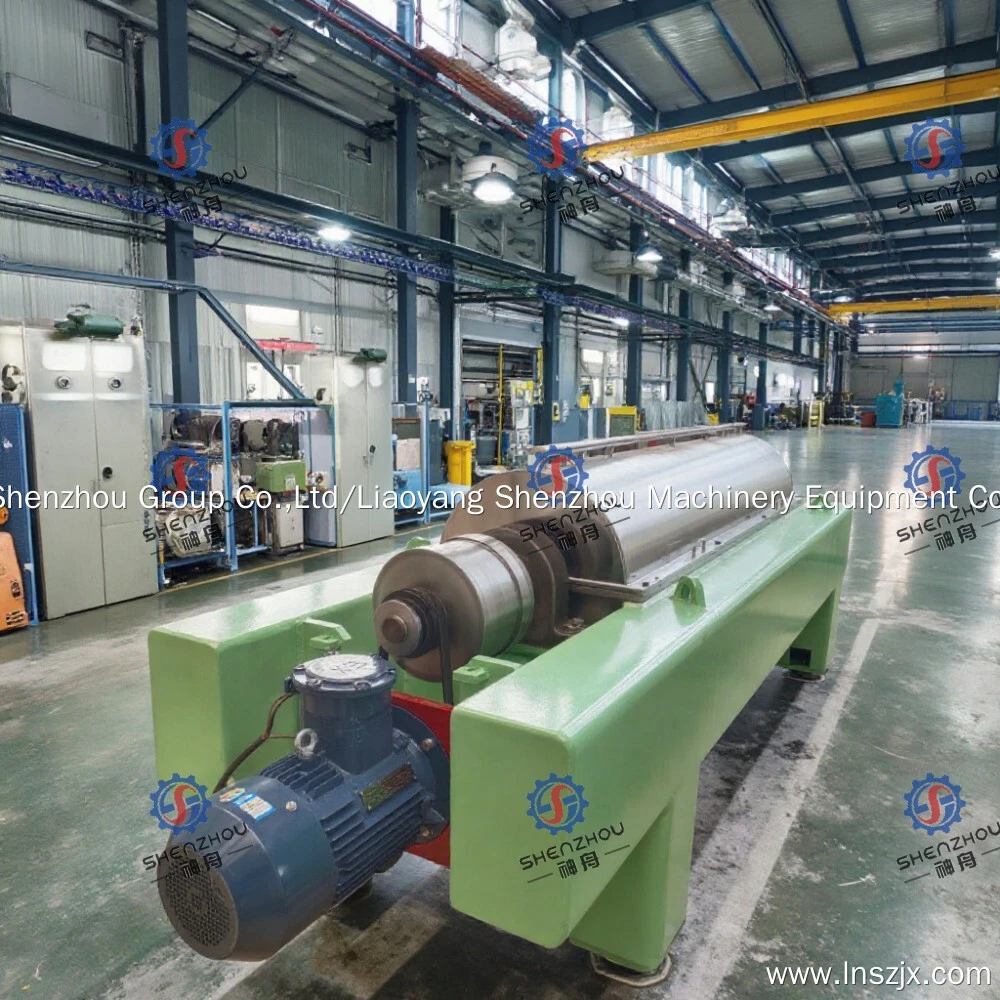

solid-liquid separation decanter centrifuge machine from Shenzhou
Decanter centrifuges have become more important for increasingly complex solid-liquid or solid-liquid-liquid separation processes. Sometimes processed industrial or metalliferous minerals are abrasive or are treated with corrosive chemical agents. Traditional mining applications include the processing of coal, gravel and other products, where low-speed decanters, as well as screen bowl decanters and filters, dominate. These have been increasingly replaced by high-speed decanters during the last decade. Decanter centrifuges also started to play a key role in applications such as drilling muds, processing carbonates and separating SX crud in copper platinum ore concentrations of nickel and gold. Communication between machine producers and mineral processing engineers is vital for the right choice of materials and the design of the right decanter centrifuge for the individual process.
What is a Decanter Centrifuge?
Definition of a Decanter Centrifuge
A decanter centrifuge, also known as a horizontal bowl centrifuge, solid bowl centrifuge or scroll centrifuge, is a machine used to separate a solid material from a liquid(s) using a high-speed and continual rotational process. While wastewater treatment of biosolids is a primary application, the separation of one solid material from one liquid (2-phase dewatering) in a slurry is also important for a number of industries including chemical, food, oil, and mining to name a few.
How A Decanter Centrifuge Works
The separation of a solid and liquid(s) in a decanter centrifuge system work on the principle of gravitational forces. Whereas it takes considerable time for the gravitational separation of a muddy mixture (to fall to the bottom) and water (to rise to the top) in separation technologies based on 1xG separation such as,a static container, clarifier or lamal separator, the rapid rotation of a centrifuge greatly speeds up this gravitational principle.
In fact, the G-force generated by a decanter centrifuge can be well in excess of three-thousand times greater than gravity reducing the separation process from hours to mere seconds. Today's centrifuges are a counter-current type technology. The separation process in a 2-phase decanter centrifuge results in the denser solid particles to be compacted and settled out in the inner drum and then transported and removed via solids discharge end of the decanter. The centrate is routed to the opposite end of the centrifuge and removed via the centrate outlet. In a 3-phase centrifuge, the baffle system is built inside the centrifuge. The baffle system blocks the oil from being discharged with the water. The oil (the lighter phase fluid) is collected between the two baffles and skimmed off the top.
The Sample Analysis and Pilot Testing Advantage
The basic operation includes the following centrifuge parts and how they function:
The feed material enters the centrifuge via the feed pipe inlet on one end of the centrifuge
Due to centrifugal force, the heavier particles are pushed through the liquid and collected on the inner wall of the bowl; the high speed rotation of the bowl separates the solids and liquid materials
The continuous rotation of the bowl can be accomplished by a VFD (Variable Frequency Drive)
The scroll conveyor (scroll) inside the bowl rotates at a slightly different speed than the bowl (differential speed)
The scroll conveyor continuously scrapes the solids off the inner bowl wall and moves the solids in the direction of the centrifuge conical's solids discharge area
The liquid (centrate) moves in the opposite direction from the solids due to Pascal's Law (or a system of combined piping) and because the solids discharge end is sealed by the solids
The differential speed of the centrifuge controls the solids retention time; the longer the solids are under g-force the drier the solids become in the dewatering process
Types of Sludge
Waste Activated Sludge (WAS) / Secondary Sludge – (0.8-1.3% TS)
Has natural separation of free water (floc) and is easily settable
Little to no polymer is required. (*)(**)
* Traditional decanter centrifuges used for sludge thickening can work using little to no polymer but require higher energy consumption or the capacity of the equipment is limited. Other thickening technologies (rotary drum, gravity belt, DAF) need polymer to produce 4-5% solids concentration.
**The Centrisys THK Sludge Thickener will achieve 4-5% solids concentration using no polymer, with 50% less energy consumption and increased capacity compared to traditional decanter centrifuges.
Primary Sludge - (1.5-5% TS)
Solids are heavy and settable but laden with colloidal material (hazy)
Hard to remove fine particles
Polymer is usually required
Digested Sludge – (1.5-3% TS)
Not easily settable;
Polymer is usually required
Transportation costs based on tonnages
Landfill percent of solids concentration requirements
Whether the sludge can be disposed in a sludge lagoon
Sludge thickening using a decanter centrifuge before a digestion treatment process will reduce the size of the digester, and can be used before sludge storage and liquid land applications. Depending on the utilization of the sludge product (landfilled, land applied or dried) the drier the product the more cost effective it will be for storage, transportation and disposal.

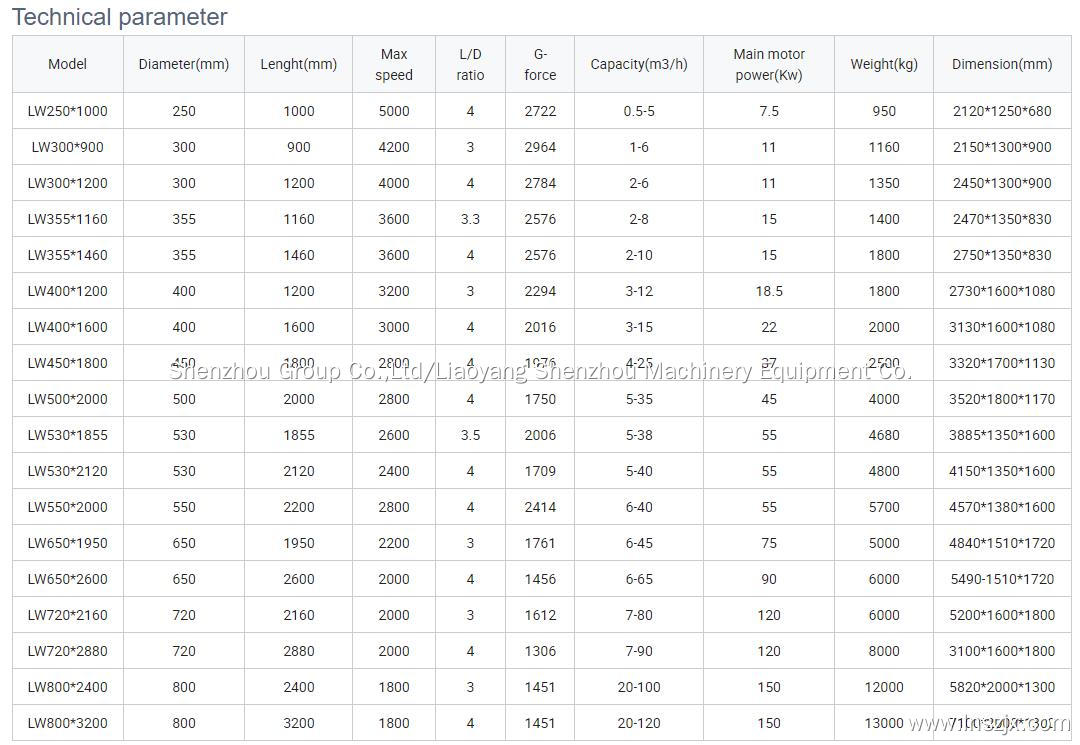

Technical Parameters:
