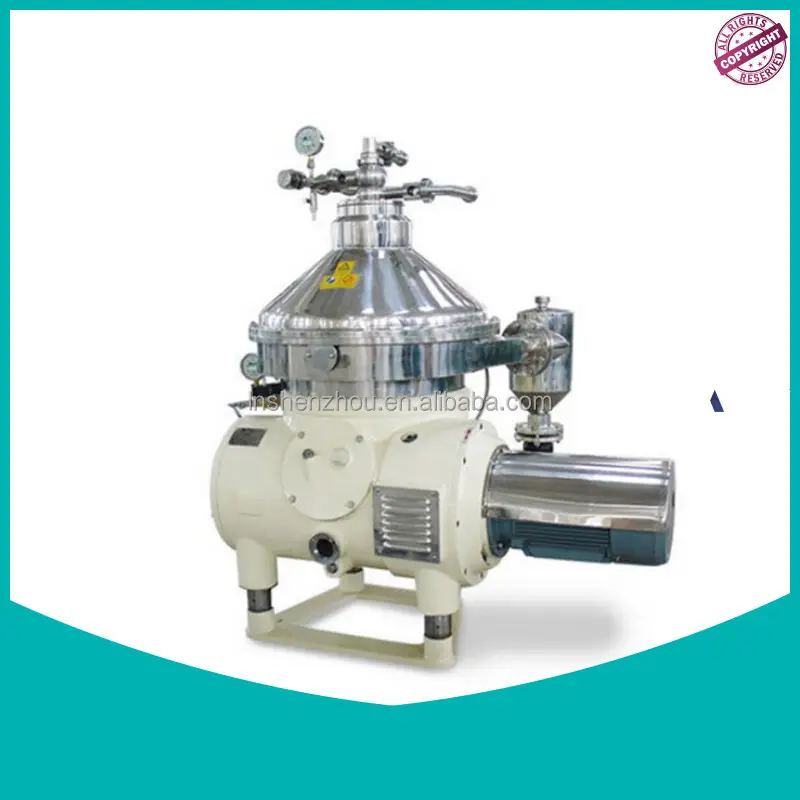

Shenzhou | Shenzhou 3 phase disc centrifuge factory
This product has many significant advantages and enjoys a high reputation and good prospects in the domestic and international markets.
Relying on advanced technology, excellent production capabilities, and perfect service, Shenzhou takes the lead in the industry now and spreads our Shenzhou all over the world. Together with our products, our services are also supplied to be the highest-level. 3 phase disc centrifuge Shenzhou have a group of service professionals who are responsible for answering questions raised by customers through the Internet or phone, tracking the logistics status, and helping customers solve any problem. Whether you'd like to get more info on what, why and how we do, try our new product - Shenzhou 3 phase disc centrifuge factory, or would like to partner up, we'd love to hear from you.Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd provides a strong price advantage.
Product Description
Microalgae Fatty Acid Separation and Extraction Centrifuge Disc Centrifuge
automatic discharging separator is special equipment for oil and fat refining, it has the traits as high rotating speed, operating stability, completely sealed up of the inlet and outlet system, lower noist and fine separating affection. Centripetal pump system designed by our professional designer has the traits as stability outlet pressure, large regulating sphere and operating easily.
Also this series separator has professional automatic domination case with safety protection device, advanced automatic vibrating testing instrument can view vibrating testing instrument can view vibrating number at any time. We can make separating and discharing to the best affection from regulate separting parameter directly at the screen.
Also this series separator has professional automatic domination case with safety protection device, advanced automatic vibrating testing instrument can view vibrating testing instrument can view vibrating number at any time. We can make separating and discharing to the best affection from regulate separting parameter directly at the screen.
Feature:
Features
Centrifuge Disc Centrifuge
* High speed centrifugation to remove oil grease and sludge impurities
* Strong emulsification ability
* Low energy consumption,saves money
* Full automation possible with PLC automatic control panel.
* Centrifugal separation requiring no filter media.
* High reliability drive train system backed by delivery of over 1,000 units a year.
* Bowl design with superior separation performance and with good response to discharge loads.
* Pilot valve regulates total/partial discharge of solids.
* Super partial discharger (option) minimizes liquid loss and maximizes thickening of solid
* Fraction for discharge.
* Vibration-proof design realizes long working life.
* High speed centrifugation to remove oil grease and sludge impurities
* Strong emulsification ability
* Low energy consumption,saves money
* Full automation possible with PLC automatic control panel.
* Centrifugal separation requiring no filter media.
* High reliability drive train system backed by delivery of over 1,000 units a year.
* Bowl design with superior separation performance and with good response to discharge loads.
* Pilot valve regulates total/partial discharge of solids.
* Super partial discharger (option) minimizes liquid loss and maximizes thickening of solid
* Fraction for discharge.
* Vibration-proof design realizes long working life.
Working Principle
How does Disc Separator work?
Microalgae Fatty Acid Separation and Extraction Centrifuge Disc Centrifuge
The disc separator is in vertical structure. The drum is mounted on the upper end of the vertical axis, which is driven by a motor and rotates at a high speed. There is a set of disc - shaped parts that are stacked together in the drum, with a small gap among them. When the suspension (or emulsion), which is pumped into the drum by feeding tube located in the center of the drum, pass through the gap between the discs, solid particles (or droplets) would settle down to form sediment (or liquid layer) on the disc by centrifuge force, and then the sediment slid along the surface of the disc and separated from the disc to accumulate in the largest diameter of the drum. At last, the separated liquid discharged from the outlet. The disc is utilized to shorten the settling distance of solid particles or droplets, enlarge the settlement area of the drum, and improve the production capacity of the separator. The solids accumulated in the drum are removed from the drum by manual after the machine stop, or out of the drum in the case of a dregs machine without stopping.
The disc separator is in vertical structure. The drum is mounted on the upper end of the vertical axis, which is driven by a motor and rotates at a high speed. There is a set of disc - shaped parts that are stacked together in the drum, with a small gap among them. When the suspension (or emulsion), which is pumped into the drum by feeding tube located in the center of the drum, pass through the gap between the discs, solid particles (or droplets) would settle down to form sediment (or liquid layer) on the disc by centrifuge force, and then the sediment slid along the surface of the disc and separated from the disc to accumulate in the largest diameter of the drum. At last, the separated liquid discharged from the outlet. The disc is utilized to shorten the settling distance of solid particles or droplets, enlarge the settlement area of the drum, and improve the production capacity of the separator. The solids accumulated in the drum are removed from the drum by manual after the machine stop, or out of the drum in the case of a dregs machine without stopping.
Main Structure
Fatty Acid Separation Centrifuge
Powerful Motor provide power through the thermal coupling to drive drum in high-speed rotating around the main axis. And the liquid material is carried by feeding pipe located in the upper center into the bottom of the drum, and then led in the porthole below the disc and driven to the drum wall. Under centrifugal force, solid- liquid-liquid do the below motion to complete thorough separation:solid phrase, which is heavier than liquid, would sink into the inner wall of the drum for sediment formation; light liquid flow in centripetal pump, and be discharged by liquid outlet; The heavy liquid tends to the drum wall along the cone inside the disc, and then flows upward through through the heavy liquid concentric pump to be discharge from the outlet.
Due to the double-conical design of the inner cavity of the drum, it can compress the slag and increase its concentration.
Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.
In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.
The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).
Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.
In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.
The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).
Disc Oil Separator Application:
Treatment of lube
Treatment of oil, water and solid substances
Treatment of drilling slurry
Water removal of crude oil
Treatment of cooling lubricant
Treatment and water removal of lubricant and hydraulic oil
Treatment of waste emulsion and waste oil
Treatment of aging oil
Treatment of oil, water and solid substances
Treatment of drilling slurry
Water removal of crude oil
Treatment of cooling lubricant
Treatment and water removal of lubricant and hydraulic oil
Treatment of waste emulsion and waste oil
Treatment of aging oil
Specification
Model | Treatment capacity (L/H) | Inlet Pressure (Mpa) | Outlet pressure (Mpa) | Motor power (Kw) | Weight (Kg) | Outline dimension (mm) |
DHZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 7.5 | 1280 | 1500*1150*1500 |
DHZ470 | 2500-7000 | 0.05 | 0.1-0.25 | 15 | 1880 | 1800*1200*1800 |
DHZ550A | 5000-10000 | 0.05 | 0.1-0.25 | 18.5 | 2200 | 1850*1550*2050 |
DHZ550E | 6000-15000 | 0.05 | 0.1-0.25 | 22 | 2200 | 1850*1550*2050 |
DHZ700 | 15000-30000 | 0.1 | 0.2 | 30 | 3300 | 2100*1650*2300 |
DRZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 5.5 | 750 | 1250*1050*1500 |
DRZ400A | 2000-6000 | 0.05 | 0.1-0.3 | 7.5 | 1150 | 1300*900*1450 |
DRZ400E | 4000-7500 | 0.05 | 0.1-0.3 | 7.5 | 1300 | 1300*900*1500 |
DRZ550 | 6000-18000 | 0.05 | 0.1-0.3 | 22 | 2200 | 1620*1300*2200 |
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
Packing & Delivery
wooden case
FAQ
1. who are we?
We are based in Liaoning, China, start from 1980 sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
We are based in Liaoning, China, start from 1980 sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
