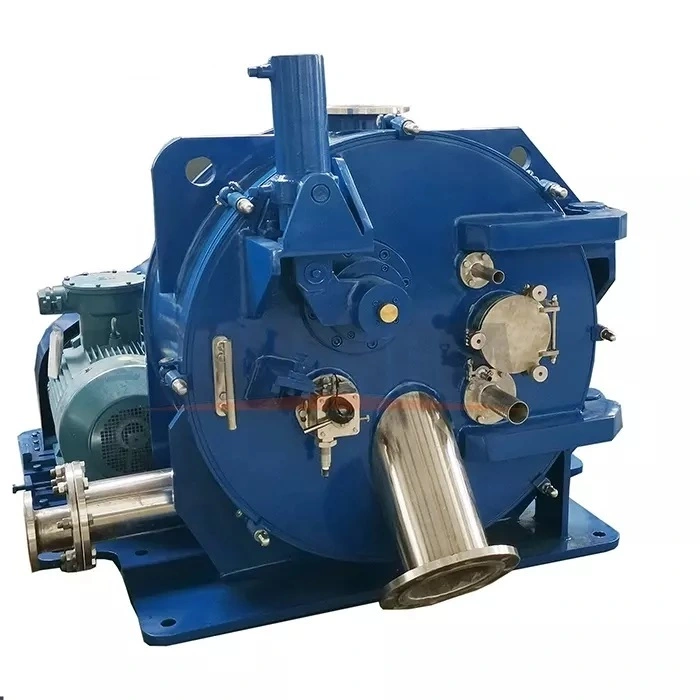

Best Large Processing Capacity Horizontal Peeler Centrifuge Factory Price - Shenzhou
Peeler centrifuge is continuously rotating and intermittently operation centrifuge. It can be either automatic control or manual control.
The whole process of operation including materials feeding, separating, cleaning, dewatering, discharging and filter cloth recycling can be achieved at full speed. Single cycle of processing materials is shortly but with large quantity. The solids cake can be well dried and cleaned.
Peeler centrifuge is widely used in such industries as chemical, food, light industry, pharmaceutical, etc. It is suitable for separating suspension containing large-size or medium-size or small-size particles, such as sulphuric ammonia, carbonic ammonia, PVC, etc.
Features of Horizontal Peeler Centrifuge :
Main features and configurations:
1, PLC control, easy maintenance and operation.
2, Action elements with automatic electric-pneumatic/hydraulic control.
3, Safety protection.
4, Welded machine case, strong and rationally design structure.
5, All seals are made of the fluorous rubber and silicon rubber.
6, Independent hydraulic station can be installed separately, convenient to repair.
7, Stable start-up and simple control, effectively protecting the motor from overload-related damage. Optional inverter start-up for variable speed control.
8, Liquid -damping vibration absorber is also available with excellent effects of absorbing effects, ensures stable operation.
9, Two discharging modes available.
Main features and configurations:
PLC control for long-distance monitoring; touch-screen operation and human-machine dialogue for easy maintenance and operation.
Action elements with automatic electric-pneumatic/hydraulic control.
Safety protection, includes rotation speed monitoring, over-vibration protection, cover opening protection, motor overload and overheat protection, dual control with both mechanical and electrical for scraper.
Welded machine case, strong and rationally design structure.
All seals are made of the fluorous rubber and silicon rubber.
Independent hydraulic station can be installed separately, convenient to repair.
Driving with hydraulic coupling (GK1250 and bigger) for stable start-up and simple control, effectively protecting the motor from overload-related damage. Optional inverter start-up for variable speed control.
Floating platform with rubber vibration-absorbing foundation; Liquid -damping vibration absorber is also available with excellent effects of absorbing effects, ensures stable operation of the centrifuge and reducing hazards imposed to the equipment and environment from the centrifuge vibration.
Two discharging modes available: chute discharging featuring simple construction; and discharging through scroll conveyor and scraper featuring high catching rate of solid cake and effectively prevent blocking.
GKH Peeler centrifuge offering siphon pushing force which makes filtration faster. Back washing device is available for washing and regeneration of filtration medium. Skimming device is also available to suit for separation of colloid materials containing protein.
Technical Parameter of Horizontal Peeler Centrifuge :
| Model | GK800 | GK1000 | GK1250 | GK1600 |
| Basket Dia (mm) | 800 | 1000 | 1250 | 1600 |
| Basket length (mm) | 450 | 500 | 625 | 800 |
| Max. charge (kg) | 135 | 225 | 550 | 930 |
| Basket Volume (L) | 100 | 165 | 370 | 960 |
| Rotation Rate of Basket (rpm) | 1550 | 1400 | 1200 | 950 |
Relative Centrifugal Force | 1080 | 1090 | 1007 | 808 |
| Power of Motor (kw) | 30 | 37 | 55 | 90 |
| Overall Dimensions (l*w*h) (mm) | 2550*1850*1350 | 2400*2150*1700 | 3450*3300*2500 | 4200*2750*2300 |
| Weight (kg) | 3500 | 6000 | 7500 | 15000 |
