Disc centrifuge is a mechanical filter based on the principle of centrifugal sedimentation. It is widely used for the continuous separation of liquids with density difference and solid-liquid mixture.
When the raw liquid was fed into the high-speed rotating drum, it enters the disc stack along the channel. With the effect of strong centrifugal force, raw liquid with different densities forms 3D concentric rings. Small amounts of solid particles with most significant density keep moving outward and pile up on the drum, forming the outer layer.
Working Principle of Vertical Disc Centrifuge

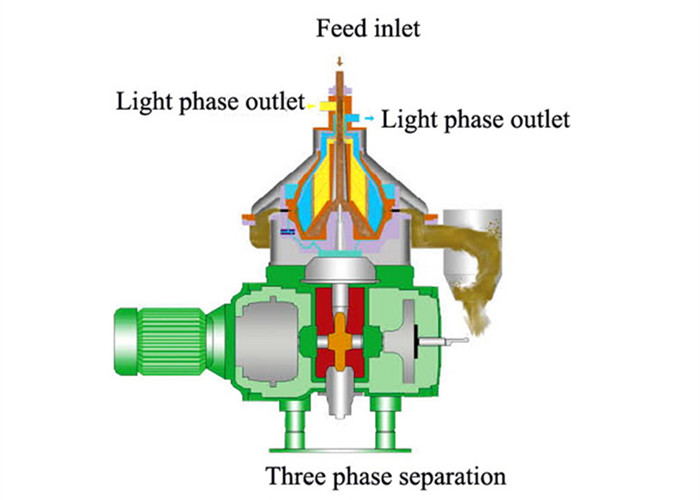

Disc centrifuge is a kind of industrial centrifuge used to clarify and separate liquids. It also belongs to vertical centrifuge. Because there is a set of disc-shaped parts (discs) nested together in the drum named disc centrifuge. The drum is driven by a motor through a vertical shaft to rotate at a high speed. The material enters the disc centrifuge drum through the feed pipe, and then enters the disc group. It accelerates in the distribution chamber until synchronized with the speed of the drum. When the suspension (or emulsion) flows through the gap between the discs, the solid particles settle on the discs to form sediment under the action of centrifugal force. The sediment slides along the surface of the disc, then it separates from the disc and accumulates in the part of the drum with the largest diameter - solid slag collection chamber. The solid phase is discharged by controlling the sealing water and slag water, and the separated liquid is discharged from the liquid outlet. The function of the disc is to shorten the settlement distance of solid particles and expand the settlement area of the drum. The installation of the disc in the drum greatly increases the production capacity of the separator.
