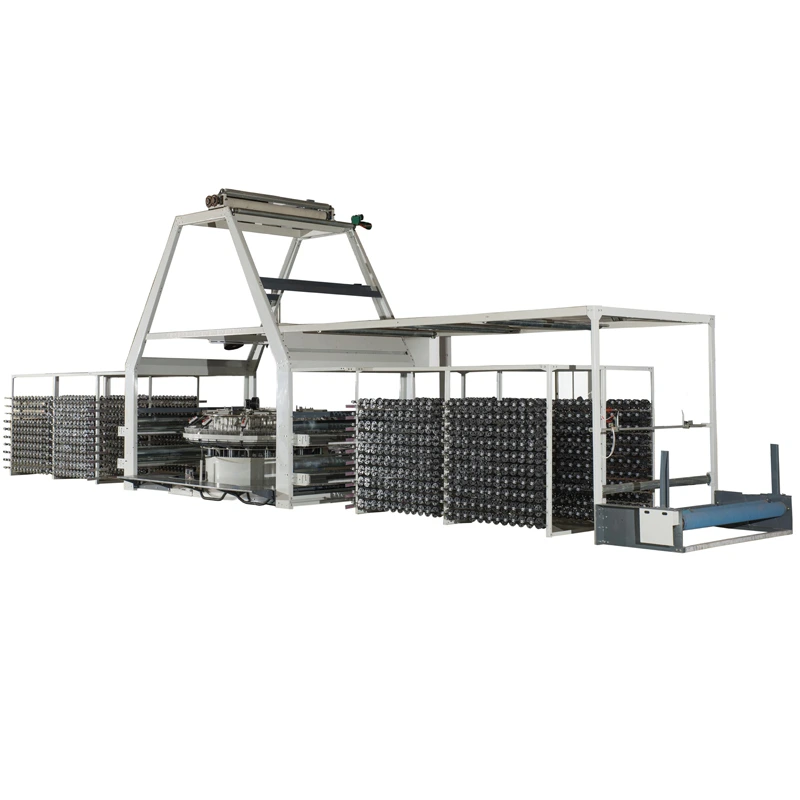

Shenzhou - High speed Eight 8 shuttle circular loom weaving machine PP Jumbo Bulk Ton Big bag production line Hot selling machine
Driven by business needs, we have been constantly optimizing and upgrading our technologies including. These technologies contribute to our high-efficiency manufacturing process.In the application field(s) of Weaving Machines.the High speed Eight 8 shuttle circular loom weaving machine PP Jumbo Bulk Ton Big bag production line proves to be very useful.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will come to you with special care and you can easily contact them for any information that you may need about the product. Based on High speed Eight 8 shuttle circular loom weaving machine PP Jumbo Bulk Ton Big bag production line properties, we have selected technology to manufacture the product after conducting multiple tests and experiments.Our product is qualified for being used in the application field(s) of Hot selling machine. Relying on our excellent products and sensible marketing strategy,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd hold a firm belief that we will take a large market share in the future and benefit our stakeholders as well.
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company | Showroom Location: | None |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2021 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Type: | Shuttle Loom | Production Capacity: | 40-150m/h |
| Place of Origin: | Liaoning, China | Brand Name: | lysz |
| Dimension(L*W*H): | 15500*3500*4560mm | Weight: | 7500 KG |
| Power: | 7.5kw | Warranty: | 1 Year |
| Key Selling Points: | Easy to Operate |
Product Description
Introduction:
This circle loom weaving machine can make pp flat yarn to woven rolls for woven bags or Jumbo bags .
With the scroll transmission by little cam and sewing-arm wheel, the machine runs easily and stable.
Rolling transmission is adopted in entire structure instead of slide block and slide rod, which doesn’t need lubricant and
decreases the wearing part. With the detector for warp-breaking, weft-breaking and weft-ending, the sensibility for automatic stop becomes reliable. It adopts the latest energy saving synchronous motor and the intelligent micro-computer controlling system can be instead if required. It can adjust the weft density and compensate the weft density in case of weft-braking, which can improve the evenness of woven fabrics.
This circle loom weaving machine can make pp flat yarn to woven rolls for woven bags or Jumbo bags .
With the scroll transmission by little cam and sewing-arm wheel, the machine runs easily and stable.
Rolling transmission is adopted in entire structure instead of slide block and slide rod, which doesn’t need lubricant and
decreases the wearing part. With the detector for warp-breaking, weft-breaking and weft-ending, the sensibility for automatic stop becomes reliable. It adopts the latest energy saving synchronous motor and the intelligent micro-computer controlling system can be instead if required. It can adjust the weft density and compensate the weft density in case of weft-braking, which can improve the evenness of woven fabrics.
Specification
Type | Number of spindle | Lay-flat width (mm) | Max. Warp (pcs) | Rotational speed of main body (r/min) | Power of main motor (kw) | Total Power (kw) | Production (m/min) (10-24warps/100mm) | Installing dimensions | weight |
YZJ-4/800 | 4 | 350-750 | 768 | 140-180 | 2.2 | 3.5 | 1.4-1.8 | 8400X2200X2650 | 1500 |
YZJ-4/1000 | 4 | 550-950 | 768/ 896 | 140-180 | 2.2 | 3.5 | 1.4-1.8 | 8400X2200X2650 | 1800 |
YZJ-4/1200 | 4 | 1000-1100 | 896/ 1020 | 120-160 | 2.2 | 4.5 | 1.2-1.6 | 8900X2350X2650 | 2000 |
YZJ-4/1500 | 4 | 800-1400 | 1040 | 90-125 | 4.0 | 5.5 | 0.9-1.25 | 9800X2500X2650 | 2300 |
YZJ-6/850 | 6 | 350-850 | 720 | 120-180 | 3.0 | 3.5 | 1.8-2.7 | 8700X2410X2650 | 2000 |
YZJ-6/1500 | 6 | 850-1450 | 1100 | 120-180 | 3.0 | 4.5 | 1.8-2.7 | 9100X2610X2650 | 3000 |
YZJ-6/1800 | 6 | 1450-1750 | 1440 | 120-180 | 4.0 | 5.5 | 1.8-2.7 | 9700X2810X2650 | 3500 |
Model | YZJ-2000X8S | YZJ-2250X10S | |
Number of Shuttles | 8 | 10 | |
Rotation Speed of Main Body | 60-65r/min | ||
Power of Main Motor | 7.5KW | ||
Lay-flat Width | 1500mm-1900mm | 1800mm-2200mm | |
Production Capacity | 40m/h-120m/h | ||
Max warps | 2280pcs | 2880pcs | |
Diameter of Warp Yarn | Max 130mm | ||
Diameter of Weft Yarn | Max 110mm | ||
Yarn Disc Diameter | 136mm | ||
Max Roll Diameter | 1500mm | ||
Machine Size(L*W*H) | 15.5mX3.5mX4.65m | 17.5mX3.7mX4.85m | |
Machine Weight | 7.5T | 8.5T | |
Packing & Delivery
wooden case
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
FAQ
1. who are we?
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
