Concerning the industry development,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has been driven to develop new products to keep us competitive. The product is characterized by multiple advantages.Its application ranges have been expanded to the Separation Equipment. With years of familiarity and expertise in this work area, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has evolved as an affluent manufacturer and supplier in the market, and there is a great possibility that the company will have a better development in the future.
| Place of Origin: | China | Type: | Centrifuge |
| Product Type: | Plant | Condition: | New |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Bearing, Gearbox, Motor | Brand Name: | Shenzhou |
| Voltage: | 380V/50HZ,3Phase | Power: | Model |
| Weight: | 1050 | Dimension(L*W*H): | Model |
| Warranty: | 1 Year | Key Selling Points: | Easy to Operate |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works , Food & Beverage Shops, Chemical plant, pharmaceutical plant | Showroom Location: | Thailand, Sri Lanka |
| After-sales Service Provided: | Field installation, commissioning and training |
Product Description
Tank Bottom Oil Sludge Recovery
The crude oil extracted from the well carries water, solids, and other sediments. Producers use settling tanks to settle crude oil. By settling, the residue left in the sedimentation tank is called the tank bottom. And the bottom of the tank is usually left with a lot of high-quality oil. The use of SZ centrifuge can realize the tank bottom sludge recycling treatment, which will contribute to energy conservation and environmental protection. It also minimizes the amount of waste to be disposed of by recovering crude oil and separating water and solids.
Separation technique:
Feeding-gravitational separation-liquid discharge-sediment discharge.
Separation effect factors Centrifuging factor ,length to diameter ratio of cavity ,depth of fluid pool.
Field control:
Bowl rotating speed ,rotative speed difference,between,spiral pusher and bowl depth of liquid pool.
The crude oil extracted from the well carries water, solids, and other sediments. Producers use settling tanks to settle crude oil. By settling, the residue left in the sedimentation tank is called the tank bottom. And the bottom of the tank is usually left with a lot of high-quality oil. The use of SZ centrifuge can realize the tank bottom sludge recycling treatment, which will contribute to energy conservation and environmental protection. It also minimizes the amount of waste to be disposed of by recovering crude oil and separating water and solids.
Separation technique:
Feeding-gravitational separation-liquid discharge-sediment discharge.
Separation effect factors Centrifuging factor ,length to diameter ratio of cavity ,depth of fluid pool.
Field control:
Bowl rotating speed ,rotative speed difference,between,spiral pusher and bowl depth of liquid pool.

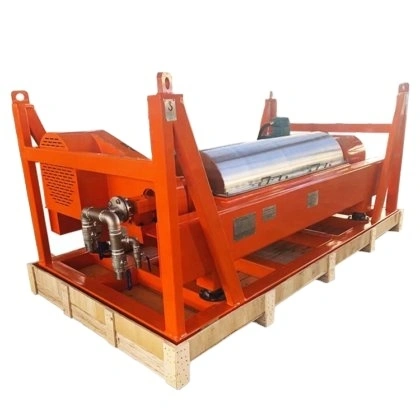

Centrifuge for Tank Bottom Oil Recovery Process
The SZ centrifuge can not only separate the oil, water, and solid components in tank bottoms. More importantly, it can also realize the recovery of high-quality oil in tank bottoms. Simultaneously, the design of our centrifuge is easy to deploy and use in the remote field. We can provide a complete system of recovery solutions for oil refining sludge, aging sludge, and slope sludge. Simultaneously, it has an automatic control system and realizes automatic continuous operation, which reduces the operating cost of personnel.
The SZ centrifuge can not only separate the oil, water, and solid components in tank bottoms. More importantly, it can also realize the recovery of high-quality oil in tank bottoms. Simultaneously, the design of our centrifuge is easy to deploy and use in the remote field. We can provide a complete system of recovery solutions for oil refining sludge, aging sludge, and slope sludge. Simultaneously, it has an automatic control system and realizes automatic continuous operation, which reduces the operating cost of personnel.
Scope of application:
SZ SEPARATION Decanters for Oil Sludge Treatment Process:
SZ Oil Sludge Decanter Equipment can effectively separate the oil, water, and solid components of the oily sludge mixture. It provides the best solution for oil slick sludge treatment. After collecting the oily (waste) water by steam heating, add suitable demulsifiers, active agents, etc. The oily water in the emulsified state can be demulsified, and the oily (waste) water after demulsification uses high-efficiency three-phase centrifuge. The machine carries out a three-phase continuous separation of oil + water + slag. The centrifuge separated water and the unlayered oil-water mixture are directly sent to the sewage treatment system for treatment. The dehydrated slag phase can be recovered by combustion or thermal desorption process. Residual crude oil, the separated oil, can be collected and used as crude oil..
SZ Oil Sludge Decanter Equipment can effectively separate the oil, water, and solid components of the oily sludge mixture. It provides the best solution for oil slick sludge treatment. After collecting the oily (waste) water by steam heating, add suitable demulsifiers, active agents, etc. The oily water in the emulsified state can be demulsified, and the oily (waste) water after demulsification uses high-efficiency three-phase centrifuge. The machine carries out a three-phase continuous separation of oil + water + slag. The centrifuge separated water and the unlayered oil-water mixture are directly sent to the sewage treatment system for treatment. The dehydrated slag phase can be recovered by combustion or thermal desorption process. Residual crude oil, the separated oil, can be collected and used as crude oil..

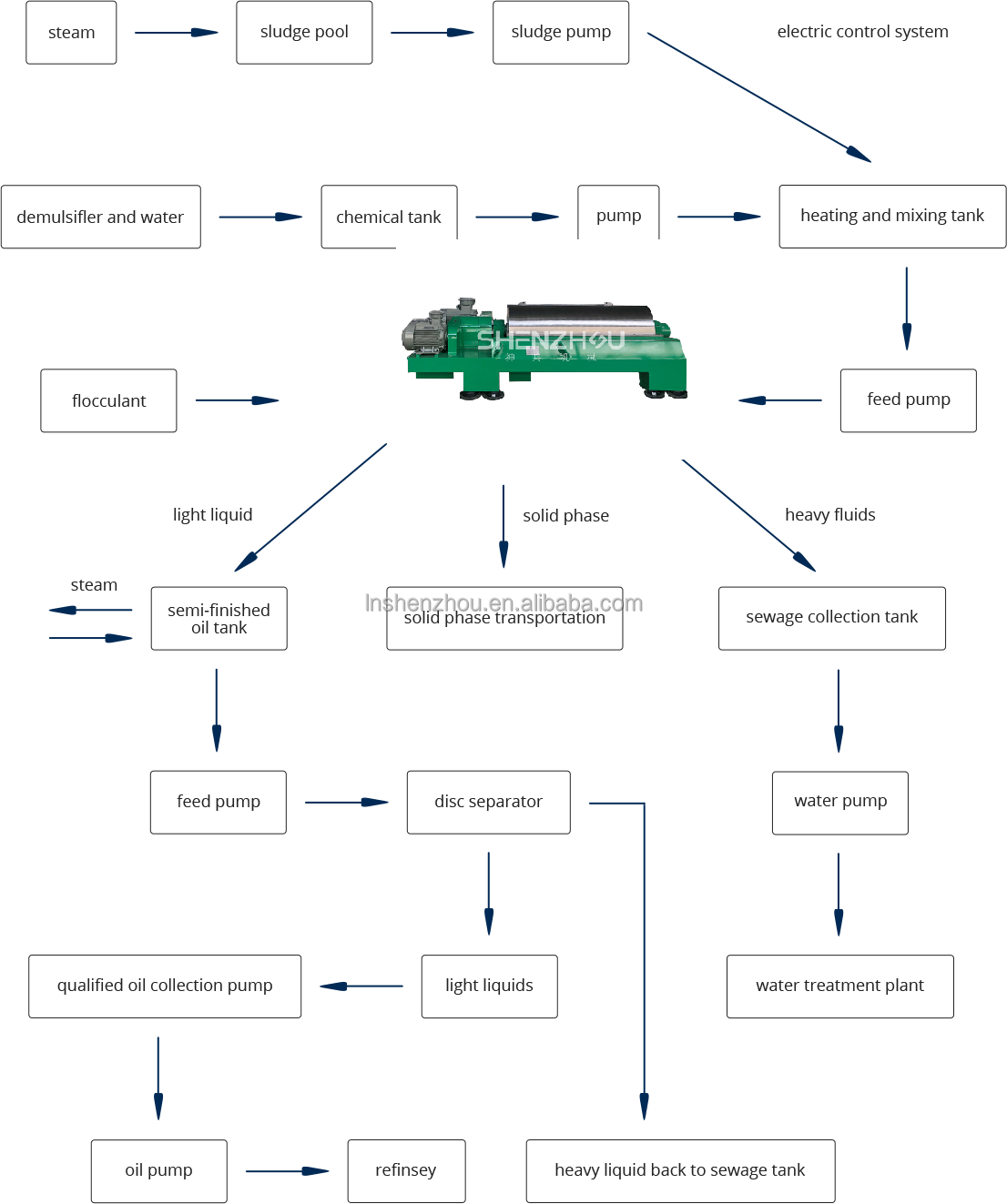

Oil Sludge Treatment Process:
1. Sludge treatment is a complete set of production process, using the principle of oxidative demulsification and centrifugalseparation. Its main equipment is composed of dosing system, feeding system, separation system, conveying system, and control system.
2. After the oily sludge is collected and heated by steam, a suitable number of additives like demulsifier and active agent are added in it, so that the oily water in the emulsified state is broken. After emulsification, a high-efficiency LWS series three-phase decanter is adopted to realize the continuous separation of oil, water, and slag in the oily sludge, and the water separated and the oil-water mixture not demulsified are directly sent to the sewage treatment system for treatment. Then, a LW series two-phase decanter with high efficiency is used for dehydration. The crude oil residue in the dehydrated slag phase can be recovered by the combustion or thermal desorption process. The separated crude oil is collected and then purified by a 3 phase disc stack separator. The purified oil can be reused.
1. Sludge treatment is a complete set of production process, using the principle of oxidative demulsification and centrifugalseparation. Its main equipment is composed of dosing system, feeding system, separation system, conveying system, and control system.
2. After the oily sludge is collected and heated by steam, a suitable number of additives like demulsifier and active agent are added in it, so that the oily water in the emulsified state is broken. After emulsification, a high-efficiency LWS series three-phase decanter is adopted to realize the continuous separation of oil, water, and slag in the oily sludge, and the water separated and the oil-water mixture not demulsified are directly sent to the sewage treatment system for treatment. Then, a LW series two-phase decanter with high efficiency is used for dehydration. The crude oil residue in the dehydrated slag phase can be recovered by the combustion or thermal desorption process. The separated crude oil is collected and then purified by a 3 phase disc stack separator. The purified oil can be reused.
Specification
Model | Diameter(mm) | Lenght(mm) | Max speed | L/D ratio | G-force | Capacity(m3/h) | Main motor power(Kw) | Weight(kg) | Dimension (mm) |
LW250*1000 | 250 | 1000 | 5000 | 4 | 2722 | 0.5-5 | 7.5 | 950 | 2120*1250*680 |
LW300*900 | 300 | 900 | 4200 | 3 | 2964 | 1-6 | 11 | 1160 | 2150*1300*900 |
LW300*1200 | 300 | 1200 | 4000 | 4 | 2784 | 2-6 | 11 | 1350 | 2450*1300*900 |
LW355*1160 | 355 | 1160 | 3600 | 3.3 | 2576 | 2-8 | 15 | 1400 | 2470*1350*830 |
LW355*1460 | 355 | 1460 | 3600 | 4 | 2576 | 2-10 | 15 | 1800 | 2750*1350*830 |
LW400*1200 | 400 | 1200 | 3200 | 3 | 2294 | 3-12 | 18.5 | 1800 | 2730*1600*1080 |
LW400*1600 | 400 | 1600 | 3000 | 4 | 2016 | 3-15 | 22 | 2000 | 3130*1600*1080 |
LW450*1800 | 450 | 1800 | 2800 | 4 | 1976 | 4-25 | 37 | 2500 | 3320*1700*1130 |
LW500*2000 | 500 | 2000 | 2800 | 4 | 1750 | 5-35 | 45 | 4000 | 3520*1800*1170 |
LW530*1855 | 530 | 1855 | 2600 | 3.5 | 2006 | 5-38 | 55 | 4680 | 3885*1350*1600 |
LW530*2120 | 530 | 2120 | 2400 | 4 | 1709 | 5-40 | 55 | 4800 | 4150*1350*1600 |
LW550*2000 | 550 | 2000 | 2800 | 4 | 2414 | 6-40 | 55 | 5700 | 4570*1380*1600 |
LW650*1950 | 650 | 1950 | 2200 | 3 | 1761 | 6-45 | 75 | 5000 | 4840*1510*1720 |
LW650*2600 | 650 | 2600 | 2000 | 4 | 1456 | 6-65 | 90 | 6000 | 5490*1510*1720 |
LW720*2160 | 720 | 2160 | 2000 | 3 | 1612 | 7-80 | 120 | 6000 | 5200*1600*1800 |
LW720*2880 | 720 | 2880 | 2000 | 4 | 1306 | 7-90 | 120 | 8000 | 3100*1600*1800 |
LW800*2400 | 800 | 2400 | 1800 | 3 | 1451 | 20-100 | 150 | 12000 | 5820*2000*1300 |
LW800*3200 | 800 | 3200 | 1800 | 4 | 1451 | 20-120 | 150 | 1300 | 7100*2000*1300 |
LWS three phase decanter parameter:
Model | Diameter(mm) | Lenght(mm) | Max speed | L/D ratio | G-force | Capacity(m3/h) | Main motor power(Kw) | Weight(kg) | Dimension(mm) |
LWS355*1460 | 355 | 1460 | 3600 | 4 | 2576 | 2-10 | 15 | 1800 | 2750*1350*830 |
LWS450*1800 | 450 | 1800 | 2800 | 4 | 1976 | 4-25 | 37 | 2500 | 3320*1700*1130 |
LWS500*2000 | 500 | 2000 | 2800 | 4 | 1750 | 5-35 | 45 | 4000 | 3520*1800*1170 |
LWS550*2000 | 550 | 2000 | 2800 | 4 | 2414 | 6-40 | 55 | 5700 | 4570*1380*1600 |
LWS650*1950 | 650 | 1950 | 2200 | 3 | 1761 | 6-45 | 75 | 5000 | 4840*1510*1720 |
LWS650*2600 | 650 | 2600 | 2000 | 4 | 1456 | 6-65 | 90 | 6000 | 5490*1510*172 |
Main technical features
1. Industrial design
Whole machine set design follows concept of advanced industrial design,ensures stability,functionality and safety of whole machine.Also effectively absorbs shear force of dynamic load during operation.
2. Effectively ease resonance during rotating of bi-rotor
When centrifuge works,there is no obvious first-order and two-order resonance regions within designed speed range,meanwhile ,whole vibration intensity of bearing seat is definited within 2mm/s-4mm/s.All of this eliminates extra fatigue damage to components and assembly units from high frequency vibration during operation and sudden vibration when shut down.
3. Thoroughly eliminate phenomenon of liquid ring stalling
Phenomenon of liquid ring stalling happens during heavy duty boot or shutdown process of complete set machine,especially for LW550 and even larger models,It would makes bounce or wild shake,causes extra impact fatigue damage to main bearings,screw bearings and inner parts of rotary bowl.Fortunately ,our engineers have solved this problem thoroughly.
4. Unique technique adopt in main component work-blanks
The manufacturing methods of main component work-blanks are adopt centrifugal casting technique and overall mould-making forging technique,thoroughly avoid risks such as inter-granular corrosion and relaxation of residual stress release in welding joint.
5. Main bearing selection
We use origin bearings of international first-line brands such as SKF,FAG and so on.
6. Constant temperature detection
All fashioning components and assembly units are detected in constant temperature condition,to make sure of actual processing quality meets the requirements of designed precision accuracy.
7. Inter-change ability
Whole machine physical design and processing technique adopted in critical position,ensure all assembly units and bowls of the same centrifuge model interchangeable.It is not only easy to maintain ,but also greatly improve the reliability and safety of equipment.
8. Simplyand safely in bearing disassemblement
One layer of oil film is injected into contact surfaces between bearing and work-piece by high-
pressure,during disassemblement bearing from the machine.which would fundamentally eliminate friction within different parts.As a result,it would reduce 90% of pulling force and lower the risk of damage to high-precision parts when disassemble bearing.
9.Main bearing lubrication system
There are two kinds of lubrication system for specific product models :
A thin oil lubrication
* Oil pump offers an uninterruptedly power to ensure oil works circularly;
* Jet oil lubrication constantly clean and lubricate bearings and reduce temperature;
* Oil filter system ensure lubricant’s cleanliness;
* Oil pressure energy storage system ensure lubrication pump offers an extra oil supply(the pressure is no less than 0.4Mpa) for 5-6 minutes,when power fails accidentally;
* Constant temperature system is available.
B grease lubrication
* Adopt a grease with properties of extreme pressure resistance ,oxidation resistance ,abrasion resistance,water scour
resistance,corrosion-proof and high temperature resistance.
* Optional automatic grease system fills grease on main bearing at designed hours and quantity.
10. Main bearing BH device (patent design)
There are two spare safe bearings at either end of main bearing.When machine works well,they keep certain clearance from bearing inside track to chief axis.When unexpected condition occurs,main bearing got damaged or circle center deviation causing an amplitude of vibration reaches to designed clearance,safe bearings begin to work as main bearing Meanwhile,computer automatic control system would get a feedback of abnormal vibration value on bearing position immediately then activates emergency shutdown and goes a smooth shut down.This system protects machine free from damaging and ensure production safety.
11. GSRL feeding device (potent design)
New design of internal spiral core tube has got following achieves.Without reducing centrifugal acceleration,shorten triangle belt's traction time,reduce disorder of swirling flow and extend separation time.Meanwhile increases inner working pressure of centrifuge,and restrains liquid foaming.
Whole machine set design follows concept of advanced industrial design,ensures stability,functionality and safety of whole machine.Also effectively absorbs shear force of dynamic load during operation.
2. Effectively ease resonance during rotating of bi-rotor
When centrifuge works,there is no obvious first-order and two-order resonance regions within designed speed range,meanwhile ,whole vibration intensity of bearing seat is definited within 2mm/s-4mm/s.All of this eliminates extra fatigue damage to components and assembly units from high frequency vibration during operation and sudden vibration when shut down.
3. Thoroughly eliminate phenomenon of liquid ring stalling
Phenomenon of liquid ring stalling happens during heavy duty boot or shutdown process of complete set machine,especially for LW550 and even larger models,It would makes bounce or wild shake,causes extra impact fatigue damage to main bearings,screw bearings and inner parts of rotary bowl.Fortunately ,our engineers have solved this problem thoroughly.
4. Unique technique adopt in main component work-blanks
The manufacturing methods of main component work-blanks are adopt centrifugal casting technique and overall mould-making forging technique,thoroughly avoid risks such as inter-granular corrosion and relaxation of residual stress release in welding joint.
5. Main bearing selection
We use origin bearings of international first-line brands such as SKF,FAG and so on.
6. Constant temperature detection
All fashioning components and assembly units are detected in constant temperature condition,to make sure of actual processing quality meets the requirements of designed precision accuracy.
7. Inter-change ability
Whole machine physical design and processing technique adopted in critical position,ensure all assembly units and bowls of the same centrifuge model interchangeable.It is not only easy to maintain ,but also greatly improve the reliability and safety of equipment.
8. Simplyand safely in bearing disassemblement
One layer of oil film is injected into contact surfaces between bearing and work-piece by high-
pressure,during disassemblement bearing from the machine.which would fundamentally eliminate friction within different parts.As a result,it would reduce 90% of pulling force and lower the risk of damage to high-precision parts when disassemble bearing.
9.Main bearing lubrication system
There are two kinds of lubrication system for specific product models :
A thin oil lubrication
* Oil pump offers an uninterruptedly power to ensure oil works circularly;
* Jet oil lubrication constantly clean and lubricate bearings and reduce temperature;
* Oil filter system ensure lubricant’s cleanliness;
* Oil pressure energy storage system ensure lubrication pump offers an extra oil supply(the pressure is no less than 0.4Mpa) for 5-6 minutes,when power fails accidentally;
* Constant temperature system is available.
B grease lubrication
* Adopt a grease with properties of extreme pressure resistance ,oxidation resistance ,abrasion resistance,water scour
resistance,corrosion-proof and high temperature resistance.
* Optional automatic grease system fills grease on main bearing at designed hours and quantity.
10. Main bearing BH device (patent design)
There are two spare safe bearings at either end of main bearing.When machine works well,they keep certain clearance from bearing inside track to chief axis.When unexpected condition occurs,main bearing got damaged or circle center deviation causing an amplitude of vibration reaches to designed clearance,safe bearings begin to work as main bearing Meanwhile,computer automatic control system would get a feedback of abnormal vibration value on bearing position immediately then activates emergency shutdown and goes a smooth shut down.This system protects machine free from damaging and ensure production safety.
11. GSRL feeding device (potent design)
New design of internal spiral core tube has got following achieves.Without reducing centrifugal acceleration,shorten triangle belt's traction time,reduce disorder of swirling flow and extend separation time.Meanwhile increases inner working pressure of centrifuge,and restrains liquid foaming.
Production workshop
Screw production1
Screw production2:
.
High speed dynamic balance detection1
High speed dynamic balance detection2
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
