Shenzhou - Decanter For Use In Steelworks Decanter centrifuge
After multiple tests, it proves that utilizing technology contributes to high-efficiency manufacturing and ensuring the stability of Decanter For Use In Steelworks.It has widespread uses in the application field(s) of Separation Equipment and is totally worth the investment.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Since established, our company has focused on setting up a technology development team which aims to develop and upgrade technologies to effectively manufacture Decanter For Use In Steelworks. it is highly acclaimed by the clients for its unique features. Shenzhou has been dedicated to the design, R&D, manufacturing, and updates of Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge. We fully hope that we can satisfy customers from different fields, countries, and regions by offering them high-quality products and professional service. If you have any questions or problems, please contact us at any time through the contact information listed on our website.
| Place of Origin: | China | Type: | Centrifuge |
| Product Type: | Plant | Condition: | New |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Bearing, Gearbox, Motor | Brand Name: | Shenzhou |
| Voltage: | 380V/50HZ,3Phase | Power: | Model |
| Weight: | 30000 | Dimension(L*W*H): | Model |
| Warranty: | 1 Year | Key Selling Points: | Easy to Operate |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works , Food & Beverage Shops, Chemical plant, pharmaceutical plant | Showroom Location: | Thailand, Sri Lanka |
| Local Service Location: | Sri Lanka |
Product Description
Decanter For Use In Steelworks
SHENZHOU decanters are used worldwide in the steel industry. They are an important component in cleaning exhaust gases and wastewater in steelworks.

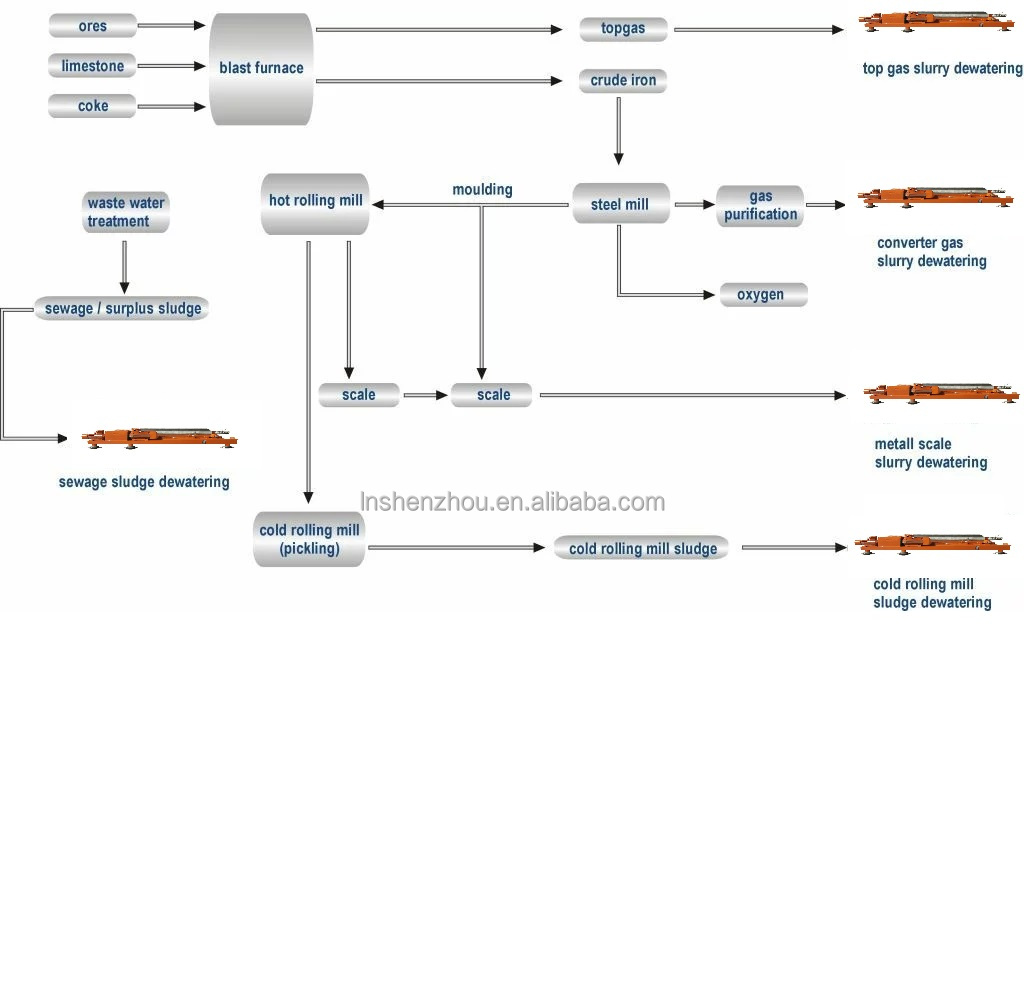

Decanters in steelworks are used for cleaning exhaust gases and wastewater from various sources:
* Furnace gas dedusting
* Furnace gas cleaning
* Converter gas dedusting
* Scale slurry processing
* Scale slurry separation
* Pickling slurry processing
* Sewage slurry processing
* Water circuit cleaning
Cleaning wastewater recycles the cooling and wash water, allowing the solid residues to be used elsewhere. During cleaning of wastewater, furnace gases from the blast furnaces and exhaust gases from steel converters are cleaned in wet washers. The water circuit is completely cleaned.
Overall, SHENZHOU decanters represent a solution for steelworks that is as elegant as it is efficient. After all, what can be returned to the material cycle does not have to be expensively disposed of. This increases the efficiency of the system and reduces environmental pollution.
Decanters in steelworks are used for cleaning exhaust gases and wastewater from various sources:
* Furnace gas dedusting
* Furnace gas cleaning
* Converter gas dedusting
* Scale slurry processing
* Scale slurry separation
* Pickling slurry processing
* Sewage slurry processing
* Water circuit cleaning
Cleaning wastewater recycles the cooling and wash water, allowing the solid residues to be used elsewhere. During cleaning of wastewater, furnace gases from the blast furnaces and exhaust gases from steel converters are cleaned in wet washers. The water circuit is completely cleaned.
Overall, SHENZHOU decanters represent a solution for steelworks that is as elegant as it is efficient. After all, what can be returned to the material cycle does not have to be expensively disposed of. This increases the efficiency of the system and reduces environmental pollution.
Reducing Operating Costs In Steelworks With The Decanter:
* Reducing fresh water consumption
* Reducing wear on system components such as pumps, etc.
* Reduced operating requirements because of fully automatic operation
* Less space requirement than filter systems
* Reduction in maintenance work by 90%
* Reducing fresh water consumption
* Reducing wear on system components such as pumps, etc.
* Reduced operating requirements because of fully automatic operation
* Less space requirement than filter systems
* Reduction in maintenance work by 90%
Advantages Of The SHENZHOU Decanter For Cleaning Wastewater And Exhaust Gases In Steelworks
SHENZHOU has been developing and producing centrifuges for 60 years, and is one of the world's leading decanter manufacturers. No other manufacturer of decanter centrifuges has so much experience in cleaning wastewater and exhaust gases in steelworks as SHENZHOU does.
Special Wear Protection
Optimum protection against wear is decisive for decanters used in steelworks. Our centrifuges are protected against wear by means of carbide plating, tungsten carbide and ceramic paste as well as being equipped with bushes made from silicon carbide ceramics for special applications. The service life of the wear protection in our centrifuges for dewatering residues from steel manufacture is generally in excess of 15,000 operating hours.
SHENZHOU has been developing and producing centrifuges for 60 years, and is one of the world's leading decanter manufacturers. No other manufacturer of decanter centrifuges has so much experience in cleaning wastewater and exhaust gases in steelworks as SHENZHOU does.
Special Wear Protection
Optimum protection against wear is decisive for decanters used in steelworks. Our centrifuges are protected against wear by means of carbide plating, tungsten carbide and ceramic paste as well as being equipped with bushes made from silicon carbide ceramics for special applications. The service life of the wear protection in our centrifuges for dewatering residues from steel manufacture is generally in excess of 15,000 operating hours.
SHENZHOU decanter automatically adapts to different load levels, and dewaters the steelworks sludge to achieve the maximum total dry solids.
Plant And System Construction
Specifically for applications in steelworks, we supply complete centrifuge systems comprising SHENZHOU decanters, pumps,intermediate tanks including suspension preparation, density regulation, flocculant dosing and control. We offer you an all-roundpeace of mind package and look after delivery, pipework, cabling and start-up.
References
SHENZHOU centrifuges are used in the steel industry all over the world, including in Belgium,Germany, Korea, Netherlands,Austria, Romania, Russia, South Africa and the Czech Republic.
Plant And System Construction
Specifically for applications in steelworks, we supply complete centrifuge systems comprising SHENZHOU decanters, pumps,intermediate tanks including suspension preparation, density regulation, flocculant dosing and control. We offer you an all-roundpeace of mind package and look after delivery, pipework, cabling and start-up.
References
SHENZHOU centrifuges are used in the steel industry all over the world, including in Belgium,Germany, Korea, Netherlands,Austria, Romania, Russia, South Africa and the Czech Republic.
Shenzhou centrifuges for the mining industry: a perfect match
Shenzhou centrifuges for the mining industry: a perfect match:
SHENZHOUcentrifuges are used in many separation processes in the mining industry. They are used to process ore and minerals, dewater tailings, dewater sand and gravel wash water, and to recover solvents in copper production.
Scope of application:
Application fields
1. Food
A flesh processing,aquatic products process and edible protein recovery;
B Extract plant protein from soybean,oily seeds and leguminous plants;
C Recovery of brewing leach liquor malt and yeast
D Treatment and recovery of wine lees liquid;
E Extract of instant coffee and tea;
F Clarification of palm oil,olive oil and seed oil;
G Extract juice from fruits ,berries and vegetables;
H Recovery of refined pectin;
I Clarification of grape juice and grape wine.
2. Environmental protection
Drilling mud ,industrial effluent ,waste water of municipal works,fertilizer,organic waste water,paint sludge,plastic
particles,gravel washing water,waste water in steel-making ,flue gas desulfurization,sewage sludge treatment of waterworks.
3. Petroleum and chemical industry
A Processing of kaolin and calcium carbonate,production of bentonite and titanium dioxide;
B Exploration of petroleum oil,natural gas,crude oil refining and related industries,additive of lube oil and waste oil recovery;
C Intermediate products and final products of organic chemistry industry;
D Thermoplastic materials,includes PVC,polypropylene,polystyrene,synthetic rubber and fiber;
E Inorganic chemical industry ,includes bleach,acid,silica products and fertilizers;
F Treatment of spent wash and molasses fermentation residues;
G Extraction of starch from wheat,corn ,cassava and potato;
H Waste liquid recovery and recycling from above industries.
Other fields
Pharmaceutical intermediates,salts and manures,etc.
A flesh processing,aquatic products process and edible protein recovery;
B Extract plant protein from soybean,oily seeds and leguminous plants;
C Recovery of brewing leach liquor malt and yeast
D Treatment and recovery of wine lees liquid;
E Extract of instant coffee and tea;
F Clarification of palm oil,olive oil and seed oil;
G Extract juice from fruits ,berries and vegetables;
H Recovery of refined pectin;
I Clarification of grape juice and grape wine.
2. Environmental protection
Drilling mud ,industrial effluent ,waste water of municipal works,fertilizer,organic waste water,paint sludge,plastic
particles,gravel washing water,waste water in steel-making ,flue gas desulfurization,sewage sludge treatment of waterworks.
3. Petroleum and chemical industry
A Processing of kaolin and calcium carbonate,production of bentonite and titanium dioxide;
B Exploration of petroleum oil,natural gas,crude oil refining and related industries,additive of lube oil and waste oil recovery;
C Intermediate products and final products of organic chemistry industry;
D Thermoplastic materials,includes PVC,polypropylene,polystyrene,synthetic rubber and fiber;
E Inorganic chemical industry ,includes bleach,acid,silica products and fertilizers;
F Treatment of spent wash and molasses fermentation residues;
G Extraction of starch from wheat,corn ,cassava and potato;
H Waste liquid recovery and recycling from above industries.
Other fields
Pharmaceutical intermediates,salts and manures,etc.
Specification
Model | Diameter(mm) | Lenght(mm) | Max speed | L/D ratio | G-force | Capacity(m3/h) | Main motor power(Kw) | Weight(kg) | Dimension (mm) |
LW250*1000 | 250 | 1000 | 5000 | 4 | 2722 | 0.5-5 | 7.5 | 950 | 2120*1250*680 |
LW300*900 | 300 | 900 | 4200 | 3 | 2964 | 1-6 | 11 | 1160 | 2150*1300*900 |
LW300*1200 | 300 | 1200 | 4000 | 4 | 2784 | 2-6 | 11 | 1350 | 2450*1300*900 |
LW355*1160 | 355 | 1160 | 3600 | 3.3 | 2576 | 2-8 | 15 | 1400 | 2470*1350*830 |
LW355*1460 | 355 | 1460 | 3600 | 4 | 2576 | 2-10 | 15 | 1800 | 2750*1350*830 |
LW400*1200 | 400 | 1200 | 3200 | 3 | 2294 | 3-12 | 18.5 | 1800 | 2730*1600*1080 |
LW400*1600 | 400 | 1600 | 3000 | 4 | 2016 | 3-15 | 22 | 2000 | 3130*1600*1080 |
LW450*1800 | 450 | 1800 | 2800 | 4 | 1976 | 4-25 | 37 | 2500 | 3320*1700*1130 |
LW500*2000 | 500 | 2000 | 2800 | 4 | 1750 | 5-35 | 45 | 4000 | 3520*1800*1170 |
LW530*1855 | 530 | 1855 | 2600 | 3.5 | 2006 | 5-38 | 55 | 4680 | 3885*1350*1600 |
LW530*2120 | 530 | 2120 | 2400 | 4 | 1709 | 5-40 | 55 | 4800 | 4150*1350*1600 |
LW550*2000 | 550 | 2000 | 2800 | 4 | 2414 | 6-40 | 55 | 5700 | 4570*1380*1600 |
LW650*1950 | 650 | 1950 | 2200 | 3 | 1761 | 6-45 | 75 | 5000 | 4840*1510*1720 |
LW650*2600 | 650 | 2600 | 2000 | 4 | 1456 | 6-65 | 90 | 6000 | 5490*1510*1720 |
LW720*2160 | 720 | 2160 | 2000 | 3 | 1612 | 7-80 | 120 | 6000 | 5200*1600*1800 |
LW720*2880 | 720 | 2880 | 2000 | 4 | 1306 | 7-90 | 120 | 8000 | 3100*1600*1800 |
LW800*2400 | 800 | 2400 | 1800 | 3 | 1451 | 20-100 | 150 | 12000 | 5820*2000*1300 |
LW800*3200 | 800 | 3200 | 1800 | 4 | 1451 | 20-120 | 150 | 1300 | 7100*2000*1300 |
Main technical features
1. Industrial design
Whole machine set design follows concept of advanced industrial design,ensures stability,functionality and safety of whole machine.Also effectively absorbs shear force of dynamic load during operation.
2. Effectively ease resonance during rotating of bi-rotor
When centrifuge works,there is no obvious first-order and two-order resonance regions within designed speed range,meanwhile ,whole vibration intensity of bearing seat is definited within 2mm/s-4mm/s.All of this eliminates extra fatigue damage to components and assembly units from high frequency vibration during operation and sudden vibration when shut down.
3. Thoroughly eliminate phenomenon of liquid ring stalling
Phenomenon of liquid ring stalling happens during heavy duty boot or shutdown process of complete set machine,especially for LW550 and even larger models,It would makes bounce or wild shake,causes extra impact fatigue damage to main bearings,screw bearings and inner parts of rotary bowl.Fortunately ,our engineers have solved this problem thoroughly.
4. Unique technique adopt in main component work-blanks
The manufacturing methods of main component work-blanks are adopt centrifugal casting technique and overall mould-making forging technique,thoroughly avoid risks such as inter-granular corrosion and relaxation of residual stress release in welding joint.
5. Main bearing selection
We use origin bearings of international first-line brands such as SKF,FAG and so on.
6. Constant temperature detection
All fashioning components and assembly units are detected in constant temperature condition,to make sure of actual processing quality meets the requirements of designed precision accuracy.
7. Inter-change ability
Whole machine physical design and processing technique adopted in critical position,ensure all assembly units and bowls of the same centrifuge model interchangeable.It is not only easy to maintain ,but also greatly improve the reliability and safety of equipment.
8. Simplyand safely in bearing disassemblement
One layer of oil film is injected into contact surfaces between bearing and work-piece by high-
pressure,during disassemblement bearing from the machine.which would fundamentally eliminate friction within different parts.As a result,it would reduce 90% of pulling force and lower the risk of damage to high-precision parts when disassemble bearing.
9.Main bearing lubrication system
There are two kinds of lubrication system for specific product models :
A thin oil lubrication
* Oil pump offers an uninterruptedly power to ensure oil works circularly;
* Jet oil lubrication constantly clean and lubricate bearings and reduce temperature;
* Oil filter system ensure lubricant’s cleanliness;
* Oil pressure energy storage system ensure lubrication pump offers an extra oil supply(the pressure is no less than 0.4Mpa) for 5-6 minutes,when power fails accidentally;
* Constant temperature system is available.
B grease lubrication
* Adopt a grease with properties of extreme pressure resistance ,oxidation resistance ,abrasion resistance,water scour
resistance,corrosion-proof and high temperature resistance.
* Optional automatic grease system fills grease on main bearing at designed hours and quantity.
10. Main bearing BH device (patent design)
There are two spare safe bearings at either end of main bearing.When machine works well,they keep certain clearance from bearing inside track to chief axis.When unexpected condition occurs,main bearing got damaged or circle center deviation causing an amplitude of vibration reaches to designed clearance,safe bearings begin to work as main bearing Meanwhile,computer automatic control system would get a feedback of abnormal vibration value on bearing position immediately then activates emergency shutdown and goes a smooth shut down.This system protects machine free from damaging and ensure production safety.
11. GSRL feeding device (potent design)
New design of internal spiral core tube has got following achieves.Without reducing centrifugal acceleration,shorten triangle belt's traction time,reduce disorder of swirling flow and extend separation time.Meanwhile increases inner working pressure of centrifuge,and restrains liquid foaming.
Whole machine set design follows concept of advanced industrial design,ensures stability,functionality and safety of whole machine.Also effectively absorbs shear force of dynamic load during operation.
2. Effectively ease resonance during rotating of bi-rotor
When centrifuge works,there is no obvious first-order and two-order resonance regions within designed speed range,meanwhile ,whole vibration intensity of bearing seat is definited within 2mm/s-4mm/s.All of this eliminates extra fatigue damage to components and assembly units from high frequency vibration during operation and sudden vibration when shut down.
3. Thoroughly eliminate phenomenon of liquid ring stalling
Phenomenon of liquid ring stalling happens during heavy duty boot or shutdown process of complete set machine,especially for LW550 and even larger models,It would makes bounce or wild shake,causes extra impact fatigue damage to main bearings,screw bearings and inner parts of rotary bowl.Fortunately ,our engineers have solved this problem thoroughly.
4. Unique technique adopt in main component work-blanks
The manufacturing methods of main component work-blanks are adopt centrifugal casting technique and overall mould-making forging technique,thoroughly avoid risks such as inter-granular corrosion and relaxation of residual stress release in welding joint.
5. Main bearing selection
We use origin bearings of international first-line brands such as SKF,FAG and so on.
6. Constant temperature detection
All fashioning components and assembly units are detected in constant temperature condition,to make sure of actual processing quality meets the requirements of designed precision accuracy.
7. Inter-change ability
Whole machine physical design and processing technique adopted in critical position,ensure all assembly units and bowls of the same centrifuge model interchangeable.It is not only easy to maintain ,but also greatly improve the reliability and safety of equipment.
8. Simplyand safely in bearing disassemblement
One layer of oil film is injected into contact surfaces between bearing and work-piece by high-
pressure,during disassemblement bearing from the machine.which would fundamentally eliminate friction within different parts.As a result,it would reduce 90% of pulling force and lower the risk of damage to high-precision parts when disassemble bearing.
9.Main bearing lubrication system
There are two kinds of lubrication system for specific product models :
A thin oil lubrication
* Oil pump offers an uninterruptedly power to ensure oil works circularly;
* Jet oil lubrication constantly clean and lubricate bearings and reduce temperature;
* Oil filter system ensure lubricant’s cleanliness;
* Oil pressure energy storage system ensure lubrication pump offers an extra oil supply(the pressure is no less than 0.4Mpa) for 5-6 minutes,when power fails accidentally;
* Constant temperature system is available.
B grease lubrication
* Adopt a grease with properties of extreme pressure resistance ,oxidation resistance ,abrasion resistance,water scour
resistance,corrosion-proof and high temperature resistance.
* Optional automatic grease system fills grease on main bearing at designed hours and quantity.
10. Main bearing BH device (patent design)
There are two spare safe bearings at either end of main bearing.When machine works well,they keep certain clearance from bearing inside track to chief axis.When unexpected condition occurs,main bearing got damaged or circle center deviation causing an amplitude of vibration reaches to designed clearance,safe bearings begin to work as main bearing Meanwhile,computer automatic control system would get a feedback of abnormal vibration value on bearing position immediately then activates emergency shutdown and goes a smooth shut down.This system protects machine free from damaging and ensure production safety.
11. GSRL feeding device (potent design)
New design of internal spiral core tube has got following achieves.Without reducing centrifugal acceleration,shorten triangle belt's traction time,reduce disorder of swirling flow and extend separation time.Meanwhile increases inner working pressure of centrifuge,and restrains liquid foaming.

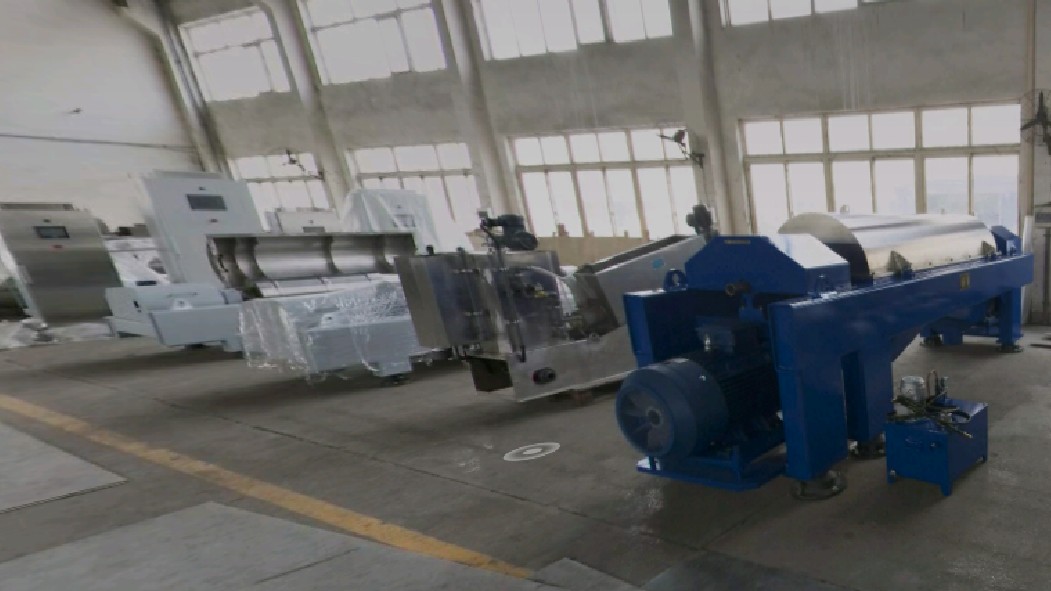

Production workshop
Screw production1
Screw production2:
.
High speed dynamic balance detection1
High speed dynamic balance detection2
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1.What's your advantage? Why we choose you?
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use famouse good quality materials and the best production process
Q2.What's the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the
procedure is complex and the fee is high. You can also use Western Union and Paypal.
Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q4.How long is the warranty period ?
A:12 months.
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use famouse good quality materials and the best production process
Q2.What's the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the
procedure is complex and the fee is high. You can also use Western Union and Paypal.
Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q4.How long is the warranty period ?
A:12 months.
Certificates
{{item.score}} Stars
{{item.pre}}%
{{item.nickname ? (item.nickname.slice(0, 2) + '*****') : item.source === 1 ? 'mall buyer' : '--'}}
{{item.comment_time}}
Review in the {{item.country}}
{{itemAttr.params_key}}: {{itemAttr.params_value}}
GET IN TOUCH WITH Us
just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs
Copyright © 2025 Shenzhou Machinery is a core subsidiary of Shenzhou Group | Sitemap
