Shenzhou - Wet fishmeal and fish oil production line Production Line equipment

Having absorbed the best and the brightest to join us, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd finds it easier and more efficient to develop products on a regular basis.Wet fishmeal and fish oil production line is the newest result combining all the efforts and wisdom of our employees. In order to guarantee Wet fishmeal and fish oil production line performance, the adopted technologies are technically useful and feasible. Depending on its properties, the product is widely applied in the field(s) of Separation Equipment. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd are determined that we will invest more in the improvement of R&D strength and gather more talents in the industry, both of which can make great contributions to the long-term development of our company.

Product Description

Wet fishmeal and fish oil production line

Wet fishmeal and fish oil production line

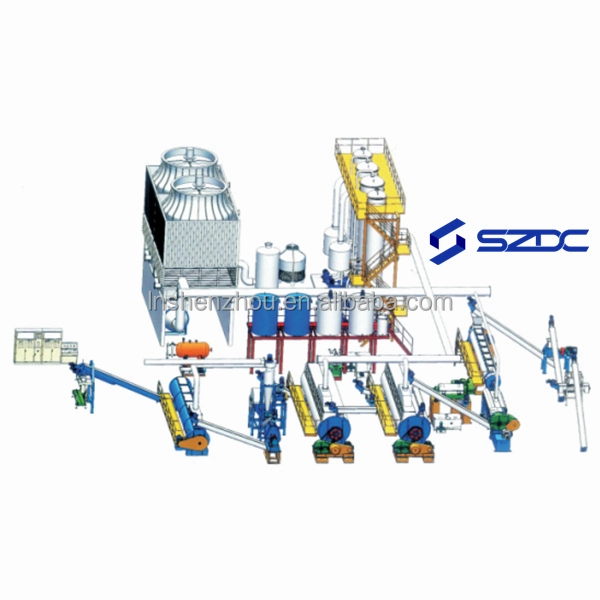

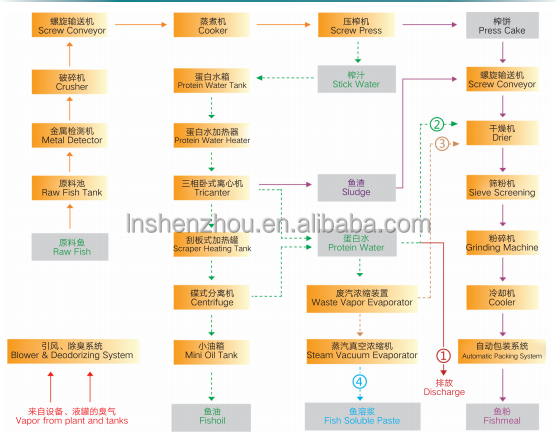

According to the different process for treating the protein water from Wet Fishmeal & Fishoil Production System, we could provide 4 plans for the fish meal plant layout for choice respectively.

We could recommend all customers for the most suitable layout as per the investment, factory location, pollution requirement and so on. Herein take Plant 4 as an example to give a brief introduction for reference. Statistics of the balance, especially its fish oil yield rate would vary from raw fish species and fishing season.

Specification

Model	Diameter(mm)	Lenght(mm)	Max speed	L/D ratio	G-force	Capacity(m3/h)	Main motor power(Kw)	Weight(kg)	Dimension (mm)
LW250*1000	250	1000	5000	4	2722	0.5-5	7.5	950	2120*1250*680
LW300*900	300	900	4200	3	2964	1-6	11	1160	2150*1300*900
LW300*1200	300	1200	4000	4	2784	2-6	11	1350	2450*1300*900
LW355*1160	355	1160	3600	3.3	2576	2-8	15	1400	2470*1350*830
LW355*1460	355	1460	3600	4	2576	2-10	15	1800	2750*1350*830
LW400*1200	400	1200	3200	3	2294	3-12	18.5	1800	2730*1600*1080
LW400*1600	400	1600	3000	4	2016	3-15	22	2000	3130*1600*1080
LW450*1800	450	1800	2800	4	1976	4-25	37	2500	3320*1700*1130
LW500*2000	500	2000	2800	4	1750	5-35	45	4000	3520*1800*1170
LW530*1855	530	1855	2600	3.5	2006	5-38	55	4680	3885*1350*1600
LW530*2120	530	2120	2400	4	1709	5-40	55	4800	4150*1350*1600
LW550*2000	550	2000	2800	4	2414	6-40	55	5700	4570*1380*1600
LW650*1950	650	1950	2200	3	1761	6-45	75	5000	4840*1510*1720
LW650*2600	650	2600	2000	4	1456	6-65	90	6000	5490*1510*1720
LW720*2160	720	2160	2000	3	1612	7-80	120	6000	5200*1600*1800
LW720*2880	720	2880	2000	4	1306	7-90	120	8000	3100*1600*1800
LW800*2400	800	2400	1800	3	1451	20-100	150	12000	5820*2000*1300
LW800*3200	800	3200	1800	4	1451	20-120	150	1300	7100*2000*1300

Main technical features

Production workshop

High speed dynamic balance detection1

High speed dynamic balance detection2

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1.What's your advantage? Why we choose you?
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use famouse good quality materials and the best production process

Q2.What's the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the
procedure is complex and the fee is high. You can also use Western Union and Paypal.

Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.

Q4.How long is the warranty period ?
A:12 months.
