Bacteria Tubular Centrifuge
Bacteria Tubular Centrifuge with Cooling Function and Sterilization Function
High Speed Tubular Centrifuge, also called Tubular Bowl Separator, is a kind of fine separation equipment suitable for suspensions with thin concentration, fine particles, and small density difference solid-liquid separation, or liquid-liquid-solid separation. It is indispensable equipment for pharmaceutical, food, chemical, biological product, fermentation broth, beverages, blood products and other industries. High Speed Tubular Centrifuge working principle is that materials with different specific gravity are subject to different centrifugal forces when rotating at high speed, so as to achieve the purpose of separation.
The GQ type is mainly used for a variety of difficult-to-separate suspensions in the separation industry, and is especially suitable for the separation of solid-liquid two-phase separations with thin concentration, fine particles and small specific gravity differences.
The GF type is mainly used for various difficult-to-separate suspensions in the separation industry, and is especially suitable for liquid-liquid separation with small specific gravity differences and liquid-liquid-solid three-phase separation with a small amount of impurities.
Bacteria Tubular Centrifuge with Cooling Function and Sterilization Function

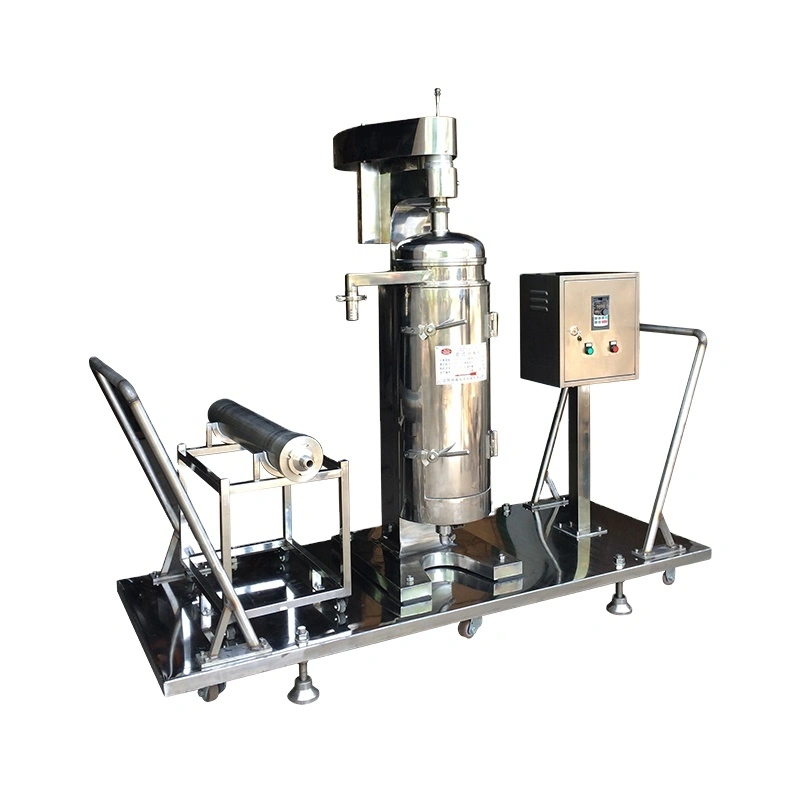

GQ Type tubular centrifuge is composed of main body, transmission device, drum, liquid collecting tray, and liquid-feeding bearing base. There is a flexible main axis on the top of drum, and a damping floating bearing at its bottom. With the linked buffering device, the main axis is connected with the passive wheel. Through the conveyor and the fastening wheel, motor provides power for the passive wheel, so the drum rotates around itself axis by high speed, and form strong centrifuge force field. Materials are launched from the bottom feeding inlet, by the centrifugal force, liquid flows upward along the drum wall, and is separated to layers because their different density.
This bacteria tubular centrifuge is widely used for many fermentation broth liquid -solid separation process , such as escherichia coli Probiotics and vaccines extraction process . if need low separation temperaturer , this tubular centrifuge also can have cooling coil ,for low separation temperature . it has over 14000rpm speed , also can remove 99% solid from liquid .if need this bacteria centrifuge , contact us , we need to according to your treat capacity to choose suitable model , different model different price .

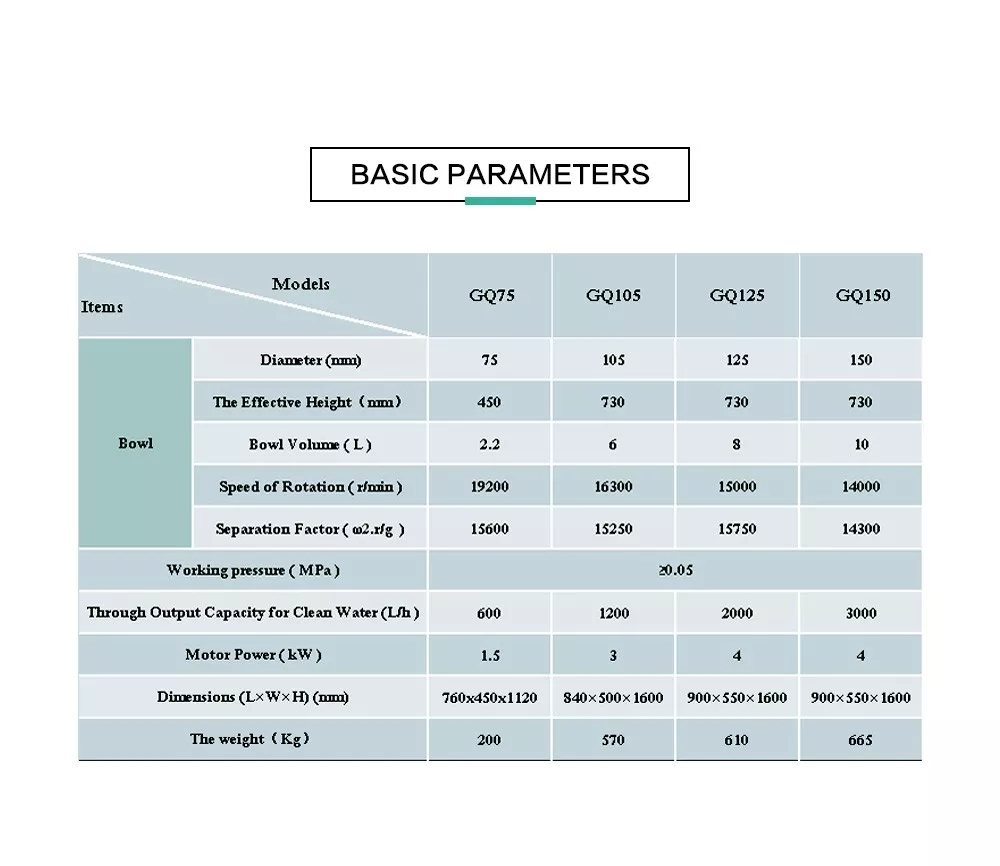

Technical Parameter:
