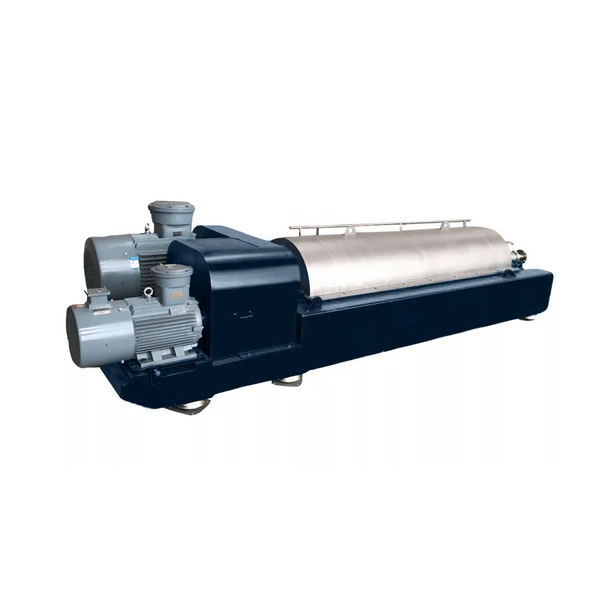

Best LWS Horizontal Spiral 3 phase Crude Oil Filtering Decanter Centrifuge Factory Price - Shenzhou

2 and 3-phase decanter centrifuges provide more efficient separation processes for these typical waste oil applications:

Oily residues, slop oils and sludges from oil refineries

BS&W storage tank bottom solids and water

Oil sludge lagoons

Oil water mixtures from ship ballasts

API separator sludge

Oilfield and drilling mud waste oils

Discarded lubricant oils and emulsions or other

Industrial oil / water and emulsion waste streams

Oily WWTP sludges

LWS crude oil tricanter, it is our main hot product.

Compared with other materials, crude oil is difficult to separate, so our technical team changed the structure of the machine according to the characteristics of crude oil. Compared with other machines of the same model, our machine not only has a large output, but also has a much better separation performance. We have a lot of applications at home and abroad, and also there are a lot of separation videos, if you need to know more, please contact us (whatsapp: +8615941954210)

Horizontal spiral centrifuge is one of our company main products. According to the requirement of the material used, we design the horizontal spiral centrifuge with one motor, two motors driving. At the same time, we design two motors separately on both sides of the machine and motors on the same place of the machine. We also develop three column horizontal spiral centrifuge, used in the separation of coal tar oil, water, slag in the industry, in petrochemical in the separation of oil, water, slag.

Main motor drive at full speed rotating drum, material put into spiral continuously by feed tube, evenly distributed to the spiral discharging port. Under centrifugal force, solid content settles to the drum wall and is pushed out cone drum slag notch by the spiral pusher. Liquid is overflow along the spiral to the drum big end. It form big end set out liquid and small end set out solid.

Feature

 In our three phase decanter centrifuges, the light and heavy liquids are discharged via the force of

 gravity and the centrifugal force, which effectively prevents the phases mixture and incomplete separation. Ordinary three phase  decanter centrifuges often generate incomplete separation because

of unstable light / heavy phase liquid compositions, while in our centrifuges, the interface of  light / heavyphase liquids can be regulated with constantly changing material compositions

 in the machine working, thus optimal separation effect is achieved. Currently, our three-phase decanter centrifuges are used in the separation of oils, water and slags / dregs in the coal tar industry, the petrochemical industry, the fish powder industry, the swill oil industry, the electrolytic copper industry, and the waste scraps in the slaughter houses.

Material: high quality stainless steel

Bearing: SKF brand. A special selection and arrangement of bearings provides for long life and exceptional reliability

Wear protection:  carbide sheets of spiral feeder and replaceable alloy sleeves of drum outlet and spiral feeder outlet

The decanter centrifuge can be adjusted to suit individual requirements by varying:

1. Bowl speed to ensure the exact relative centrifugal force required for optimized separation.

2. Differential speed, for optimized balance between liquid clarity and solids discharge capacity.

3. Pond depth in the bowl for optimized balance between liquid clarity and solid dryness.
