High Speed Spirulina Algae Seaweed Harvest Tubular Centrifuge With Factory Price
High Speed Spirulina Algae Seaweed Harvest Tubular Centrifuge With Factory Price
GQ SERIES: it is used for separating all kinds of suspension which is difficult to be separated. It is especially suitable for solid-liquid separation with small concentration, high viscosity, fine solid phase particles and small difference in solid-liquid weight. For example, all kinds of liquid , grapes clarification of sugarwash bitide, malic acid, oral liquid and beancurd root; Coal tar, graphite slag removal; Extraction of various proteins, algal bands and pectin; Refining molasses; Blood separation, vaccine mycelium, each settlement of seed glucose; paint, dye, various resins, rubber solution purification.
Working Principle of Algae Tubular Separator Centrifuge
Tubular Centrifuge consists of machine body, driving part, bowl, liquid collecting tray and liquid inlet bearing seat etc. On top of the bowl is the flexible spindle and at the bottom is the damping floating bearing. The spindle is coupled with driven wheel by buffer on the coupling seat. The motor transmit power to the driven wheel through drive belt and tension wheel, thus for the blow to rotate around its own axis at high speed, to form a strong centrifugal force field. The material is injected inside from the liquid inlet at the bottom, and the centrifugal force compels the clarification liquid to flow upwards along the inner wall of bowl, and the clarification liquid flows out from the outlet. The solid deposit in the bowl and it will be discharged by manual after the machine is shut down.
 |  |

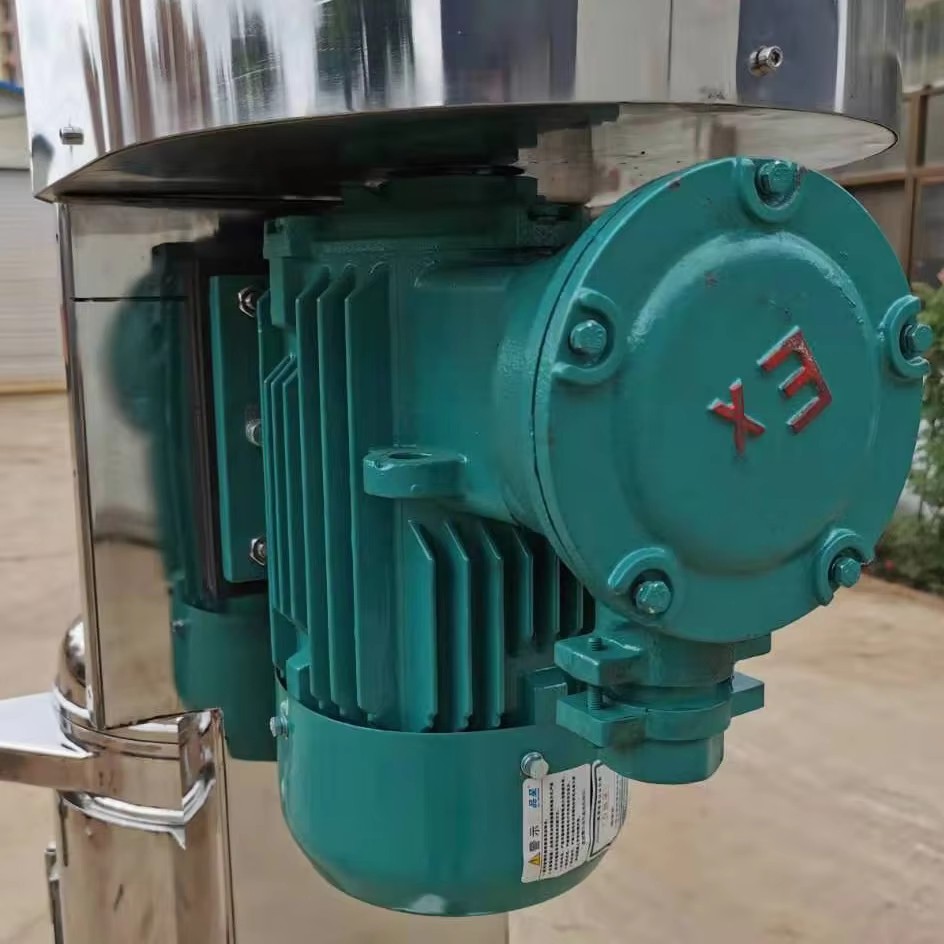

 | The motor of tubular centrifuge We can provide standard normal motor or explosion-proof motor. Normal power supply is 380V, 50Hz, 3-phase, 2.2kw. Different voltage in different country can be customized. Such as 220V or 415V, 50Hz or 60Hz, 1-phase or 2-phase. |

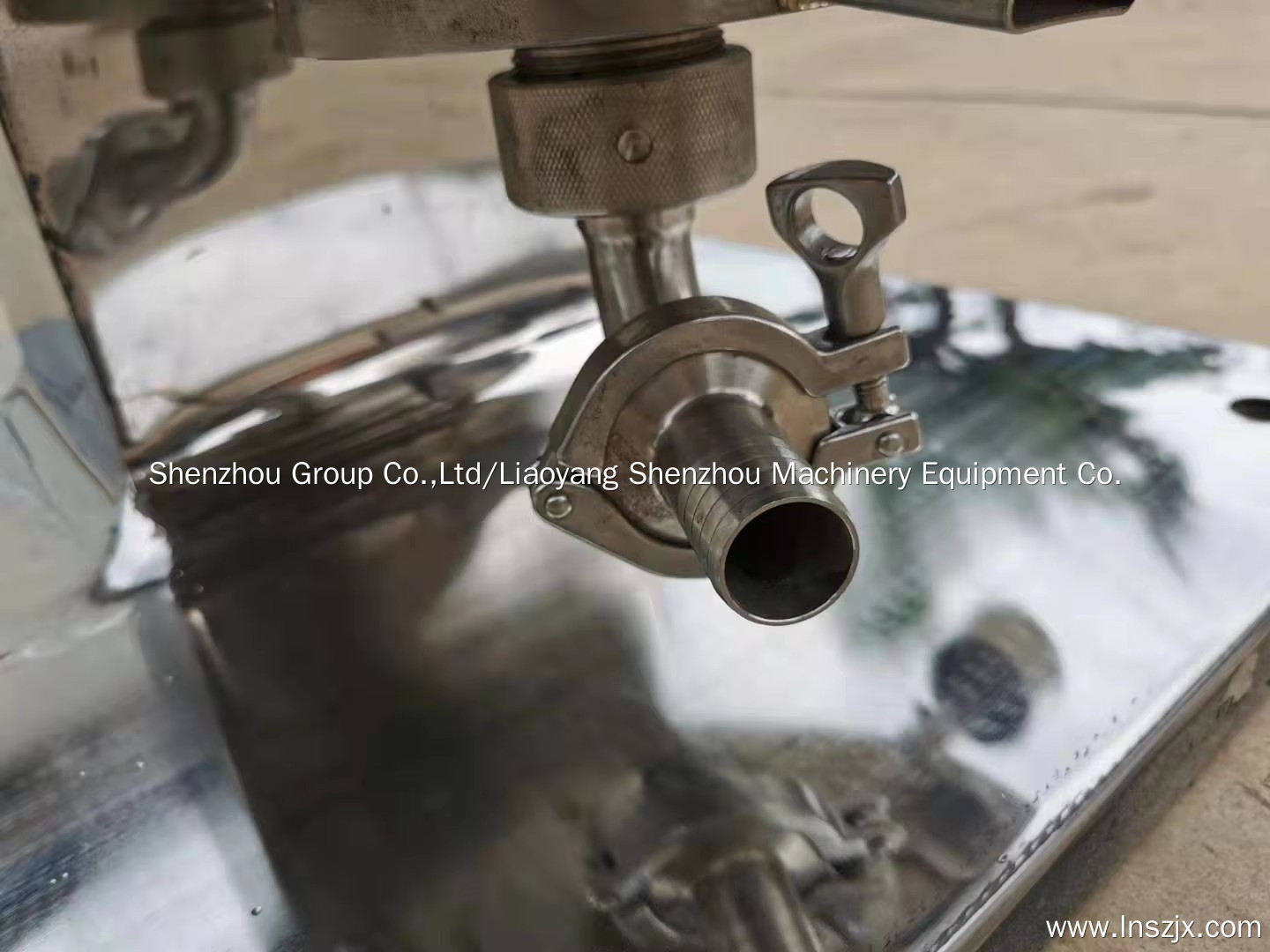

The Feeding inlet The feeding inlet of raw liquid is at the bottom of machine. All the contact part with raw liquid is stainless steel 304, also stainless steel 316 can be required. The user can use pump or high-low position feeding tank to feed. |  |
