Shenzhou - Hr Series Two-Stage Piston Salt Pusher Centrifuge Centrifuge & Separator
Shenzhou is so unique and high-quality that it can reflect that we strictly follow the international rules and manufacturing standards.Hr Series Two-Stage Piston Salt Pusher Centrifugehas the features that those normal similar-like products don't have. With those superiorities, it will surely stand out in the market.
Product Description

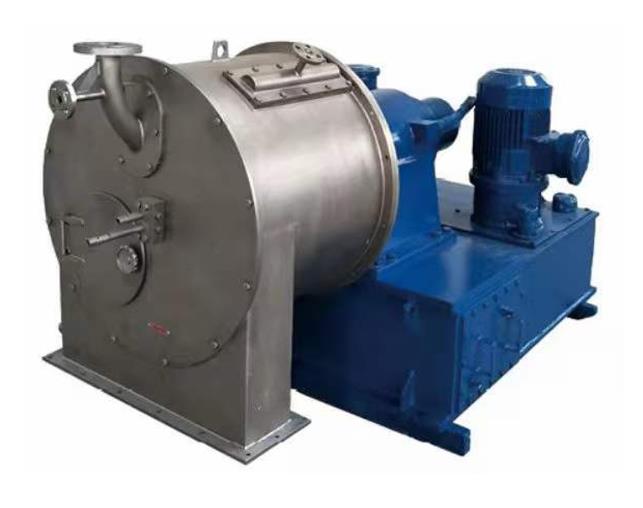

Horizontal two-stage piston pusher centrifuges
As a horizontal two-stage piston feeding centrifuge, HR500 piston pusher centrifuge can work continuously. When the machine is working at its full speed, processes, including the feeding, separating, washing and unloading, etc., can be completed continuously.The machine is widely applied for the separating of suspension (in which the particle size in the solid phase is more than 0.08mm, and the concentration is more than 40%) in industries of chemical, chemical fertilizer, alkali or salt, etc., especially for the solid-liquid separating for sodium chloride, ammonium chloride, ammonium bicarbonate, trisodium phosphate, sodium metasilicate, sodium sulfate or urea, etc.
Both internal bowl and external bowl, the housing, sieves and all contact parts are made of stainless steel 316L. The machine pedestal and the oil box are Q235 welded. The bearing pedestal is ZG35. The main shaft is 45.
Typical products：
Sodium chloride / Potassium nitrate / Potassium chloride / Ammonium bicarbonate / Sodium sulfate / Potassium / sulphate / Copper sulfate / Ammonium sulfate / phosphate / Potassium carbonate / Polyethylene / Polypropylene / Nitrocellulose / Boric acid / Urea

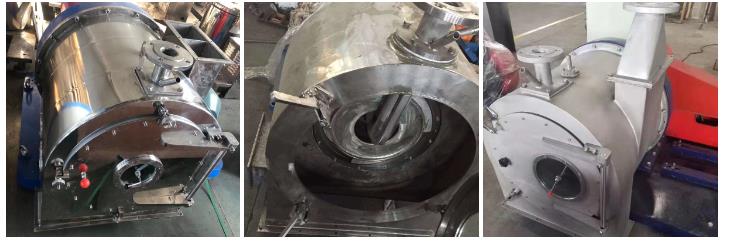

Details Images
Product structure principle:
Horizontal two-stage piston push centrifuge is driven by the main motor inside and outside the drum rotation at full speed, the material from the continuous introduction of the feed pipe, evenly distributed to the filter drum wall within the inner drum, the role of centrifugal force Under the liquid material through the filter and the drum wall filter discharge through the drain pipe machine, the solid phase interception of the inner drum to form a ring cake layer. While the inner and outer drum rotate at the same speed, the inner drum rotates axially reciprocatingly under the impelling of the piston, so the inner drum drum pushes the inner drum to intermittently move outward to discharge the inner drum and enter the outer rotor Drum further separated and the formation of annular cake layer, the inner drum outer end is to promote the outer drum filter cake layer intermittently move outwards to discharge the outer drum, the scraper slot discharge machine.
 |  |
