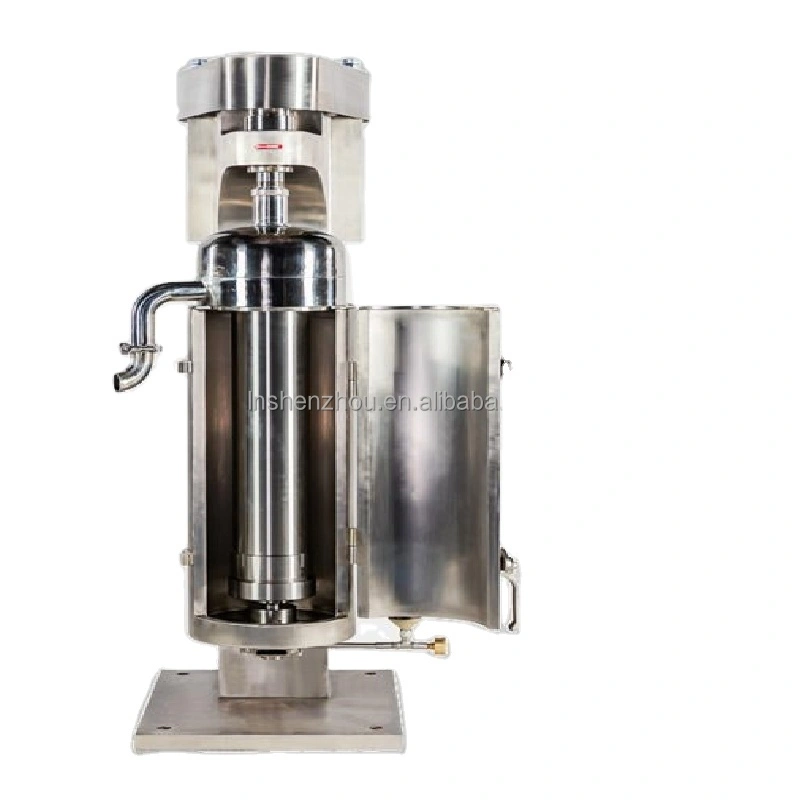

Shenzhou - High-speed Tubular Centrifuge Used For brewer yeasts Separation Tubular centrifuge
Driven by business needs, we have been constantly optimizing and upgrading our technologies.These technologies contribute to our high-efficiency manufacturing process.In the application field(s) of Separation Equipment, the Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge proves to be very useful.
5.0
Customization:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
Working principle of Tubular Separator
Consist of the machine cover, driving device, drum, liquid catch tray, the liquid inlet and bearing seat, this separator with high running speed, belongs to sedimentation separator. The upper drum is a flexible shaft, while the lower is damping floating bearing. The main shaft is connected by a coupling buffer and a passive wheel. Motor transmit power from the transmission belt and tension wheel to passive wheel, to drive the drum rotate around its own axis with high-speed, and thus form a strong centrifugal force field. All the materials are fed from liquid inlet under the bottom, and flow upward along the drum wall by centrifugal force fluid. During this process, the dense liquid phase forms the outer ring, and the small liquid phase forms the inner ring, which separately flow to respective liquid outlet mounted on the upper drum.
When the thickness of the sediment affect the liquid phase clarification or the capacity of the rated slag weight in the drum, the dregs of the drum wall should be removed manually after the shutdown.
Consist of the machine cover, driving device, drum, liquid catch tray, the liquid inlet and bearing seat, this separator with high running speed, belongs to sedimentation separator. The upper drum is a flexible shaft, while the lower is damping floating bearing. The main shaft is connected by a coupling buffer and a passive wheel. Motor transmit power from the transmission belt and tension wheel to passive wheel, to drive the drum rotate around its own axis with high-speed, and thus form a strong centrifugal force field. All the materials are fed from liquid inlet under the bottom, and flow upward along the drum wall by centrifugal force fluid. During this process, the dense liquid phase forms the outer ring, and the small liquid phase forms the inner ring, which separately flow to respective liquid outlet mounted on the upper drum.
When the thickness of the sediment affect the liquid phase clarification or the capacity of the rated slag weight in the drum, the dregs of the drum wall should be removed manually after the shutdown.

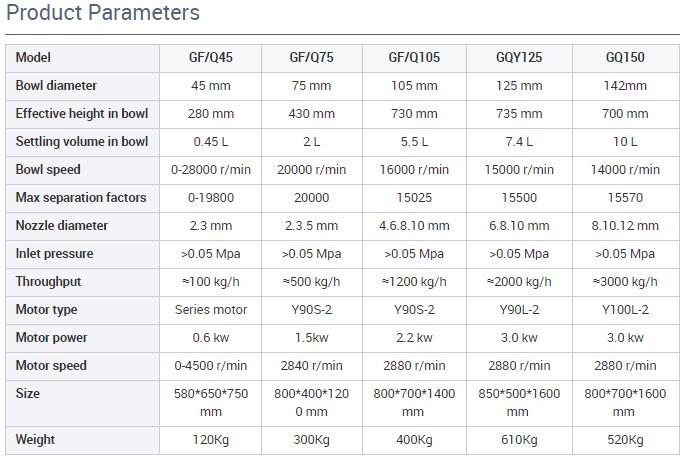

Product parameters
Classification of tubular centrifuges
GF-for separation:
Heavy liquid forms outer ring and light liquid forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little solid is settled on the wall of the bowl and discharged manually after the machine stops.
GQ-for clarification:
Heavy solid is deposited on the inner wall of the bowl，and forms the sludge. And it will be discharged by manual after the machine stops. The clear liquid flows out of outlet from the top of the bowl. It is mainly used for separating all kinds of suspension difficult to be separated, especially suitable for separation of solid-liquid suspension with concentration, heavy viscosity, fine particles and very small differential gravity of the two phases.
Main Structure
Details
Product competitive advantage:
Customer’s working Show
service
Pre-sale Service
1. Provide 24-hour technical consulting reply;
2. Provide professional quoted price;
3. Provide detailed product performance specification;
4. According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper
product types;
5. Provide other corollary equipment according to client requirements.
In-sale Service
1. Begin to supervise from raw material, its qualified rate can reach to 100%;
2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%;
3. Provide product’s inspection record of key junctures to customers;
4. Provide production schedule photos to customers at regular intervals;
5. Package and transport products strictly accordance with export standard;
6. Provide transportation schedule information to clients timely.
1. Provide 24-hour technical consulting reply;
2. Provide professional quoted price;
3. Provide detailed product performance specification;
4. According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper
product types;
5. Provide other corollary equipment according to client requirements.
In-sale Service
1. Begin to supervise from raw material, its qualified rate can reach to 100%;
2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%;
3. Provide product’s inspection record of key junctures to customers;
4. Provide production schedule photos to customers at regular intervals;
5. Package and transport products strictly accordance with export standard;
6. Provide transportation schedule information to clients timely.
After-sale Service
1. Provide targeted installation video;
2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
5. If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour
and provide solution or send staff to spot within 24 hours after receiving maintenance notification.
6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information;
7. Provide assistant service if product is damaged during transportation.
1. Provide targeted installation video;
2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
5. If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour
and provide solution or send staff to spot within 24 hours after receiving maintenance notification.
6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information;
7. Provide assistant service if product is damaged during transportation.
fAQ
1. What certificates do you have?
We can provide CE, ISO 9001, etc
2. What is the warranty period of the equipment?
Normally 1 year warranty.
3. Can we visit your factory?
Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by
telephone video conference.
4. What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
5. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.
We can provide CE, ISO 9001, etc
2. What is the warranty period of the equipment?
Normally 1 year warranty.
3. Can we visit your factory?
Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by
telephone video conference.
4. What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
5. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.
