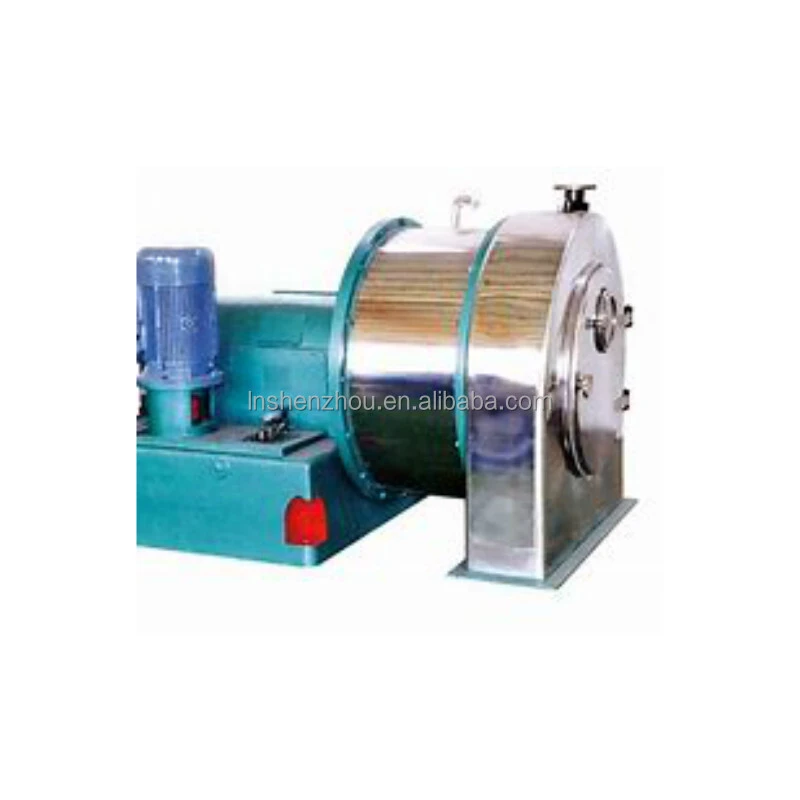

Shenzhou - Sea salt production line centrifugal filter LWL450 worm centrifuge machine

Performance and Use:
Horizontal screen scroll centrifuge has the advantages of large production capacity, good solid phase dehydration, low energy consumption, and lightweight.

Widely used in chemical, food, pharmaceutical, and mining industries, and is suitable for the separation of solid-phase
suspensions containing coarse crystals and short fibers.

Especially suitable for separating suspension of easy dehydration and high concentration.

1. Base
2. Frame
3. thin oil lubrication assembly
4. Differential
5. Speed pulley
6. Drum belt pulley
7. Ball bearing
8. NU bearing
9. Drum
10. Spiral drum
11. Steam pipe
12. Discharge casing
13. Feeding pipe
14. Observation window
15. washing tube (double)
16. Clearance adjustment
17. Mesh

1. Strong pertinence to materials, the crystal size is between 0.05-10mm
2. Continuous operation, Screw unloading, Large production
3. The solid phase has a low moisture content, good washing effect, and high separation efficiency
4. Dedicated filter screen, material optional, filter screen thickness up to 0.5mm, longer service life
5. Stepless speed regulation of drum speed
6. Simple and reliable lubrication
7. Compact structure, easy operation, and maintenance
8. Safety protection: speed detection, oil-free protection, motor overload and overheat protection, spiral zero differential
protection.

★LWL series has hundreds of cases in the waste salt treatment industry, including sodium chloride, sodium sulfate, ammonium chloride, ammonium sulfate, ferric chloride, and ferrous chloride. In addition, we have rich experience in plant extraction (tea, ginkgo, iron powder, kudzu root, hemp leaves, etc.), magnesium sulfate, copper sulfate, sodium gluconate, sodium metabisulfite, marine snowmaking, and other industries. Welcome customers from related industries to inquire.

The improvements made by SHENZHOU in ammonium sulfate, ammonium chloride, ammonium thiocyanate, sodium chloride, and other waste liquid salt extraction equipment:

1. The feeding pipe device is improved, the cloth is more uniform, and the equipment operation is more stable;

2. The lubrication system is improved, the lubrication is more adequate and reasonable, and the bearing weight is increased;

3. Improve the bearing sealing system and adopt labyrinth oil seals to prevent mother liquid from entering the lubrication system;

4. The drum spiral is treated with nitriding and wear-resisting, and the service life is longer.

5. The discharging system is improved, and a scraper device is added to prevent the silo from accumulating.

Under full speed operation: continuous feeding, washing, dewatering, unloading and other technological operations of the
suspension.

The suspension enters the spiral cavity from the feed pipe and enters the drum through the nozzle at the bottom of the screw head near the bottom of the cone.
Under the action of the centrifugal force field, the liquid phase in the slurry is separated by the screen set on the rotating
wall When going out, the solid particles are trapped in the drum; at the same time, the solid particles in the drum move from the small end of the drum to the big end of the drum under the action of centrifugal force and the differential speed between the spiral and the drum.

During the movement, the centrifugal force increases rapidly due to the increase of the rotation diameter. The solid phase changes from the high moisture content solid phase when it initially enters to the low moisture content solid phase when it is discharged from the drum, thus realizing automatic and continuous solid and liquid phase separation.

*Aiming at the shortcomings of traditional worm screw screen centrifuges, shenzhou has developed Y series crash-free clean horizontal screw screen centrifuges after 5 years of research and development.

Main Features
1. The parts in contact with materials, such as the drum and screw, can be made of corrosion-resistant stainless steel or titanium alloy.
2. Dedicated filter screen with optional material, the thickness of the filter screen can reach 0.5mm, the mesh density is
optional 10-250 mesh, and the service life is longer.
3. The drum speed is the variable frequency and steplessly adjustable.
4. Simple and reliable circulating oil lubrication method.
5. Safety protection: speed detection, oil-free protection, motor overload and overheat protection, spiral zero differential
protection.

Material selection:
The material of the part in contact between the centrifuge and the material can be selected from stainless steel (304, 316L, 2205, etc.), Hastelloy, titanium, and other corrosion-resistant materials according to customer requirements.

Configuration selection:
Explosion-proof configuration, gas-liquid separation device at the discharge port, washing device, vibration, and main bearing temperature monitoring protection, etc.
