Shenzhou - Centrifugal Clarifier for Juice Centrifuge & Separator
The Shenzhou Centrifugal Clarifier is a state-of-the-art centrifuge and separator designed specifically for clarifying juices. This innovative equipment utilizes centrifugal force to separate solids from liquids efficiently and effectively, ensuring high clarity and purity of the final juice product. With its robust construction and advanced technology, the Shenzhou Centrifugal Clarifier offers superior performance and reliability in juice processing applications. It is capable of handling a wide range of juice types, including citrus, apple, and other fruit juices, as well as vegetable juices. The centrifuge's precise separation mechanism ensures minimal product loss and maximizes yield, contributing to cost savings and improved efficiency in juice production. By investing in the Shenzhou Centrifugal Clarifier, juice manufacturers can achieve consistently high-quality clarified juices that meet industry standards and customer expectations, making it an essential asset for juice processing facilities seeking optimal results and productivity.
In the manufacturing process, the technologies are adopted so as to make sure the process goes smoothly and efficiently.Its application range is very extensive. In the application field(s) of Separation Equipment, centrifugal clarifier for juices is widely used.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
With the effort of excellent designers,centrifugal clarifier for juices has unique style in its shape and appearance. We have been constantly developing new technologies to manufacture value-added centrifugal clarifier for juices.It can be widely found in the application field(s) of Separation Equipment. In the future,centrifugal clarifier for juices will increase more capital and technology investment to continuously improve the comprehensive competitiveness of the enterprise, and strive to remain invincible in the market forever.
| Place of Origin: | Liaoning, China | Type: | Centrifuge |
| Product Type: | Soap | Condition: | New |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2021 | Warranty of core components: | 2 years |
| Core Components: | Bearing | Brand Name: | LYSZ |
| Voltage: | Customized | Weight: | 220 |
| Dimension(L*W*H): | 580*650*750 mm | Warranty: | 2 years |
| Key Selling Points: | High Productivity | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Showroom Location: | None |
Product Description

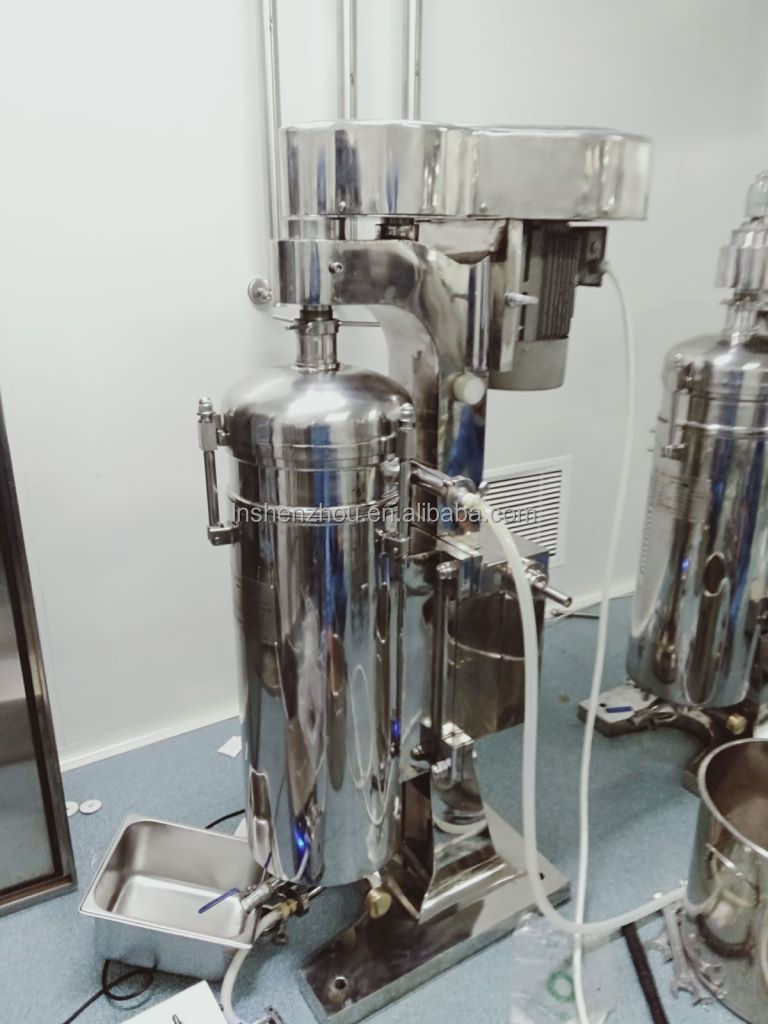

Tubular Centrifuge, also called Tubular Separator, is a kind of fine separation equipment suitable for suspensions with thin concentration, fine particles, and small density difference Solid-liquid separation, or liquid-liquid-solid separation.
Tubular Centrifuge, also called Tubular Separator, is a kind of fine separation equipment suitable for suspensions with thin concentration, fine particles, and small density difference solid-liquid separation, or liquid-liquid-solid separation. It is indispensable equipment for pharmaceutical, food, chemical, biological product, fermentation broth, beverages, blood products and other industries. Its working principle is that materials with different specific gravity are subject to different centrifugal forces when rotating at high speed, so as to achieve the purpose of separation.
TUBULAR CENTRIFUGE CLASSIFICATION
SZGQ Clarification Tubular Centrifuge
(Liquid phase-solid phase)
G-Tubular Type Q-Clarification Type:
3.The solid phase is relatively heavier, and it will settle inside the bowl. After the solid is collected, turn off the centrifuge, and manually remove the rotor for slag cleaning;
4. After cleaning the slag, you need to reset the rotor installation, and then start the next separation process.
The GQ type is mainly used for a variety of difficult-to-separate suspensions in the separation industry, and is especially suitable for the separation of solid-liquid two-phase separations with thin concentration, fine particles and small specific gravity differences.
SZGQ Working Principle:
1. The centrifuge rotates at a high speed to reach a suitable working speed (the speed can be adjusted via the control panel), and the mixed suspension is continuously fed from the bottom, and the Suspension are layered under the action of Centrifugal force;
2. The density of the liquid in the suspension is relatively small, and it spirally rises gradually from bottom to top and then continuously discharges from the clear liquid outlet on the upper part of the rotor;
2. The density of the liquid in the suspension is relatively small, and it spirally rises gradually from bottom to top and then continuously discharges from the clear liquid outlet on the upper part of the rotor;

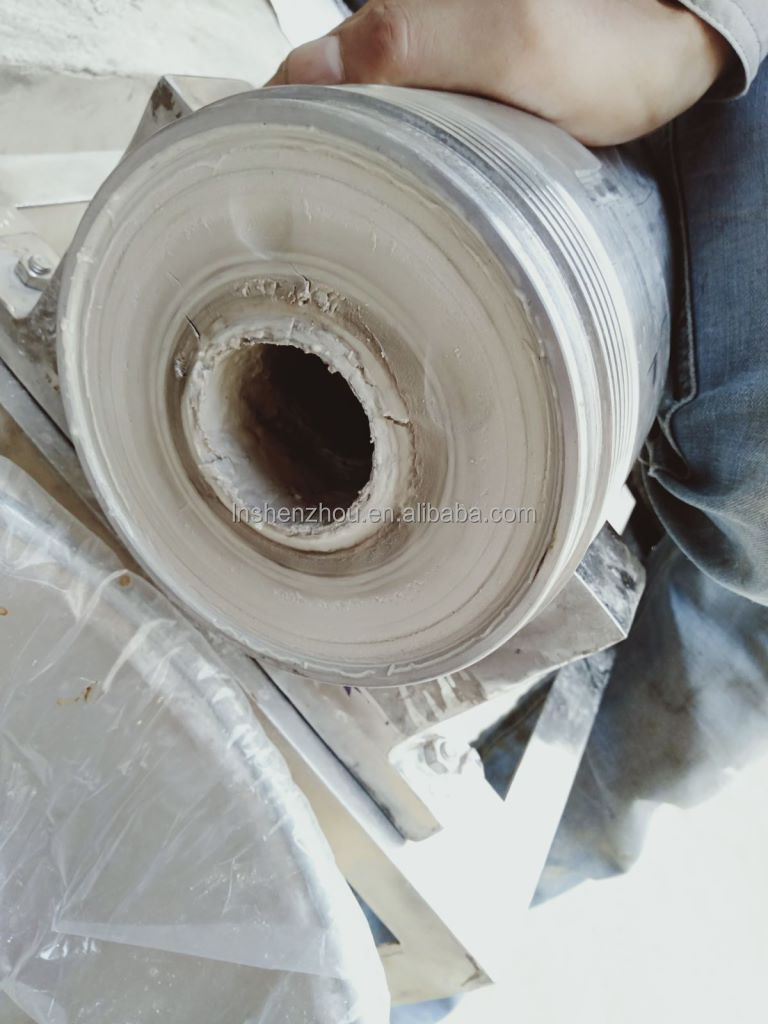

3.The solid phase is relatively heavier, and it will settle inside the bowl. After the solid is collected, turn off the centrifuge, and manually remove the rotor for slag cleaning;
4. After cleaning the slag, you need to reset the rotor installation, and then start the next separation process.
SZ GF Separation Tubular Centrifuge
(Light liquid-heavy liquid-solid phase)
G-Tubular type F-Separation Type
The GF type is mainly used for various difficult-to-separate suspensions in the separation industry, and is especially suitable for liquid-liquid separation with small specific gravity differences and liquid-liquid-solid three-phase separation with a small amount of impurities.

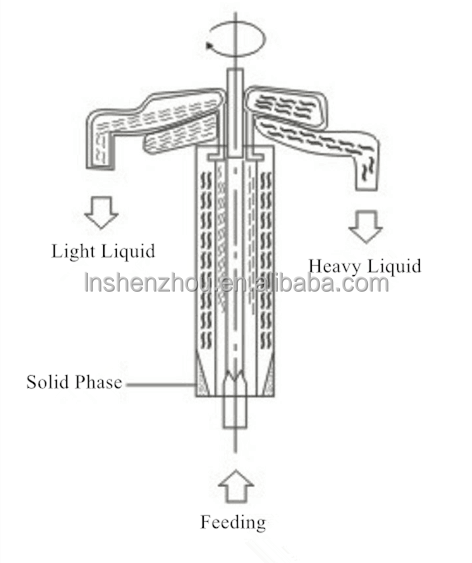

SZGF Working Principle
1.The centrifuge rotates at a high speed to reach a suitable working speed (the speed can be adjusted control panel), and the mixed suspension is continuously fed from the bottom, and the suspension are layered under the action of centrifugal force;
2.The two liquids in the suspension have a difference in density and are incompatible with each other. The liquid phase spirally rises gradually from bottom to top to the upper part of the rotor. The liquid phase with a smaller density is discharged from the light liquid outlet, and the liquid phase with a larger density is discharged from the heavy liquid outlet;
3.The solid phase density is the largest, and it will settle inside the bowl. After the solids are collected, turn off the centrifuge, and manually remove the rotor for slag cleaning;
4. After cleaning the slag, need to re-install the rotor, and then start the next separation process.
2.The two liquids in the suspension have a difference in density and are incompatible with each other. The liquid phase spirally rises gradually from bottom to top to the upper part of the rotor. The liquid phase with a smaller density is discharged from the light liquid outlet, and the liquid phase with a larger density is discharged from the heavy liquid outlet;
3.The solid phase density is the largest, and it will settle inside the bowl. After the solids are collected, turn off the centrifuge, and manually remove the rotor for slag cleaning;
4. After cleaning the slag, need to re-install the rotor, and then start the next separation process.
Specification
Model | GF/GQ75 | GF/GQ105 | GQ/GF125 | GQ/GQ150 | |||
Diameter(mm) | 75 | 105 | 125 | 147 | |||
Height (mm) | 450 | 730 | 730 | 730 | |||
Sedimentation volume（L) | 2.67 | 6 | 8 | 10 | |||
Max speed（r/min) | 20000 | 16800 | 15800 | 14500 | |||
Max separation factor | 21000 | 15300 | 16300 | 15600 | |||
Inlet nozzle diameter (mm) | 3/4 | 4/6/8 | 4/6/8 | 4/6/8/10 | |||
Material inlet pressure (Mpa) | ≥0.05 | ||||||
Capacity (Water capacity)L | 670 | 1600 | 2200 | 3200 | |||
Motor model | 3 phase two pole motor | 3 phase two pole motor | 3 phase two pole motor | ||||
Motor power (kw) | 1.5 | 2.2 | 3 | 3 | |||
Machine dimension (mm) | 500*700*1300 | 600*1000*1600 | 600*1000*1600 | 600*1000*1600 | |||
Machine weight (kg) | 260 | 490 | 510 | 550 | |||
Machine Features
* The enclosure shape is of square shape and round shape.
* Stainless steel 304 is used for the surface wrapping of the enclosure.
* Stainless steel 316L for the parts in contact with the suspension.

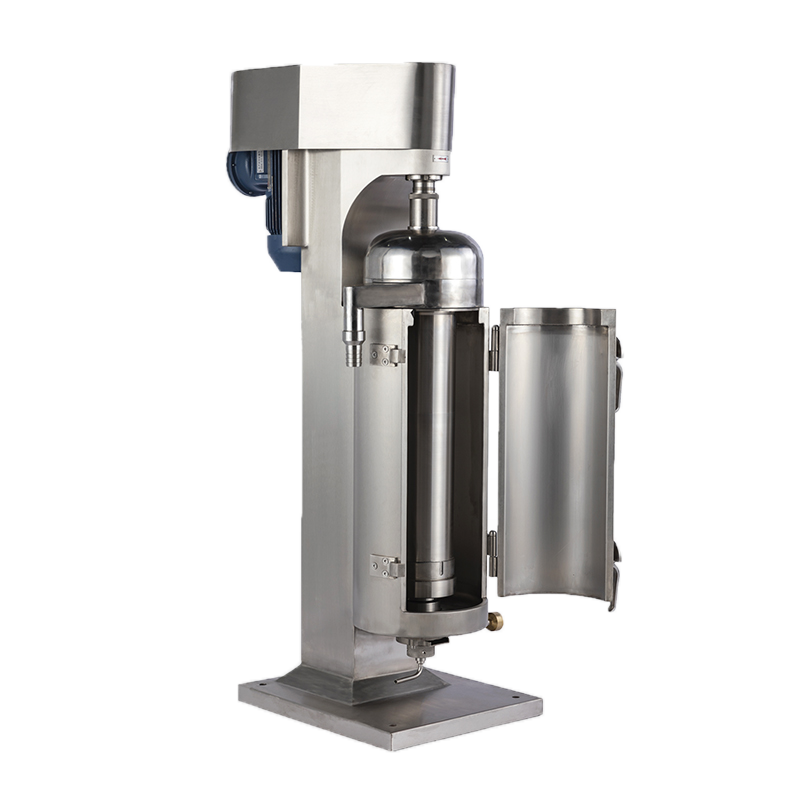

* The enclosure body with door-opening design is convenient for disassembly and assembly of the bowl, reduces labor intensity and the separation effect is not affected.
* Optional VFD control cabinet, start by inverter, adjustable speed, reduce the starting current and the degree of damage to the transmission components and wear parts, and improve the service life of the equipment and the motor.
* The control cabinet is optionally equipped with PLC and touch screen to display the speed and temperature.
* According to the field of use, explosion-proof type and cooling type with cooling coil are available.
* Mobile integrated base is available.
* Stainless steel 304 is used for the surface wrapping of the enclosure.
* Stainless steel 316L for the parts in contact with the suspension.
* The enclosure body with door-opening design is convenient for disassembly and assembly of the bowl, reduces labor intensity and the separation effect is not affected.
* Optional VFD control cabinet, start by inverter, adjustable speed, reduce the starting current and the degree of damage to the transmission components and wear parts, and improve the service life of the equipment and the motor.
* The control cabinet is optionally equipped with PLC and touch screen to display the speed and temperature.
* According to the field of use, explosion-proof type and cooling type with cooling coil are available.
* Mobile integrated base is available.

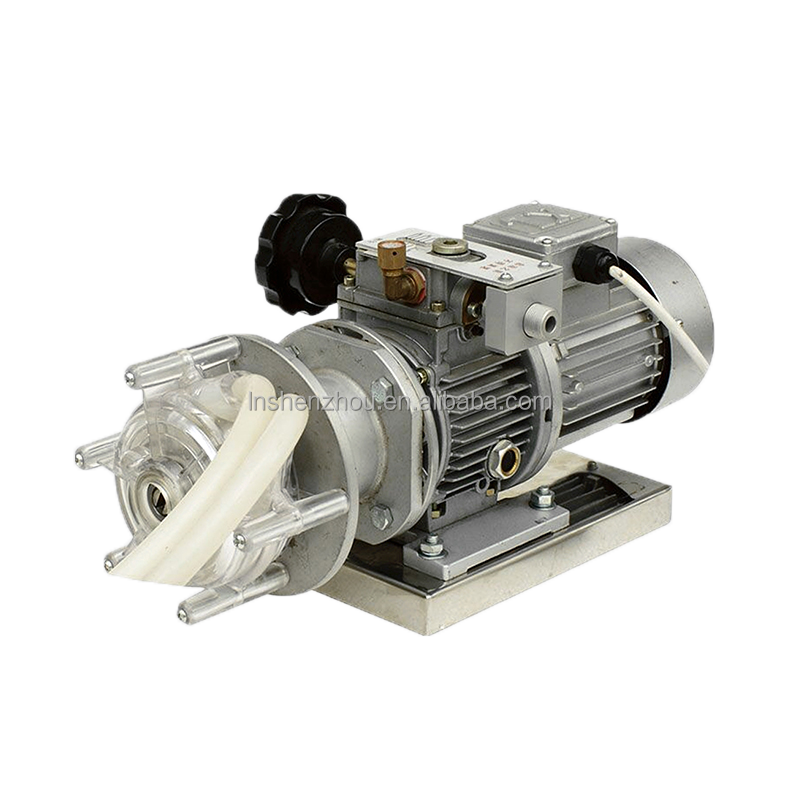

TUBULAR CENTRIFUGE FEEDING PUMP
Model | SZRB-10 |
Speed (RPM) | 200-700 |
Flow (L/min) | 4-10 |
Pressure (kg) | 1.5 |
Motor Power (w) | 220 |
Hose inner/outer Dia. (mm) | Φ10x16.5 |
Weight (kg) | 12 |
Dimension (mm) | 460x200x210 |
peristaltic pump is used to transfer liquid by peristaltic rubber hose caused by rotating roller. The conveyed liquid only flows in the rubber hose, does not contact with other parts of the pump, and has no cleaning dead angle, so as to avoid possible pollution.
The material of the hose is strictly selected and made of non-toxic silicone rubber or polychloroene material, which meets the hygienic standards in biochemical and medical fields. This kind of pump is with novel design, simple structure, step-less speed change to adjust the flow, suitable for working in humid environment, easy to operate, and easy to clean and disinfect.
Peristaltic pump is widely used in hospitals, biochemistry and other industries to pump blood and other liquids. It can also be used for transporting liquids in other industries. It is suitable to be used as a feed pump for high-speed tubular centrifuges.
The material of the hose is strictly selected and made of non-toxic silicone rubber or polychloroene material, which meets the hygienic standards in biochemical and medical fields. This kind of pump is with novel design, simple structure, step-less speed change to adjust the flow, suitable for working in humid environment, easy to operate, and easy to clean and disinfect.
Peristaltic pump is widely used in hospitals, biochemistry and other industries to pump blood and other liquids. It can also be used for transporting liquids in other industries. It is suitable to be used as a feed pump for high-speed tubular centrifuges.
Packing & Delivery
wooden case
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
