Shenzhou - Tricanter Centrifuges Decanter centrifuge

Shenzhou - Tricanter Centrifuges Decanter centrifuge manufacturer

Shenzhou - Tricanter Centrifuges Decanter centrifuge factory

Shenzhou - Tricanter Centrifuges Decanter centrifuge

The adoption of technology allows to deliver leading production efficiency.So Tricanter Centrifuges stands for brand-name products in the field of Decanter centrifuge.

The bowl and the screw make high-speed rotation with a certain differential speed between them. The feeding material will enter the bowl from the feed tube. Under the action of centrifugal force field, the liquids of high specific weight will accumlate on the inner walls of the bowl, and be discharged through the centripetal pump or overflow plate. The liquids of low specific weight will form an inner liquid ring, stick to the surfaces of heavy liquids, and be discharged from the overflow channel. Under the action of the spiral pusher, the solids in the feed will be continuously pushed to the taper end of the bowl and discharged from the residue outlet after going through the drying area.

SEND INQUIRY NOW

Model Number:: LSJ-W

shipping:: Support Sea freight · Land freight

Customization:: Customized logo (Min. Order: 1 Units) , Customized packaging (Min. Order: 1 Units) , Graphic customization (Min. Order: 1 Units)

SEND INQUIRY NOW

Product Details

Thanks to the efforts of Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd's employees, our development work has been carried out smoothly and efficiently. Our Tricanter Centrifuges is developed to lead the industry trend with its new features and unique appearance. Separation Equipment has won high attention and praise from the industry and market. For product inquiries, technical support, and other questions, you can reach us in any way stated on our 'Contact Us' page.

Place of Origin:	China	Type:	Centrifuge
Product Type:	Plant	Condition:	New
Video outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Warranty of core components:	1 Year
Core Components:	PLC, Bearing, Gearbox, Motor	Brand Name:	Shenzhou
Voltage:	380V/50HZ,3Phase	Power:	Model
Weight:	Model	Dimension(LWH):	Model
Warranty:	1 Year	Key Selling Points:	Easy to Operate
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works , Food & Beverage Shops, Chemical plant, pharmaceutical plant	Showroom Location:	Thailand, Sri Lanka
After-sales Service Provided:	Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support	After Warranty Service:	Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:	Thailand, Sri Lanka	Certification:	GMP/CE

Product Description

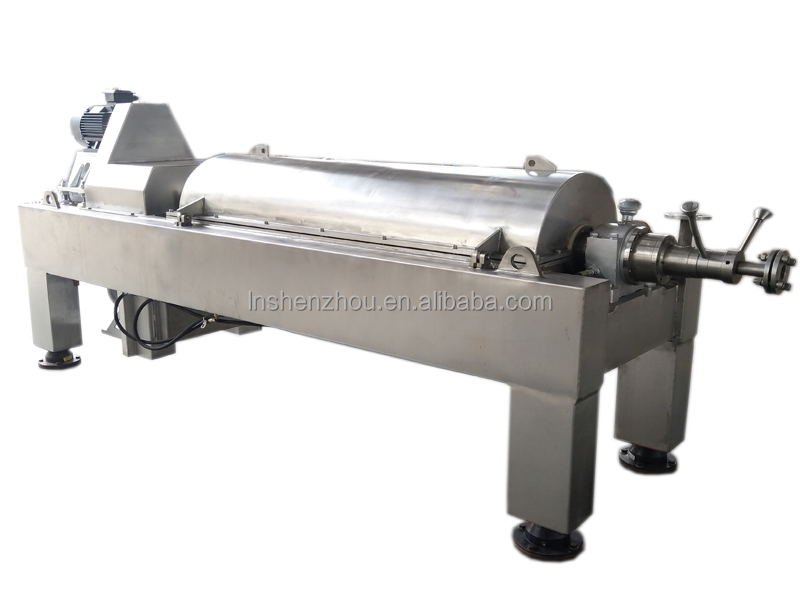

tricanter centrifuge

Technology

In order to fully understand how a tricanter centrifuge operates, we must first define what a centrifuge does. In many industrial applications, solid material often mixes with liquids, contaminating water supplies, creating sludge that is expensive for disposal, or contaminating valuable products.
Let's dive into the details of what tricanter centrifuges are, the industries they benefit, advantages, disadvantages and more.

What is a Tricanter Centrifuge?
In the typical separation process, solids are separated from liquids. This scenario can often be accomplished by using a decanter centrifuge. However, in some situations there are 2 liquids of different densities that need to be separated in addition to the solids.
Enter the right solution: Tricanter centrifuges (also known as 3-phase centrifuges).
Tricanter centrifuges allow for continuous separation of three phases (solid-liquid-liquid) in one process. Having a continuous separation of three phases in a single process is extremely beneficial in many applications where there is value in recovering a particular product or products from a multi-phased mixture.
What Industries Do They Benefit?
Tricanter centrifuges are useful separating solids and two liquids of different densities, and are valuable components of the tank cleaning, oil processing, metal recycling, and hemp industries just to name a few. Tricanters allow these industries to separate out components of a mixture of solid and 2 liquids of different densities such as oil and water.
Moreover, with a centrifuge, companies operating in these industries are more efficient and can provide a beneficial return of valuable materials through 3-phase separation.
For example, in the tank cleaning industry, industrial service companies using tricanters are able to create dryer solids for
disposal, water that can be processed on site in the refinery, and return valuable oil back to the refinery

Operating principle:
The purpose of separation is to separate out substances with different mass ratios from mixed fluid.Separation forms included solid-liquid separation,liquid-liquid separation and liquid-liquid-solid separation.
When mixed fluid enters rotating bowl of centrifuge through feed tube ,solids with larger density would rapidly deposit on inner wall of the bowl,forced by centrifugal acceleration.Then spiral pusher pushed deposited solids to taper end of the bowl,and discharges them out of centrifuge from residual outlet.Meanwhile ,liquid phase with smaller density forms a liquid ring layer and discharges from bowl through overflow port,the bowl and spiral pusher run at a high speed simultaneously ,for there exists speed discrepancy,deposited solids on the wall of bowl could be conveyed to residue outlet by spiral pusher.This separation process carry out continuously.

Separation technique
Feeding-gravitational separation-liquid discharge-sediment discharge.
Separation effect factors Centrifuging factor ,length to diameter ratio of cavity ,depth of fluid pool.
Field control
Bowl rotating speed ,rotative speed difference,between,spiral pusher and bowl depth of liquid pool.

In the production of surimi, the shredded fish fillets will go through two to three cleaning processes. In this process, impurities such as blood and fat are washed away. The washing water is usually roughly filtered through a rotating sieve. In traditional surimi production, the dehydration of fish meat is done by a screw press. The meat is then treated with antifreeze and deep-frozen. This surimi production method has many disadvantages: Different washing stages and screw pressing process lead to a large amount of fish fiber loss 1.Need a lot of cleaning water 2.Huge space requirement 3.The raw material is easy to be infected with bacteria The Shenzhou decanter centrifuge can solve all the above problems. In the production of surimi, the decanter centrifuge can not only recover the fish meat from the washing water, but also replace the screw press. In this way, the output rate of the surimi production process can be significantly improved.

Advantages and Limitations

The use of tricanter centrifuges for a three-phase separation may have several pros and cons.
Advantages
1. Reduced Processing Time
Tricanter centrifuges allow for faster and more efficient separation than other technologies such as settling tanks and skimmers.
2. Fast commissioning and start-up
Not only is the device easy to install and fast at starting up and shutting down, but also requires a small area for operation
compared to other competitive processes.
3. Size Versatility
Tricanter centrifuges (3 Phase Centrifuge) are versatile, different diameters of the cylindrical bowl section and the cone angle can be selected for different applications.
Also, centrifuge technology allows for adjustments in processing and bowl speed to improve separation and provide a cleaner product on the back end of the process. Other competitive technologies don’t allow for this fine tuning.
4. Higher Throughput Capacity
Depending on the size of the machine centrifuges can offer a higher throughput than other technologies.
Limitations
1. Noise and Vibration
The machine can be very noisy
2. High-Energy Consumption
The device has a high-energy consumption due to large motors and pumps needed to run the unit.
3. High equipment capital costs
The tricanter centrifuge has high equipment capital costs. But with this cost comes increased efficiency allowing this cost to be recovered over time.

Scope of application:

Applications Overview
Manufacturing Foodstuffs
The foodstuffs industry offers a wide range of applications for mechanical separation technology. SHENZHOU centrifuges are in accordance with the quality standards and expectations of both consumers and foodstuffs producers.

We produce centrifuges - Made in China - for numerous areas in the foodstuffs industry, such as the production of wheat starch, soya milk or soya proteins. shenzhou also satisfies the most exacting requirements when it comes to producing lactose and casein,removing dust from whey or drying okara. Chemicals, Petrochemicals and White, Industrial Biotechnology Both in chemicals and white biotechnology, mechanical separation technology represents an important component in many processes.
SHENZHOU decanters and separators treat liquids, separate liquid blends, classify or dewater solids and extract constituents.

In the petrochemicals industry, dewatering PVC plays an important role. PVC dewatered using the SHENZHOU decanter has a lower residual moisture level, which means it saves costs during subsequent thermal drying.
Separating Plastics - Plastics Recycling Centrifuges also play an important role in the separation of plastics and plastics recycling. In particular, the Decanter developed by Shenzhou provides economical plastics recycling by separating different types of plastic.

Pharmaceuticals
Algae are the precursors for many different branches of industry Shenzhou offers an innovative process for high-efficiency algae harvest. The Sedicanter dewaters the concentrated algae to 22 to 25% solid content. Only this special decanter centrifuge is capable of efficiently concentrating the fine and soft algae cells.

Why Use Centrifuges to Clean Produced Water?
As the oil and gas industry moves toward produced water recycling for fracking, it is recognized that produced water must undergo several treatments in order to be reused safely.
Oil removal is one of the treatments produced water must undergo; the oil from produced water has a value if treated and processed to meet the required BS&W (Basic Sediment & Water) for resale.
Including a 3-phase centrifuge in the produced water cleaning process, enables for oil to be recovered faster than the typical separation methods

Specification

Model	Diameter(mm)	Lenght(mm)	Max speed	L/D ratio	G-force	Capacity(m3/h)	Main motor power(Kw)	Weight(kg)	Dimension (mm)
LW250*1000	250	1000	5000	4	2722	0.5-5	7.5	950	21201250680
LW300*900	300	900	4200	3	2964	1-6	11	1160	21501300900
LW300*1200	300	1200	4000	4	2784	2-6	11	1350	24501300900
LW355*1160	355	1160	3600	3.3	2576	2-8	15	1400	24701350830
LW355*1460	355	1460	3600	4	2576	2-10	15	1800	27501350830
LW400*1200	400	1200	3200	3	2294	3-12	18.5	1800	273016001080
LW400*1600	400	1600	3000	4	2016	3-15	22	2000	313016001080
LW450*1800	450	1800	2800	4	1976	4-25	37	2500	332017001130
LW500*2000	500	2000	2800	4	1750	5-35	45	4000	352018001170
LW530*1855	530	1855	2600	3.5	2006	5-38	55	4680	388513501600
LW530*2120	530	2120	2400	4	1709	5-40	55	4800	415013501600
LW550*2000	550	2000	2800	4	2414	6-40	55	5700	457013801600
LW650*1950	650	1950	2200	3	1761	6-45	75	5000	484015101720
LW650*2600	650	2600	2000	4	1456	6-65	90	6000	549015101720
LW720*2160	720	2160	2000	3	1612	7-80	120	6000	520016001800
LW720*2880	720	2880	2000	4	1306	7-90	120	8000	310016001800
LW800*2400	800	2400	1800	3	1451	20-100	150	12000	582020001300
LW800*3200	800	3200	1800	4	1451	20-120	150	1300	710020001300

Main technical features

1. Industrial design

Whole machine set design follows concept of advanced industrial design,ensures stability,functionality and safety of whole machine.Also effectively absorbs shear force of dynamic load during operation.

2. Effectively ease resonance during rotating of bi-rotor

When centrifuge works,there is no obvious first-order and two-order resonance regions within designed speed range,meanwhile ,whole vibration intensity of bearing seat is definited within 2mm/s-4mm/s.All of this eliminates extra fatigue damage to components and assembly units from high frequency vibration during operation and sudden vibration when shut down.

3. Thoroughly eliminate phenomenon of liquid ring stalling

Phenomenon of liquid ring stalling happens during heavy duty boot or shutdown process of complete set machine,especially for LW550 and even larger models,It would makes bounce or wild shake,causes extra impact fatigue damage to main bearings,screw bearings and inner parts of rotary bowl.Fortunately ,our engineers have solved this problem thoroughly.
4. Unique technique adopt in main component work-blanks

The manufacturing methods of main component work-blanks are adopt centrifugal casting technique and overall mould-making forging technique,thoroughly avoid risks such as inter-granular corrosion and relaxation of residual stress release in welding joint.

5. Main bearing selection

We use origin bearings of international first-line brands such as SKF,FAG and so on.

6. Constant temperature detection

All fashioning components and assembly units are detected in constant temperature condition,to make sure of actual processing quality meets the requirements of designed precision accuracy.

7. Inter-change ability

Whole machine physical design and processing technique adopted in critical position,ensure all assembly units and bowls of the same centrifuge model interchangeable.It is not only easy to maintain ,but also greatly improve the reliability and safety of equipment.

8. Simplyand safely in bearing disassemblement

One layer of oil film is injected into contact surfaces between bearing and work-piece by high-
pressure,during disassemblement bearing from the machine.which would fundamentally eliminate friction within different parts.As a result,it would reduce 90% of pulling force and lower the risk of damage to high-precision parts when disassemble bearing.
9.Main bearing lubrication system
There are two kinds of lubrication system for specific product models :
A thin oil lubrication
* Oil pump offers an uninterruptedly power to ensure oil works circularly;
* Jet oil lubrication constantly clean and lubricate bearings and reduce temperature;
* Oil filter system ensure lubricant’s cleanliness;
* Oil pressure energy storage system ensure lubrication pump offers an extra oil supply(the pressure is no less than 0.4Mpa) for 5-6 minutes,when power fails accidentally;
* Constant temperature system is available.

B grease lubrication
* Adopt a grease with properties of extreme pressure resistance ,oxidation resistance ,abrasion resistance,water scour
resistance,corrosion-proof and high temperature resistance.
* Optional automatic grease system fills grease on main bearing at designed hours and quantity.

10. Main bearing BH device (patent design)

There are two spare safe bearings at either end of main bearing.When machine works well,they keep certain clearance from bearing inside track to chief axis.When unexpected condition occurs,main bearing got damaged or circle center deviation causing an amplitude of vibration reaches to designed clearance,safe bearings begin to work as main bearing Meanwhile,computer automatic control system would get a feedback of abnormal vibration value on bearing position immediately then activates emergency shutdown and goes a smooth shut down.This system protects machine free from damaging and ensure production safety.

11. GSRL feeding device (potent design)

New design of internal spiral core tube has got following achieves.Without reducing centrifugal acceleration,shorten triangle belt's traction time,reduce disorder of swirling flow and extend separation time.Meanwhile increases inner working pressure of centrifuge,and restrains liquid foaming.

Production workshop

Screw production1

Screw production2:

High speed dynamic balance detection1

High speed dynamic balance detection2

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1.What's your advantage? Why we choose you?
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use famouse good quality materials and the best production process

Q2.What's the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the
procedure is complex and the fee is high. You can also use Western Union and Paypal.

Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.

Q4.How long is the warranty period ?
A:12 months.
