Product Description

The equipment provided by Shenzhou Group Co., Ltd. is a new, advanced, mature, complete, safe and reliable equipment, and its technical performance meets the requirements in the technical accessories. The design, manufacture and quality of the LW150*650-N horizontal screw centrifuge are better than the standard of JB/T502-2004 "Screw Discharge Settling Centrifuge", and this product has passed the ISO9001-2000 quality system certification.

mechanical part

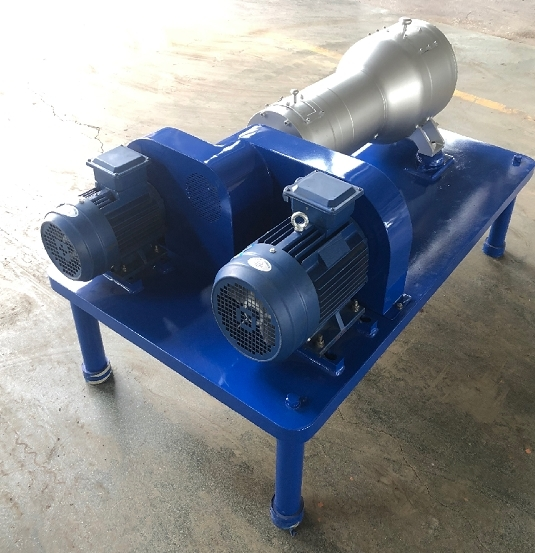

1. Supply Name: LW150*650-N Horizontal Screw Discharge Decanter Centrifuge

2. Description of horizontal screw discharge decanter centrifuge：

3. This machine is a counter-current horizontal screw discharge sedimentation centrifuge. The main machine is composed of a column-cone drum, a screw discharger, a differential system, a bearing seat, a machine base, a cover, a main and auxiliary motor and an electrical system. Its working principle is: the suspension enters the drum through the feeding pipe and the screw outlet, and under the action of the centrifugal force generated by the high-speed rotation, the solid particles with larger specific gravity are deposited on the inner wall of the drum, and move relative to the drum. The spiral blades continuously scrape the solid phase particles deposited on the inner wall of the drum and push them out of the slag discharge port, and the separated clear liquid flows out of the drum through the opening of the liquid layer regulating plate. The relative movement between the screw and the drum, that is, the differential speed is achieved through the differential, and its size is controlled by the auxiliary motor. The shell of the differential is connected with the drum, the output shaft is connected with the screw body, and the input shaft is connected with the auxiliary motor. The main motor drives the rotation of the drum and also drives the rotation of the differential housing, and the auxiliary motor controls the speed of the differential input shaft through the coupling of the coupling. The differential can transmit the torque to the screw according to a certain speed ratio, thus realizing the continuous separation process of the material by the centrifuge.

4. This machine adopts the most advanced special structure design in the world, and has the characteristics of better performance than ordinary centrifuges, larger processing capacity, better separation effect, energy saving, stability and reliability, and easy operation. This product has passed ISO9001: 2000 family quality system certification . The mechanical properties are higher than the standard of JB/T502-2004 "Spiral Settling Discharge Centrifuge".

5. 1.2 Technical Specifications of Horizontal Screw Discharge Decanter Centrifuge

6. 1.2.1Centrifuge separation performance parameters

7. Material properties

8. ○runnable mode:     24 hours continuous operation

9. 1.2.2Centrifuge technical parameters

10. ○Total length of centrifuge:     1260mm

11. ○Centrifuge width:     1250mm

12. ○Centrifuge height:     650mm

13. ○Centrifuge gross weight:     380kg

14. ○Drum inner diameter:       150mm

15. ○Aspect ratio:         4.33

16. ○Design speed:  Frequency conversion speed regulation below 6000r/min

17. ○Working speed:   Frequency conversion speed regulation below 5000r/min

18. ○Maximum Design Separation Factor:2621

19. ○Differential speed:         0.1～30r/min Stepless adjustable

20. ○Main motor power:      4kW  (380V/3/50HZ)YE2-112M-2 electric motor

21. ○Auxiliary motor power：    1.5kW(380V/3/50HZ) YE2-90S-2 electric motor

22. ○Motor protection class:    IP54

23. ○Motor insulation class:    E rank

24. ○Working noise:    ≤75dB(A)

25. ○No-load vibration intensity:    ≤4.5mm/s

26. ○The differential adopts a planetary gear structure with large bearing capacity, stable and reliable operation

27. ○Double motor double frequency conversion drive system, realize stepless adjustment of differential speed and energy feedback

28. ○The inner surface of the centrifuge drum is equipped with longitudinal stainless steel anti-friction strips, which can effectively prevent the inner wall of the drum from being worn, so as to facilitate the sludge to be pushed out.

29. ○Centrifuge supporting cleaning device

30.   Clean the centrifuge hood, drum, screw and other parts when the equipment is running or shutting down.

31. ○Centrifuge main bearing design life:   50000H

32. ○Tungsten carbide design life: 10000H

33. ○Centrifuge design life：     20 years

34. ○Lubrication method：    Main bearing: grease lubrication

35.                           Screw Bearings: Grease Lubricated

36.                           Differential: thin oil lubrication

37. ○Safety protection: safety cover, vibration protection, etc.

38. ○Centrifuge design life is more than 20 years

39. 1.3 Decanter material

40. ○The drum material:         304 Duplex Stainless Steel

41. ○The material of the screw unloader:   304

42. ○The feed port of the screw unloader: Tungsten carbide surfacing welding

43. ○Spiral discharger blade：    Tungsten carbide hardfacing

44. ○Slag outlet of conical cylinder: Inlaid with replaceable wear-resistant ceramic bushing

45. ○Longitudinal wear reducing strip on the inner surface of centrifuge drum: 304

46. ○The metal surface of the screw unloader (the part in contact with the material) is pickled to show the metal color

47. ○Base material:         304 stainless steel

48. ○Seat Surface: polishing

49. ○Material of parts in contact with sludge: 304

50. ○Material of machine cover, liquid outlet bucket and slag outlet bucket：AISI304

51. ○main bearing：Using German FAG bearings

52. ○Main seals：Import oil seal, material nitrile rubber

53. ○Triangular belt：Made in China
