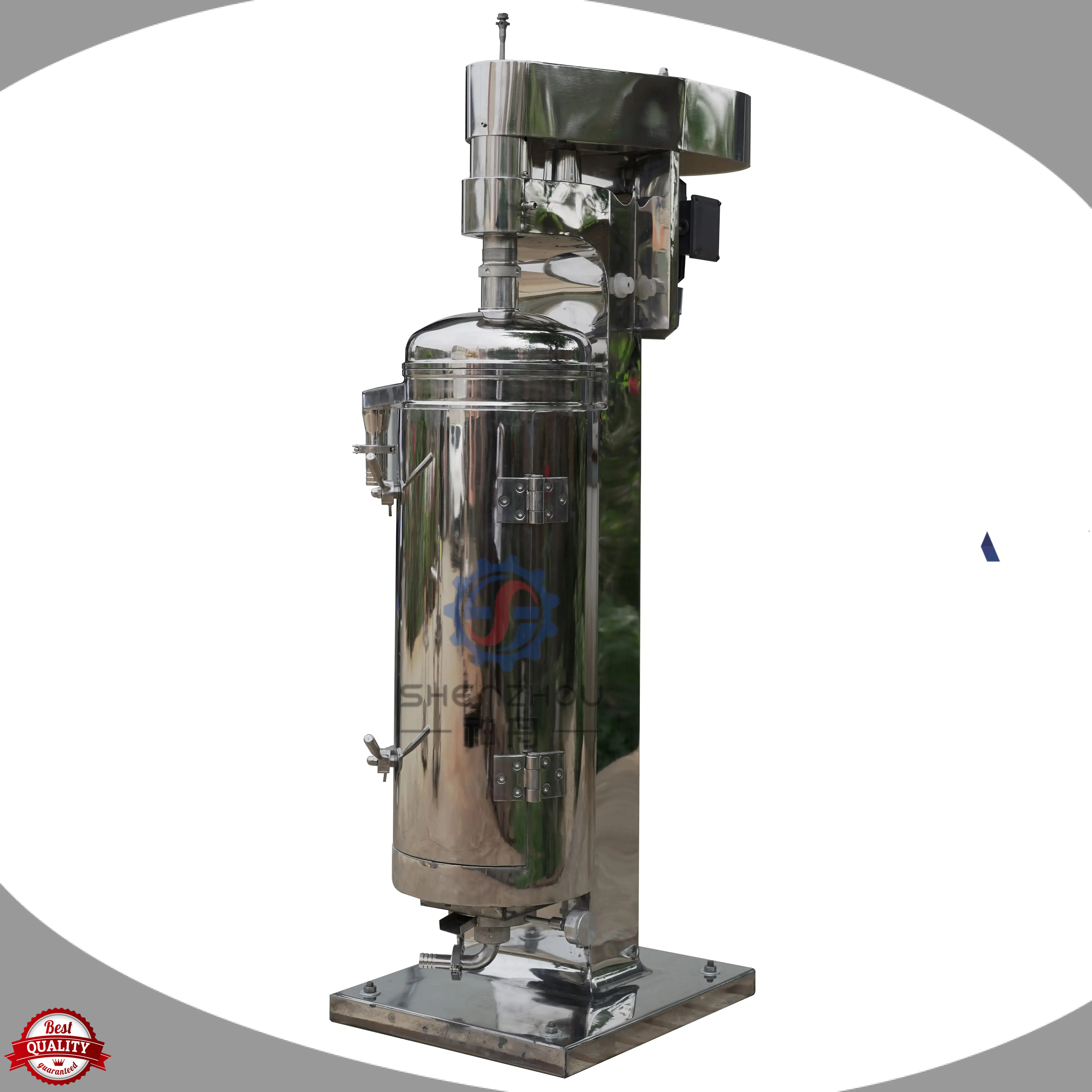

2 Phase Centrifuge: High Separation Factor & Continuous Operation
Tubular Continuous Centrifuge:
The tubular centrifuge is used primarily for the continuous separation of liquids from liquids or of very fine particles from liquids, although in some cases it is employed as a batch-type centrifuge. In general, it is used when higher centrifugal fields are required for separation. The rotating bowl of a tubular centrifuge consists of a long hollow tube (length many times its diameter) as shown schematically in Figure 1. For continuous separation the feed or material to be centrifuged enters at one end near the axis and is removed in two streams containing the separated material. In many cases the separation is not complete, and the separated fractions must be passed through the machine several times. Many different designs for the internal structure of the tube are employed, but, in general, radial vanes are used to bring the feed material up to speed and to slow down the separated streams before they are discharged. The centrifuge is driven by a high-speed motor or an air or steam turbine. The sedimentation takes place as the fluid flows from one end of the tube to the other. When the heavy material consists of very fine particles or molecules and the concentration is very low, the solid material is usually allowed to deposit on the wall. In this case the machine is operated as a batch centrifuge.
The tubular centrifuge is finding an increasing number of applications because of the high centrifugal fields that may be used (105g near the periphery in some cases). A few typical uses are as follows: (1) the purification of vaccines (uncentrifuged vaccines contain a large amount of nonessential and harmful material), (2) purification of lubricating and industrial oils, (3) clarification and purification of food products such as essential oils, extracts, and fruit juices, and (4) separation of immiscible liquids that cannot be separated by gravity.
Product features
The 2 Phase Centrifuge offers ultra-high separation factor and continuous processing capabilities, making it ideal for solid-liquid separation in a variety of industries. With the ability to perform two-phase and three-phase separations, this centrifuge allows for high recovery of sludge and efficient operation. Featuring a water-jacketed cooling system and optional adjustable rotate speed, this product is designed for robust and shock-proof operation, controlled by an intuitive touch-screen panel for ease of use.
Team strength
The 2 Phase Centrifuge is a powerful and reliable equipment that showcases team strength in its high separation factor and continuous operation capabilities. With a cohesive team behind its development, this centrifuge boasts exceptional performance in separating liquids and solids efficiently. Its high separation factor ensures maximum productivity, while its ability to operate continuously without interruptions underscores the team's dedication to quality and reliability. This product is a testament to the strength and unity of a team working together to create a cutting-edge solution for industrial separation processes. Experience the difference that team strength can make with the 2 Phase Centrifuge.
Why choose us
Team strength is at the core of our 2 Phase Centrifuge, ensuring high separation factor and continuous operation. Our expert team has carefully designed this centrifuge to deliver optimal performance and reliability. With a strong focus on innovation and precision engineering, we have created a product that exceeds industry standards. The seamless collaboration between our team members guarantees that every component functions seamlessly together, resulting in a highly efficient and effective centrifuge. Trust in our team's expertise to provide you with a top-of-the-line product that will meet all your separation needs with ease.
Tubular Continuous Centrifuge:
Tubular Continuous Centrifuge is a kind of centrifugal separation equipment with high separation factor, which is mainly used for solid-liquid separation and liquid-liquid-solid separation of industrial materials. Tubular bowl centrifuge has good separation effect, high output, small footprint and convenient operation. It is especially suitable for solid-liquid separation with low concentration, high viscosity, fine solid particles and small difference in specific gravity between solid and liquid.
GF Tubular Bowl Centrifuge Working principle: The motor transmits the power to the driven wheel through the transmission belt and the tension wheel, so that the bowl rotates around its own axis at high speed, forming a strong centrifugal force field. The material enters the drum from the liquid inlet at the bottom. Under the action of the centrifuge, the liquid phase with high density forms an outer ring, and the liquid phase with a low density forms an inner ring, and flows to the respective liquid outlets on the upper part of the bowl to be discharged. Trace solids It is deposited on the wall of the bowl and is manually discharged after the machine is shut down. |
GQ Tubular Bowl Centrifuge working principle: it is composed of body, transmission device, bowl, and liquid-inlet bearing seat of the liquid collection plate. The upper part of the bowl is a flexible main shaft, and the lower part is a damping floating bearing. Through the transmission belt, the tension pulley transmits the power to the passive pulley, so that the bowl rotates around its own axis at high speed, forming a strong centrifugal force field, and the material enters from the liquid inlet at the bottom. Under the action of centrifugal force, the solid phase particles in the liquid phase Since the density is greater than that of the liquid phase, it gradually moves to the inner wall of the bowl to form a sediment layer, and the clarified liquid is discharged from the upper discharge port. When the thickness of the sediment layer affects the clarity of the liquid phase, or reaches the rated slag capacity of the bowl, manually remove the sediment on the bowl wall after shutdown. |
There are two main series of tubular bowl centrifuge, GF and GQ. GF is 3-phase for liquid-solid-liquid separation; GQ is 2-phase for solid-liquid separation.
Features Ultra-High separation factor Continuous processing Two phase (liquid/solid) separation Three phase (liquid/solids/liquid) separation High recovery of sludge Water jacketed cooling system (optional) Rotate speed adjustable (optional) Intuitive touch-screen control panel Robust design and shock proof operation |  |
Applications
– Pharmaceutical
Collection of pharmaceutical intermediates, herb extracts, plant fibers and chlorella
– Food processing
Soy bean, fat, vegetable oil, starches, grains, gelatin, amino acids, soy sauce, reducing fat in milk
– Waste water treatment
Cleaning on straining waste water, leather waste water, petroleum tank sludge, waste oil
– Chemistry industry
Cleaning and collection of ink, paints, ammonia, barium, aluminum, zinc, activated charcoal and stainings
– The other fields
Milk fat processing, cosmetics, cod-liver oil, yeast processing, and many other separations of solution and collection of solids
 |  |
