Product Description
GF/ GQ45 tubular centrifuge is mainly used to clarify suspension liquid, separate emulsion or mix many kinds of liquids together in industries of biological products, chemical, pharmaceutical, petroleum, food or other lines, such as the purifying of the edible oil, the production of aseptic, the sediment of the biological products, the separating of the plasma, the purifying of the honey, the de-fatting of the lubricant, the extracting of the pectin and the extracting & separating of micro-powders, etc. The operation can be continuous or be intermittent. All contact parts are made of stainless steel. After the liquid flows into the centrifuge’s basket through the nozzle, by the centrifugal force within the basket, clarified liquid will be output through the top of the basket, and be collected, while the impurities are remained on the basket wall, and will be removed by manual after the machine is stopped.

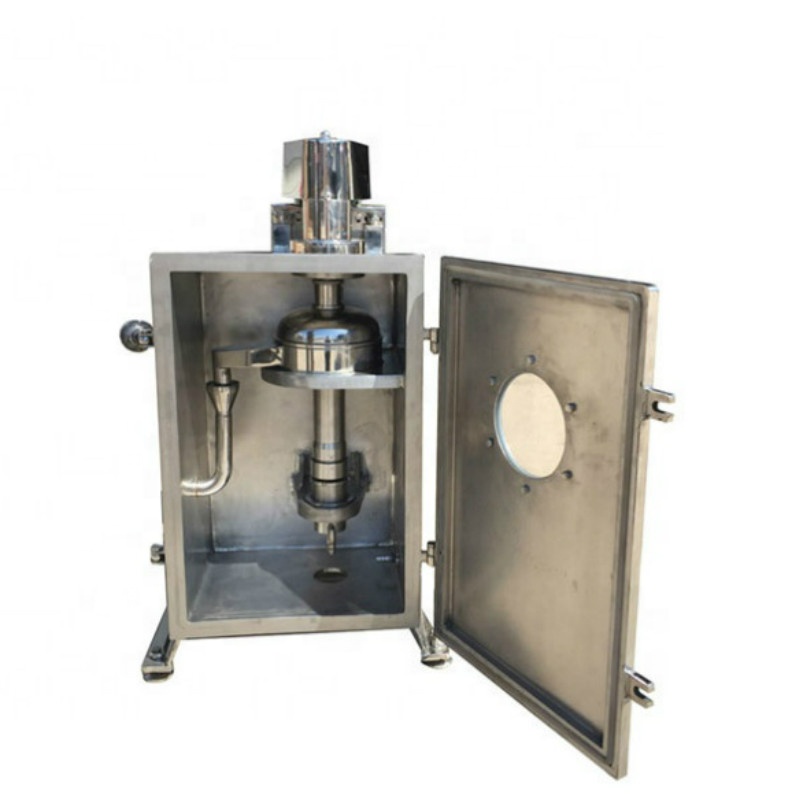

Structure and principle: The separator consists of machine body, driving part ,bowl, liquid collecting pan and liquid-in bearing seat etc. The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifugal force.

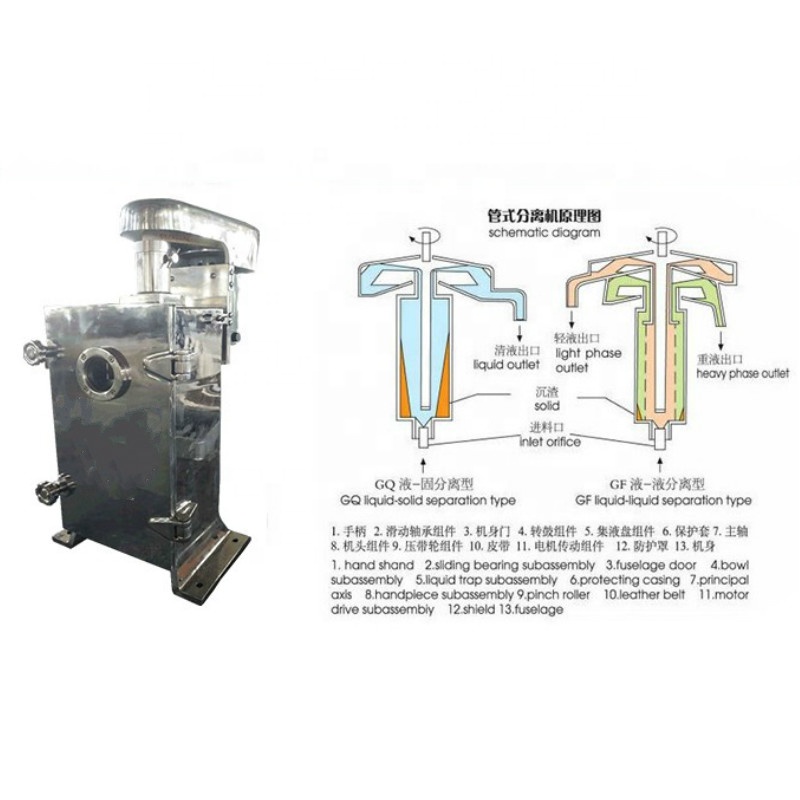

Structure and principle
GF-for separation:
Heavy liquid forms outer ring and light liquid forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little solid is settled on the wall of the bowl and discharged manually after the machine stops.
GQ-for clarification:
Heavy solid is deposited on the inner wall of the bowl，and forms the sludge. And it will be discharged by manual after the machine stops. The clear liquid flows out of outlet from the top of the bowl. It is mainly used for separating all kinds of suspension difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases.
Specification
Model | GQ/GF45 | Max separation factor | 19800 | Motor power(kw) | 0.4 |
Diameter(mm) | 45 | Inlet nozzle diameter(mm） | 2/3 | Machine dimension(mm) | 500*420*760 |
Height(mm) | 255 | Material inlet pressure (Mpa) | ≥0.05 | Machine weight(kg) | 120 |
Sedimentation volume(L) | 0.4 | Capacity(Water capacity)L | 100 | ||
Max speed(r/min) | 25000 | Motor model | 3 phase two pole motor |
Main technical features
1. The unique design of interior blade is more suitable for the isolation of the fermentation bacteria than the conventional
tubular separators. Equipped with reverse stop device, the residual mother liquid can be retained completely without loss once the machine stop.
2.With advantages of high separation factor and strong separation ability, It is applicable to separate and clarify the materials which is difficult to separate by ordinary centrifuge and all kinds of emulsion liquid such as transformer oil, lubricating oil, fuel oil, turbine oil, grease, dyes, and saponification separation and so on.
3.Simple structure in linear type ,easy in installation and maintation.
4.Adopting advanced world famous brand components in bearing parts, electric parts and operation parts.
5.Running in a high automatization and intellectualization,no pollution
6.Simple to set up, use and clean for minimal down-time between separations
7. No replacement membranes or costly disposables
8.3-phase electric motors provide power for rapid acceleration and quieter operation.
9.Small footprint.
tubular separators. Equipped with reverse stop device, the residual mother liquid can be retained completely without loss once the machine stop.
2.With advantages of high separation factor and strong separation ability, It is applicable to separate and clarify the materials which is difficult to separate by ordinary centrifuge and all kinds of emulsion liquid such as transformer oil, lubricating oil, fuel oil, turbine oil, grease, dyes, and saponification separation and so on.
3.Simple structure in linear type ,easy in installation and maintation.
4.Adopting advanced world famous brand components in bearing parts, electric parts and operation parts.
5.Running in a high automatization and intellectualization,no pollution
6.Simple to set up, use and clean for minimal down-time between separations
7. No replacement membranes or costly disposables
8.3-phase electric motors provide power for rapid acceleration and quieter operation.
9.Small footprint.
Points for Operating the Tubular Separator
* When the percentage of impurities or solids in the liquid is less than 0.5%, the ideal separation effect will be realized. If
the percentage is higher than 0.5%, the solution should be clarified first
* High groove is used to feed materials. If the liquid is of large viscosity, it can also be pumped.
* Measurement for proper materials inlet pressure: when materials are fed by the nozzle into the separator, the proper inlet
pressure is depended on property of materials the nozzle into the separator,to spray materials at least half up onto the drum.
Low pressure will cause part of the liquid not fed into drum and slide into the bearing seat at the bottom of the drum to
outflow from overflow mouth, while the high pressure will affect the separation quality and lead to the vibration of the
machine.
* The inside diameter of feeding tube shall be large enough to be controlled by valve and be convenient for user to adjust
according to flow rate and output.
* The separator is equipped with nozzle in different diameter, to fit different the separation quality and yield.If small
production with high quality, the small nozzle is used, and vice versa.
Suggestion from SHENZHOU
Earned high reputation and good feedback from global customer among all of our products, High-speed Tubular Separator is capable of applied in a variety of biological processes from cell harvesting and clarify to separation of chemical, food, blood and pharmaceuticals.
High performance is consistently achieved in continuous, semi-continuous or batch operations. Include a range of sizes from research to production, our tubular separator provide an efficient and cost-effective technology to separate from one to several thousand liters of biological cultures and other mixtures. For extremely high solids concentrations, drum centrifuge for high performance separations can be supplied.
* When the percentage of impurities or solids in the liquid is less than 0.5%, the ideal separation effect will be realized. If
the percentage is higher than 0.5%, the solution should be clarified first
* High groove is used to feed materials. If the liquid is of large viscosity, it can also be pumped.
* Measurement for proper materials inlet pressure: when materials are fed by the nozzle into the separator, the proper inlet
pressure is depended on property of materials the nozzle into the separator,to spray materials at least half up onto the drum.
Low pressure will cause part of the liquid not fed into drum and slide into the bearing seat at the bottom of the drum to
outflow from overflow mouth, while the high pressure will affect the separation quality and lead to the vibration of the
machine.
* The inside diameter of feeding tube shall be large enough to be controlled by valve and be convenient for user to adjust
according to flow rate and output.
* The separator is equipped with nozzle in different diameter, to fit different the separation quality and yield.If small
production with high quality, the small nozzle is used, and vice versa.
Suggestion from SHENZHOU
Earned high reputation and good feedback from global customer among all of our products, High-speed Tubular Separator is capable of applied in a variety of biological processes from cell harvesting and clarify to separation of chemical, food, blood and pharmaceuticals.
High performance is consistently achieved in continuous, semi-continuous or batch operations. Include a range of sizes from research to production, our tubular separator provide an efficient and cost-effective technology to separate from one to several thousand liters of biological cultures and other mixtures. For extremely high solids concentrations, drum centrifuge for high performance separations can be supplied.
Applications
Tubular Separator is mainly used for separating all kinds of suspension which is difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. such as clarification of herbs plants extracts, various medicine liquor, liquid medicine, oral liquid, the extraction of paint, dye, as well as various proteins, alga, fruit gels, and purification of rubber solution, coal tar, graphite, saponin, pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, and latex solution, enzyme (SOD) of oxide, various kinds of albumens, the glucoside of the soap, etc.

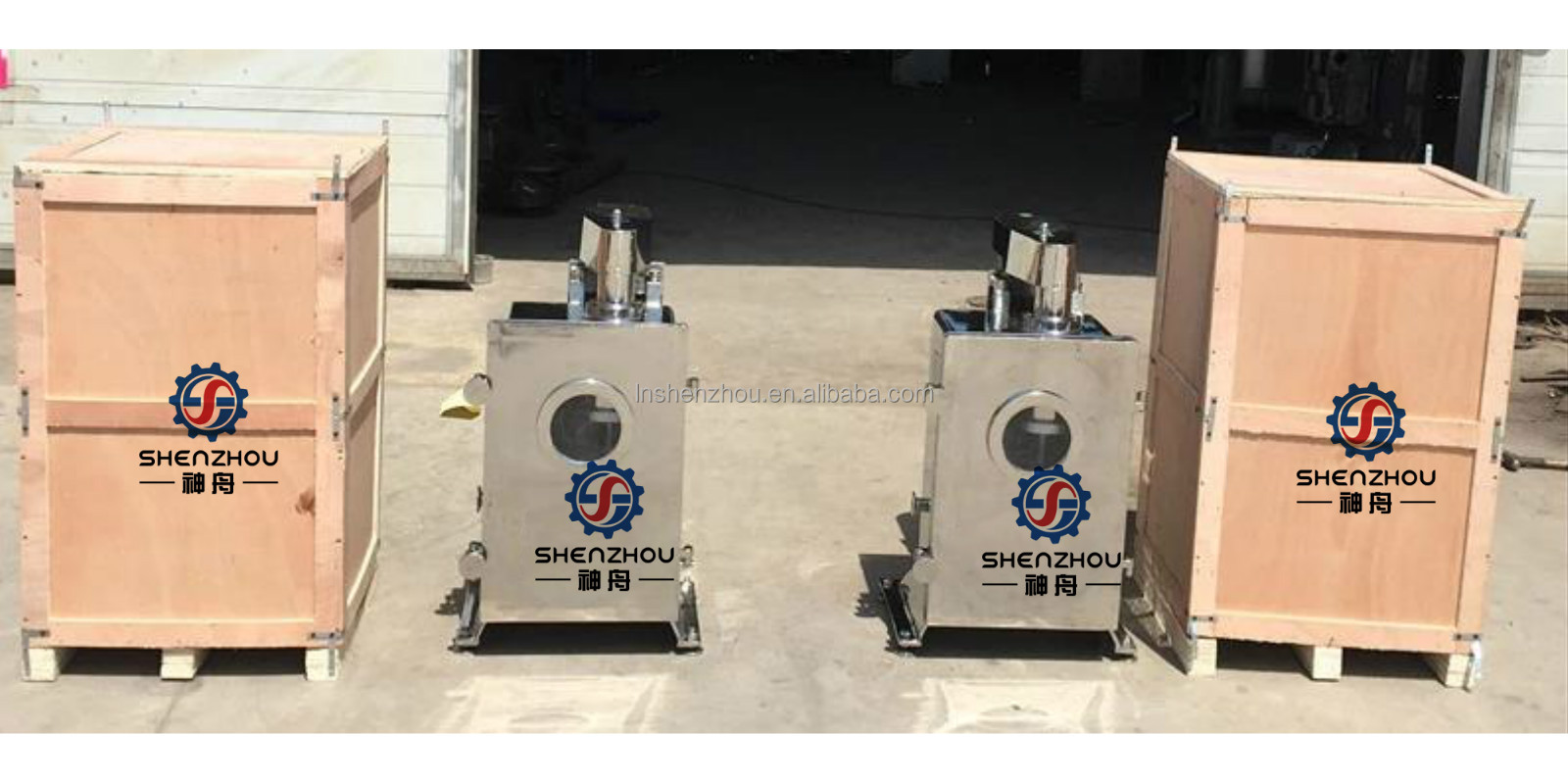

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Why Choose Us?
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so on At the same time,our product with best prices and good quality,welcome to Shenzhou!
our service
Pre-sale Service
1. Provide 24-hour technical consulting reply;
2. Provide professional quoted price;
3. Provide detailed product performance specification;
4. According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper
product types;
5. Provide other corollary equipment according to client requirements.
1. Provide 24-hour technical consulting reply;
2. Provide professional quoted price;
3. Provide detailed product performance specification;
4. According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper
product types;
5. Provide other corollary equipment according to client requirements.
In-sale Service
1. Begin to supervise from raw material, its qualified rate can reach to 100%;
2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%;
3. Provide product’s inspection record of key junctures to customers;
4. Provide production schedule photos to customers at regular intervals;
5. Package and transport products strictly accordance with export standard;
6. Provide transportation schedule information to clients timely.
After-sale Service
1. Provide targeted installation video;
2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
5. If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour
and provide solution or send staff to spot within 24 hours after receiving maintenance notification.
6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information;
7. Provide assistant service if product is damaged during transportation.
1. Begin to supervise from raw material, its qualified rate can reach to 100%;
2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%;
3. Provide product’s inspection record of key junctures to customers;
4. Provide production schedule photos to customers at regular intervals;
5. Package and transport products strictly accordance with export standard;
6. Provide transportation schedule information to clients timely.
After-sale Service
1. Provide targeted installation video;
2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
5. If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour
and provide solution or send staff to spot within 24 hours after receiving maintenance notification.
6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information;
7. Provide assistant service if product is damaged during transportation.
FAQ
1. What certificates do you have?
We can provide CE, ISO 9001, etc
2. What is the warranty period of the equipment?
Normally 1 year warranty.
3. Can we visit your factory?
Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by
telephone video conference.
4. What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
5. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.
We can provide CE, ISO 9001, etc
2. What is the warranty period of the equipment?
Normally 1 year warranty.
3. Can we visit your factory?
Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by
telephone video conference.
4. What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
5. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.
